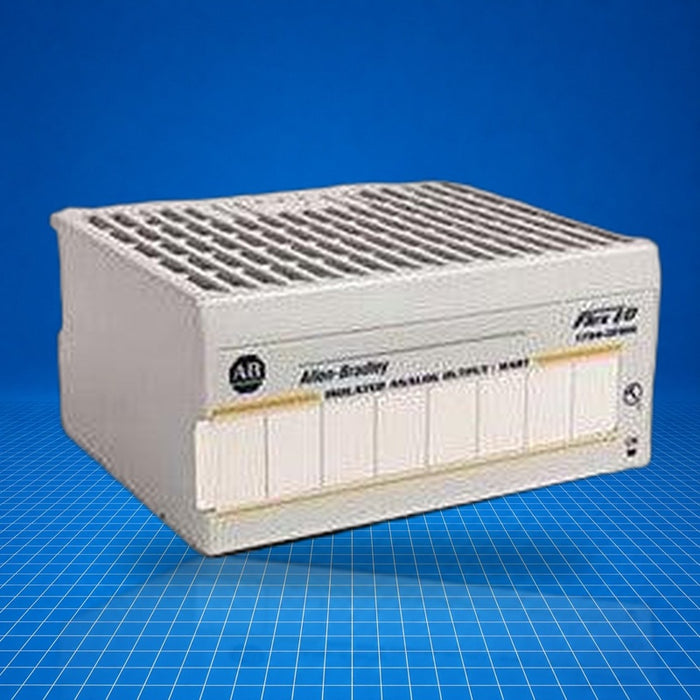

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1794-OE12 Allen-Bradley
Original price
$572.00
-
Original price
$1,344.75
Original price
$572.00
$572.00
-
$1,344.75
Current price
$572.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1794-OE12 is an Allen-Bradley Flex I/O analog output module providing twelve single-ended outputs, configurable to ±10 V voltage or 0-20 mA current per channel. It mounts on the FLEX backplane, enabling hot-swap replacement without disturbing wiring. Suitable for distributed control systems requiring multi-channel analog outputs, it's common in industrial process control, OEM machine I/O expansion, and panel-mounted signal generation applications. 1794-OE12 integrates into the Rockwell Flex I/O family and supports both voltage and current output modes.
Best Suited For
- Distributed analog signal generation in process control
- OEM machinery I/O expansion
- Hot-swappable module replacement in live systems
- Mixed voltage/current analog output applications
Outputs
12 single-ended
Output types
±10 V or 0-20 mA
Flexbus current
80 mA
Power supply
24 V DC
Technical Specifications
I/O & Electrical
Number of outputs
12 single-ended, non-isolated
Output voltage terminal
0 V until configured; +10 V (user configurable)
Output current terminal
0 mA until configured; 0-20 mA or 4-20 mA (user configurable)
Voltage resolution
16-bit, 320 µV/cnt
Current resolution
0.641 µA/cnt
Max voltage output load
3 mA
Resistive load for current output
0…750 Ω
Communication & Power
Flexbus current
80 mA
Input voltage
24 V DC
Physical & Environmental
Operating temperature
-20…60 °C (-40…185 °F)
Weight
0.11 kg (0.25 lb)
