1794-OE4XT Allen-Bradley

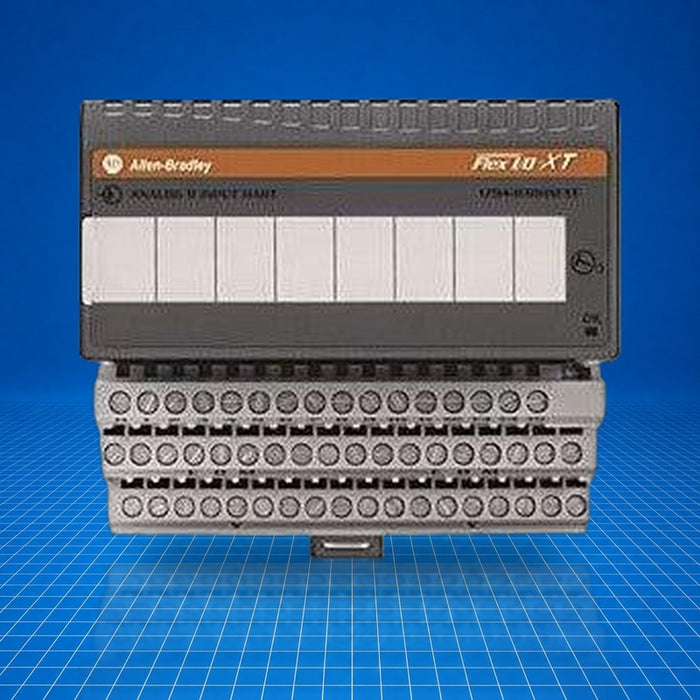

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1794-OE4XT Allen-Bradley

$0.00 - $893.75
$893.75
$0.00 - $893.75
$893.75
Surplus - Tested (With Warranty)
Need a Specific Revision?
$893.75
4 in stock
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1794-OE4XT is an Allen-Bradley Flex I/O XT analog output module offering four single-ended analog outputs. It operates within the Flex, Flex Ex, and Flex XT distributed I/O platforms, supplying ±10 V or 0…20 mA signals to field devices. This module typically installs on DIN-rail terminal bases and is used in standard industrial control systems for process control, actuator drive, loop output, or analog signal generation. It ensures compact and scalable analog control within distributed architectures.

Best Suited For

  • Edge-of-machine analog control
  • Distributed I/O systems (Flex/Flex XT)
  • Analog control of proportional valves or actuators
  • Retrofitting analog outputs in existing Flex installations
Analog outputs
4 single-ended
Output types
±10 V, 0-20 mA
Resolution
12 bit + sign (0.156 mV/ct, 0.320 µA/ct)
External supply
24 V DC (10.5…31.2 V DC)
Operating temperature
-20…+70 °C (-4…+158 °F)

Technical Specifications

I/O & Electrical

Analog outputs
4 single-ended
Output types
±10 V; 0…20 mA
Resolution
12 bit + sign; 0.156 mV/count; 0.320 µA/count
Isolation voltage
50 V continuous; tested 850 V DC (I/O to system); no isolation between channels

Communication & Power

External DC supply
24 V DC nominal (10.5…31.2 V DC)
FlexBus current
15 mA @ 5 V DC
Power dissipation, max
4.5 W @ 31.2 V DC
Thermal dissipation, max
13.6 BTU/hr @ 31.2 V DC

Physical & Environmental

Temperature, operating
-20…+70 °C (-4…+158 °F)
Temperature, storage
-40…+85 °C (-40…+185 °F)
Vibration (operating)
5 g @ 10…500 Hz
Shock (operating)
30 g
Shock (non-operating)
50 g

Certifications

UL Listedc-UL-usCEC-TickATEX

c-UL-us UL Listed Industrial Control Equipment; UL Listed for Class I, Division 2 Group A, B, C, D Hazardous Locations; CE (EMC: EN 61326-1, EN 61000-6-2, EN 61000-6-4, EN 61131-2); C-Tick; ATEX (II 3 G Ex nA IIC T4 Gc).
