1794-OF4IXT Allen-Bradley
Original price
$1,872.50
-
Original price
$1,875.00
Original price
$1,872.50
$1,872.50
-
$1,875.00
Current price
$1,872.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

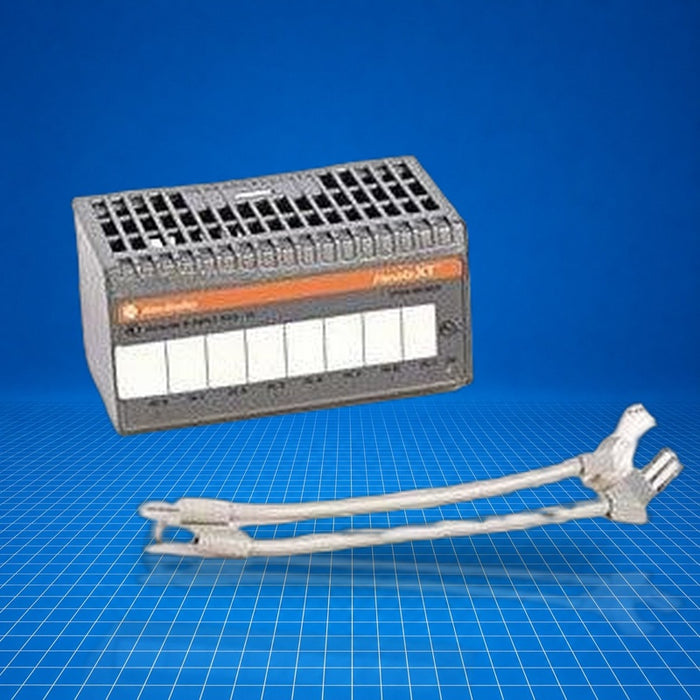

The 1794-OF4IXT is an Allen-Bradley Flex XT series isolated analog output module designed for use within a Flex I/O distributed I/O system. It provides four channels of isolated analog output (current or voltage), facilitating signal transmission to actuators or control devices while maintaining electrical separation. The module plugs into a FlexBus terminal base to extend control capability in industrial automation systems. Typical applications include remote analog control, long-distance signal transmission, and modular field I/O expansion. Part number 1794-OF4IXT.
Best Suited For
- Distributed analog output in Flex I/O XT systems
- Isolated voltage or current signal control (±10 V, 0-10 V, 4-20 mA)
- Remote module installation with isolation from main controller
- Harsh environments within -20 °C to +70 °C range
Outputs
4 isolated analog channels
Resolution
15-bit (Ø 0.32 mV/count or 0.000656 mA/count)
Output types
±10 V, 0-10 V, 0-5 V, ±5 V; 4-20 mA
Update rate
2.5 / 5.0 / 7.5 ms per channel
Technical Specifications
I/O & Electrical
Output channels
4 isolated outputs
Output voltage range
±10 V, 0-10 V, 0-5 V, ±5 V
Output current range
4-20 mA
Resolution
15-bit (0.32 mV/count or 0.000656 mA/count)
Update rate
2.5 / 5.0 / 7.5 ms
Current load on voltage output
3 mA max.
FlexBus current
50 mA
Isolation voltage
120 V continuous
Communication & Power
Power supply
24 V DC nominal
Thermal dissipation
6.8 BTU/hr @ 31.2 V DC max.
Supply current (estimated)
210 mA @ 24 V DC
Physical & Environmental
Operating temperature
-20 °C to +70 °C
Certifications
China CCCAustralian RCMRegistro Italiano NavaleAmerican Bureau of ShippingATEXCEIECExKorean KCEurasian Economic CommunityUL ListedUL Listed HazardousUKCAMorocco DOCUK EX Certificate
