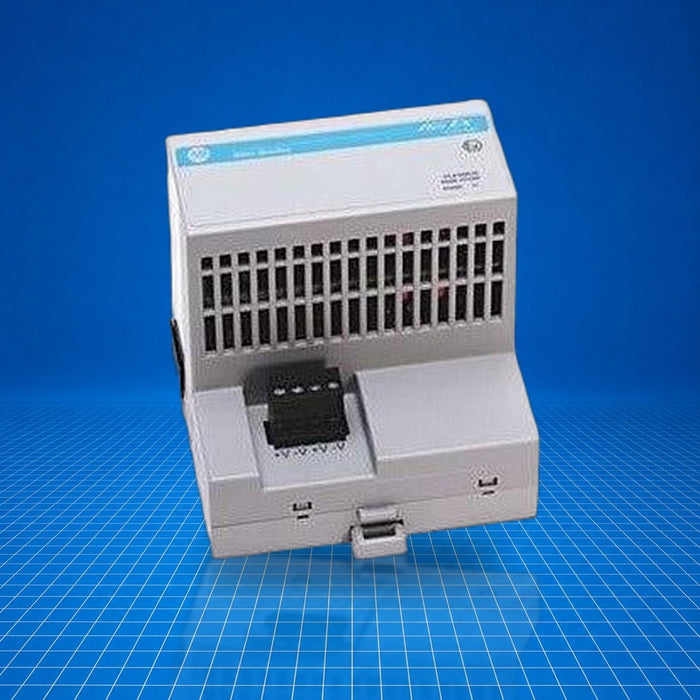

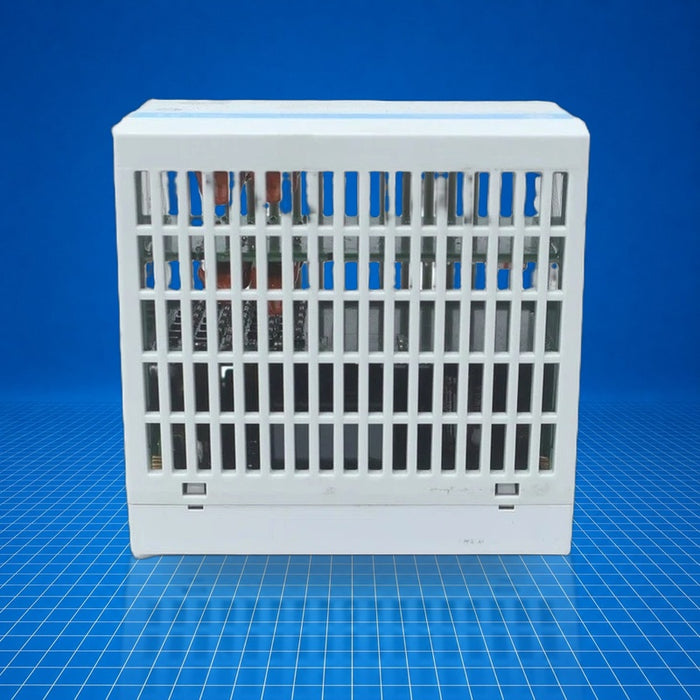

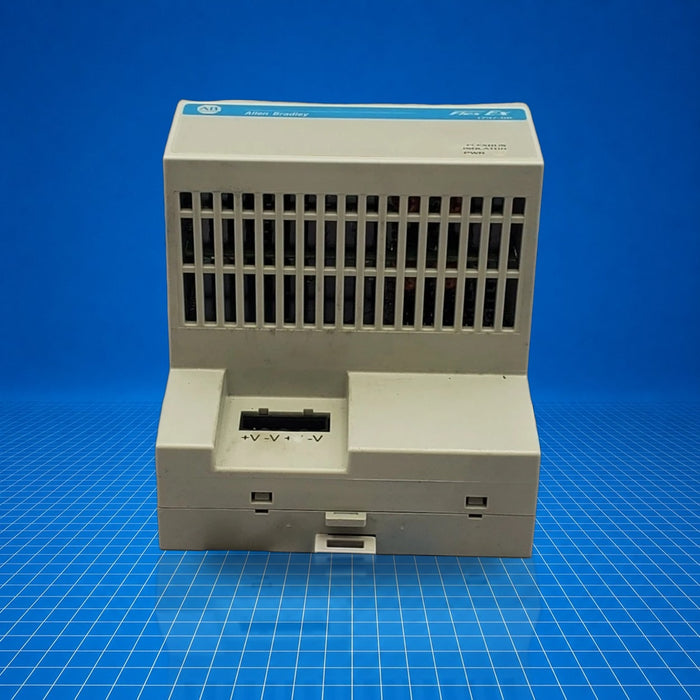

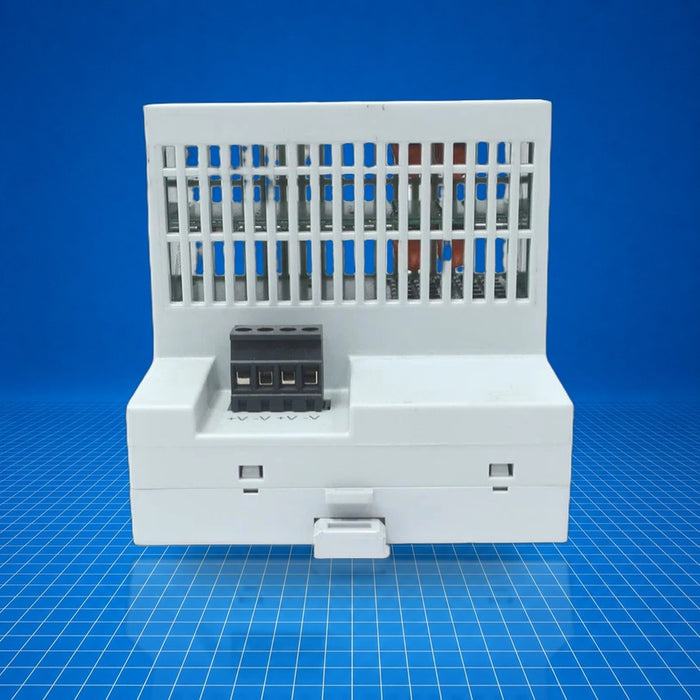

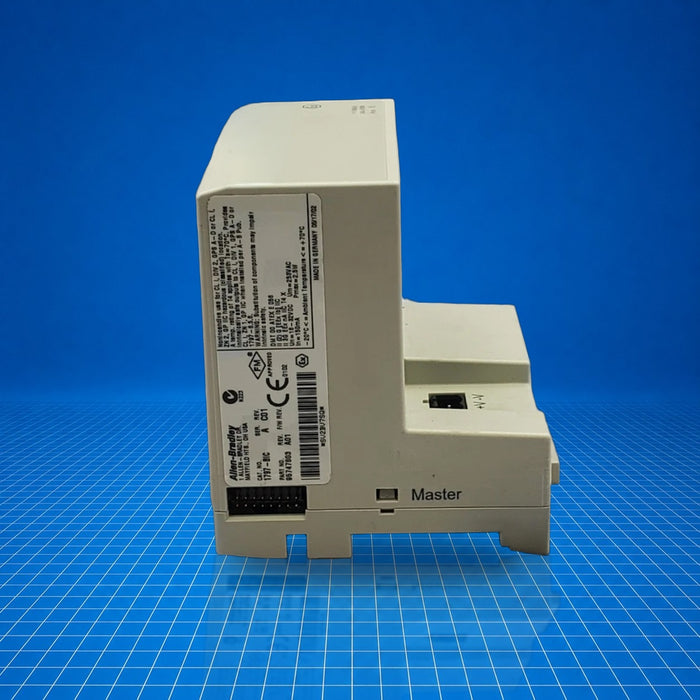

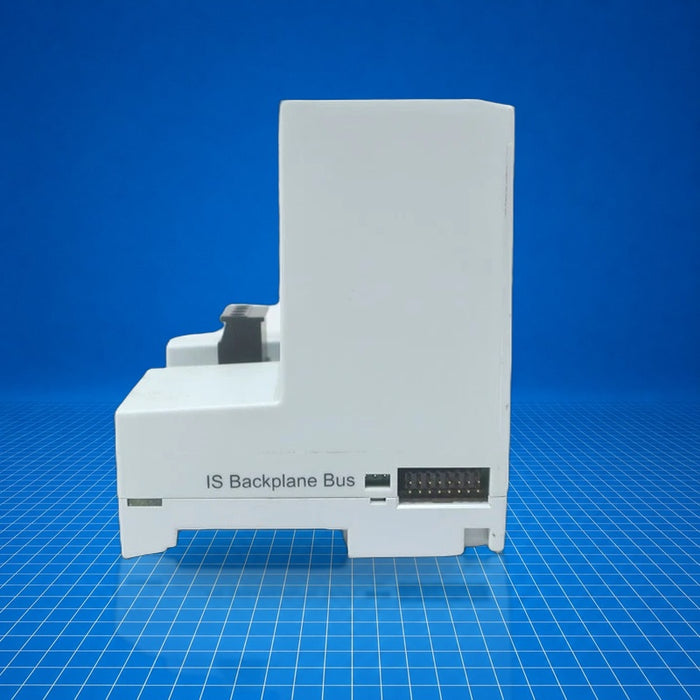

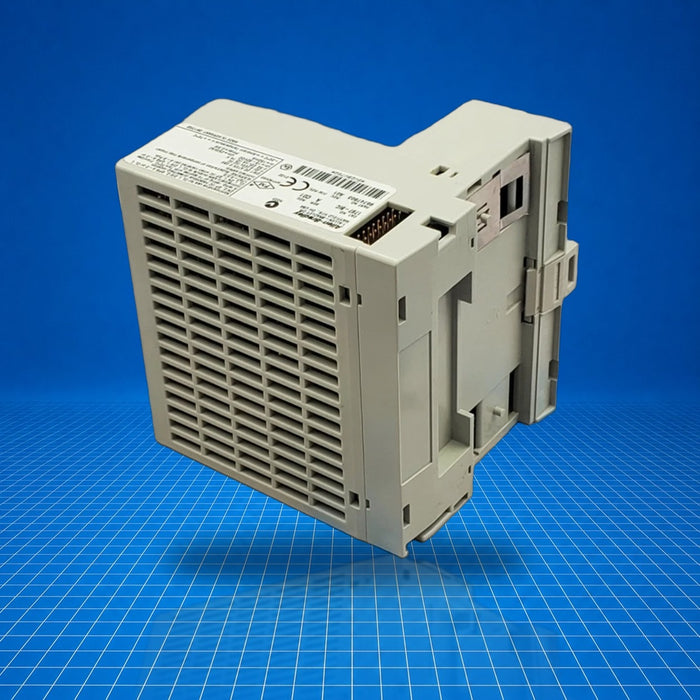

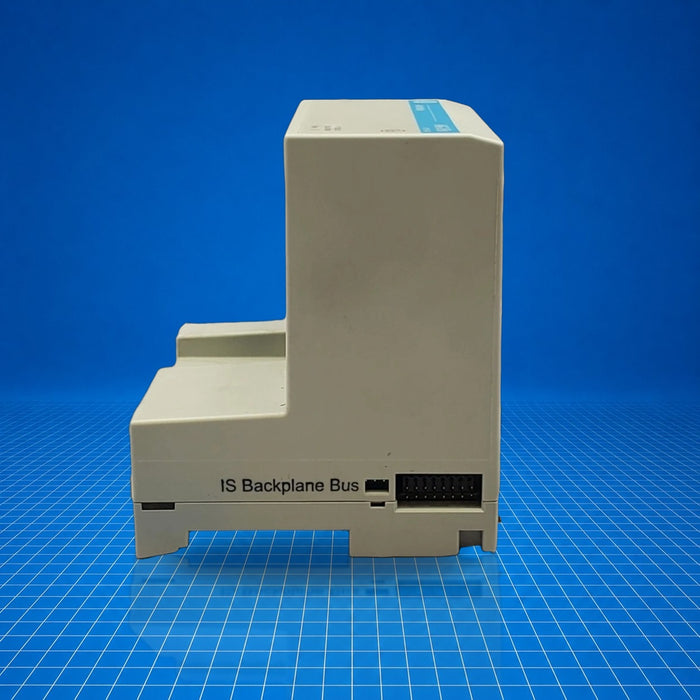

1797-BIC Allen-Bradley
Original price
$0.00
-
Original price
$3,059.98
Original price
$3,059.98
$0.00
-
$3,059.98
Current price
$3,059.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

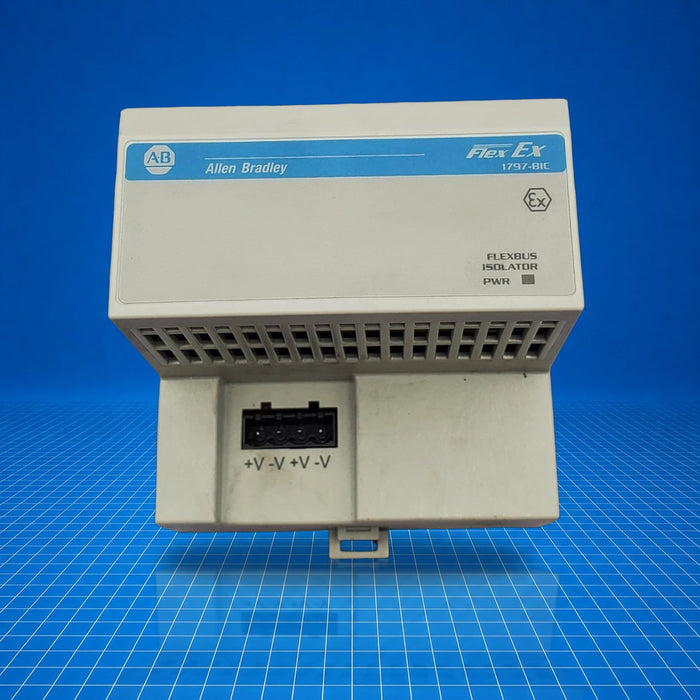

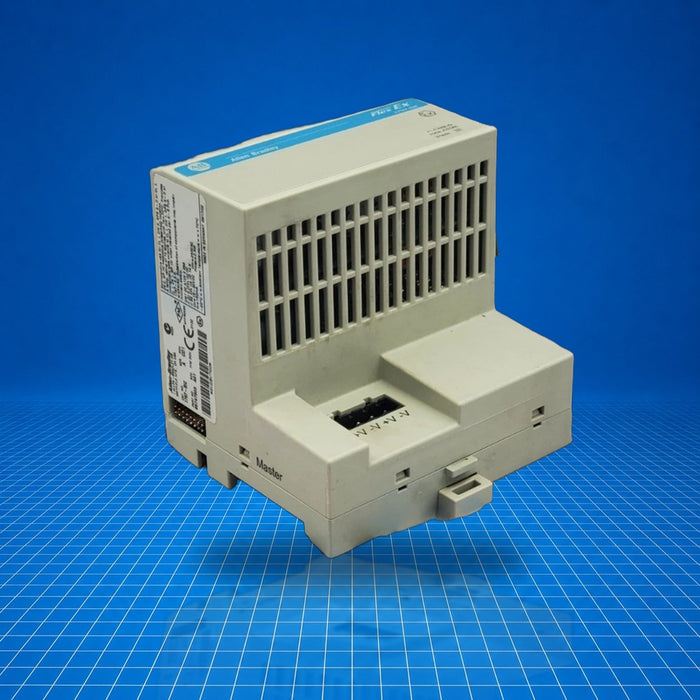

The Allen-Bradley 1797-BIC is a FLEX Ex Bus Isolator module in the Flex I/O 1797 family. It provides intrinsic-safety isolation between Flex Ex modules and standard Flex I/O modules on the same I/O group. It is typically used in industrial control systems where standard and intrinsically-safe areas interface on the same backplane. 1797-BIC is suitable for use in hazardous locations under Flex Ex bus configurations.
Best Suited For
- Flex Ex backplane systems requiring intrinsic-safety isolation
- Interfacing standard Flex I/O modules with Flex Ex modules
- Hazardous-area installations where galvanic isolation is required
- DIN-rail mounted control enclosures
Input voltage
18…32 V DC
Max Flex Ex modules supported
8
Power consumption
0.15 A @ 18…32 V DC
Operating temperature
-4 to 158 °F (-20 to 70 °C)
Technical Specifications
I/O & Electrical
Flex Ex modules supported
Eight (8)
Intrinsic-safe output voltage (CENELEC)
Uo < 5.75 V DC
Intrinsic-safe output current (CENELEC)
Io < 400 mA
Intrinsic-safe output power (CENELEC)
Po < 2.05 W
Communication & Power
Input voltage range
18…32 V DC
Supply current
0.15 A
Power dissipation
2.1 W
Thermal dissipation
7.2 BTU/hr
Physical & Environmental
Mounting
DIN-rail
Operating temperature
-4 to 158 °F (-20 to 70 °C)
Enclosure rating
IP20 (module); IP54 required for Zone 2 if exposed
Weight
1.38 lbs (0.62 kg)
Certifications
CEATEX (per EN 60079-11)cULus
Associated apparatus per EN 60079-11 for intrinsic safety; suitable for Class I, Division 1 & 2, Zone 1 & 2 hazardous locations.
