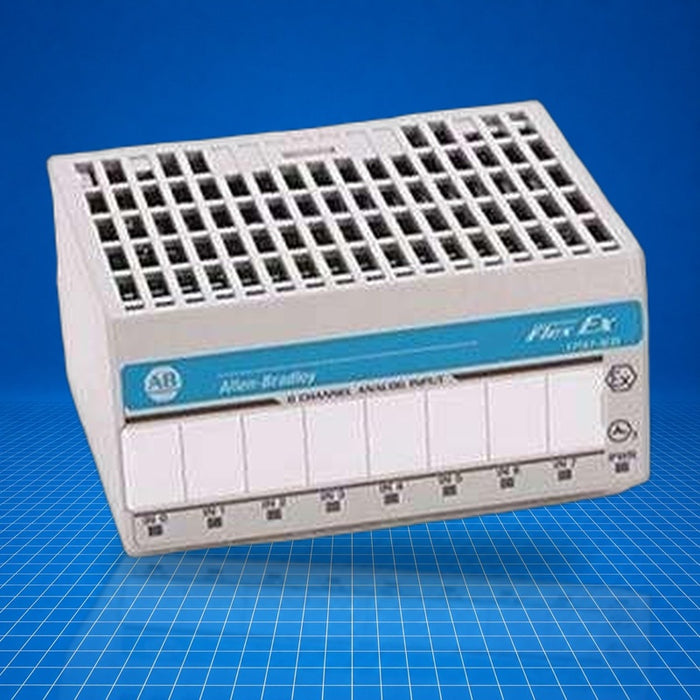

1797-IE8 Allen-Bradley
Original price
$1,272.50
-
Original price
$8,977.50
Original price
$1,272.50
$1,272.50
-
$8,977.50
Current price
$1,272.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1797-IE8 is an Allen-Bradley FLEX Ex analog input module in the Flex I/O 1797 family. It provides eight non-isolated single-ended analog input channels, each configurable for current inputs typically 4-20 mA. It integrates into a distributed control system via a Flex I/O terminal base and communicates through adapters (e.g., Ethernet/IP). It is suited for intrinsically safe installations in hazardous industrial environments and is commonly used for process signal monitoring in oil & gas, chemical, and other hazardous-area installations.
Best Suited For
- Intrinsic safety applications in hazardous zones (Class I Division 1/Zone 1)
- Distributed analog signal acquisition near sensor arrays
- Retrofitting older Flex Ex architectures
- Modular I/O expansion in process control systems
Analog inputs
8 non-isolated channels
Resolution
16 bits
Power dissipation
5.2 W
Thermal dissipation
17.75 BTU/hr
Functional data range
>15 V @ 22 mA (>21.5 V @ 0 mA)
Technical Specifications
I/O & Electrical
Input voltage/functional range
>15 V @ 22 mA; >21.5 V @ 0 mA (per channel)
Input type
Single-ended, non-isolated
Current input
0-20 mA and 4-20 mA (configurable)
Communication & Power
Resolution
16 bits
Data format
Configurable
Module field-side power consumption
7.5 W
Physical & Environmental
Weight
0.26 kg (approx. 0.56 lb)
Operating temperature
-20…70 °C (-4…158 °F)
Hazardous area rating
Intrinsic safety: Ex ia IIB/IIC T4; AEx ia IIC T4; Class I, II, III Div 1 Gr A-G T4; IS module type Ex ib IIB/IIC T4 (from distributor)
Indicators
8 red fault LEDs; 1 green power LED
