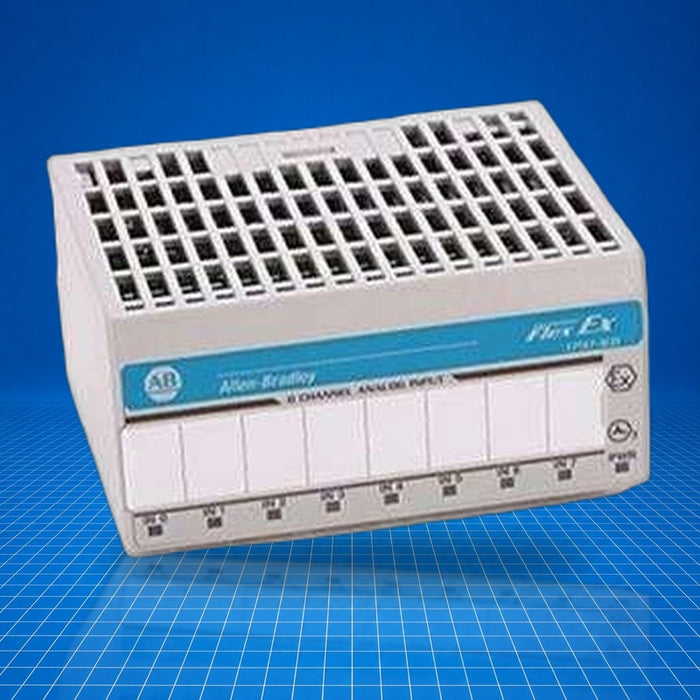

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1797-IE8H Allen-Bradley

Name: 1797-IE8H Allen-Bradley
Brand: Allen Bradley
SKU: 1797-IE8H
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley 1797-IE8H is a Flex Ex I/O module in the 1797 series, providing eight intrinsically-safe analog input channels with HART protocol compatibility. It mounts on a terminal base within Flex Ex I/O distributed control systems, collecting analog current signals (e.g. 4-20 mA) from hazardous-area field devices. Commonly used in process control, petrochemical, and intrinsically safe hazardous environments, the 1797-IE8H enables field-device monitoring with integrated diagnostics.

Best Suited For

Flex Ex I/O systems in hazardous zones
Analog current input monitoring (HART)
Field-device status monitoring in process control
Class I Division 1 & 2 installations

Analog inputs

8

Resolution

16 bits

Functional data range

15 V @ 22 mA

Power consumption

7.5 W

Power dissipation

5.2 W

Technical Specifications

I/O & Electrical

Number of inputs

8

Input type

Single-ended non-isolated

Resolution

16 bits

Functional data range

15 V @ 22 mA

Communication & Power

Module field-side power consumption

7.5 W

Power dissipation

5.2 W

Thermal dissipation

17.75 BTU/hour

Physical & Environmental

Weight

0.75 lbs (0.34 kg)

Operating temperature

-20 °C to 70 °C

Relative humidity

5 - 95 % (non-condensing) (medium-confidence)

Certifications

IS / Ex iaClass I Division 1

Intrinsically Safe ratings: Ex ia IIB/IIC T4, AEx ia IIC T4; Class I, II, III Division 1 Group A-G T4; Ex ib IIB/IIC T4, AEx ib IIC T4; Class I Division 1 Group A-D T4 (medium-confidence).
