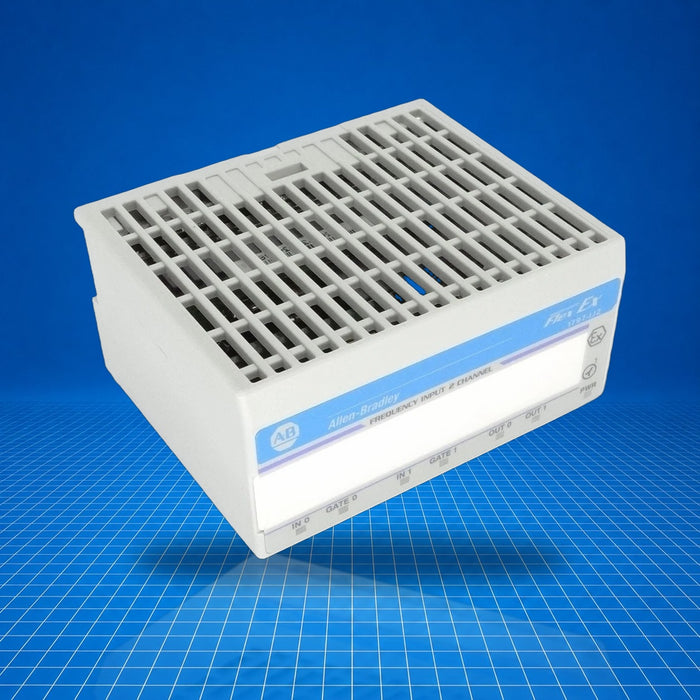

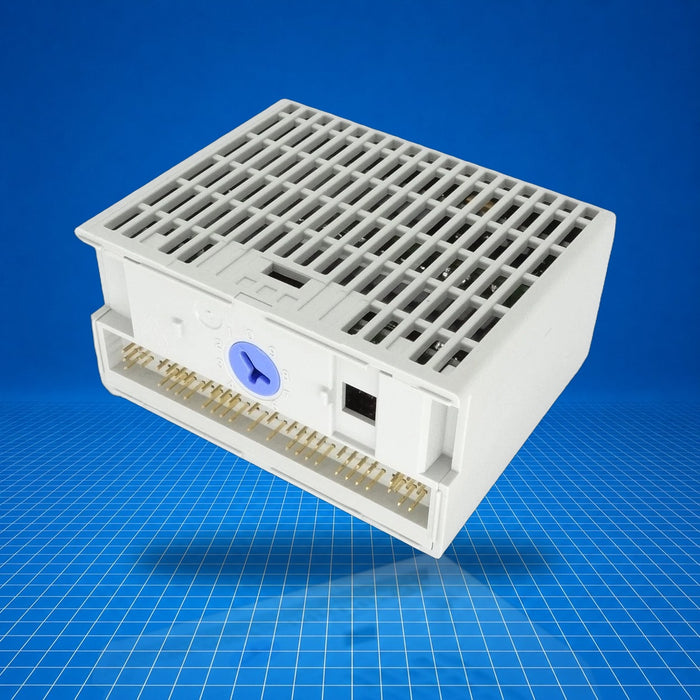

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1797-IJ2 Allen-Bradley
Original price
$0.00
-
Original price
$3,557.73
Original price
$3,557.73
$0.00
-
$3,557.73
Current price
$3,557.73
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1797-IJ2 is a Flex I/O (FLEX Ex) 2-point frequency input module produced by Allen-Bradley. It belongs to the 1797 FLEX Ex distributed I/O platform designed for hazardous-area use and intrinsically safe terminal bases. The module monitors two channels for frequency or gate input signals and provides local alarming. Typical industrial applications include monitoring flowmeters, shaft encoders, or other rotating-equipment sensors in hazardous environments. The 1797-IJ2 module requires a 1797-TB3/-TB3S terminal base and integrates into Flex I/O systems within broader control systems.
Best Suited For
- Monitoring flowmeters in hazardous areas
- High-speed encoder frequency acquisition in C1/D1 zones
- Distributed I/O in FLEX Ex networks
- Applications requiring intrinsically safe frequency inputs
Channels
2
Selectable input thresholds
3 V or 6 V (flowmeter); 50 mV or 500 mV (magnetic)
Update interval
≤ 4 ms via backplane
Requires terminal base
1797-TB3 or TB3S
Technical Specifications
I/O & Electrical
Number of input channels
2
Flowmeter input threshold
3 V or 6 V (selectable)
Flowmeter input available voltage
< 15 V / 20 mA
Magnetic pickup input threshold
50 mV or 500 mV (selectable)
Backplane update interval
≤ 4 ms
Communication & Power
Terminal base required
1797-TB3 or 1797-TB3S
