1799-ZCIOV Allen-Bradley
Original price
$0.00
-
Original price
$783.75
Original price
$783.75
$0.00
-
$783.75
Current price
$783.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

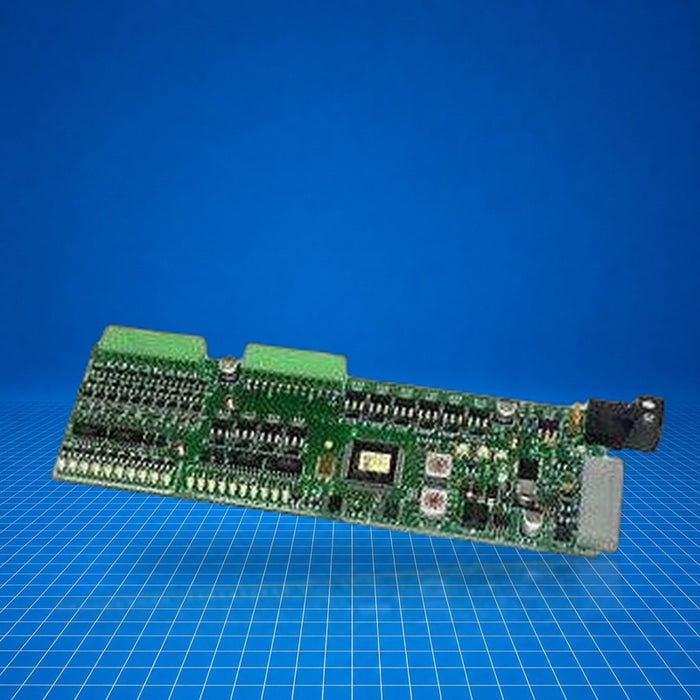

The Allen-Bradley 1799-ZCIOV is a Zone Control I/O module in the 1799 Embedded I/O product family. It provides 10 sinking or sourcing inputs and 10 sourcing outputs with DeviceNet communication and internal DeviceLogix logic. Typically used in machine-embedded applications where distributed I/O with local interlocking and simplified wiring via zone control is required. The module operates on 24 V DC auxiliary power and integrates into DeviceNet networks for control and monitoring.
Best Suited For
- Machine-embedded distributed I/O in tight spaces
- DeviceNet-based control networks
- Applications requiring local zone interlocking via DeviceLogix
- Systems replacing legacy 1799 Zone cards (discontinued)
I/O points
20
Inputs / Outputs
10 sinking or sourcing inputs / 10 outputs
Communication
DeviceNet
Auxiliary power
24 V DC
Technical Specifications
I/O & Electrical
Inputs per block
10 sinking or sourcing, Type 1 + compatible
Input Off-state voltage/current
≤ 5 V DC, 1.5 mA
Input On-state voltage/current
10 - 30 V DC, 2-11 mA
Outputs per block
10 sinking or sourcing, 0.5 A, short-circuit protected, pilot duty
Output On-state voltage drop
≤ 250 mV
Output On-state current
0.5 A
Off-state leakage
≤ 20 µA
Card current (all outputs on)
≤ 4.0 A
Surge current (10 ms, repeatable every 2 s)
≤ 1.0 A
Communication & Power
DeviceNet power, voltage/current
11 - 25 V DC, ≤ 125 mA
DeviceNet power circuit type
Class 2
Auxiliary power, voltage/current
10 - 30 V DC, 100 mA (all outputs off) to 4.0 A (all outputs on)
Auxiliary supply rating
Isolated outputs limited to 200 VA per ungrounded output line
Power consumption
3.0 VA
Physical & Environmental
Operating temperature
-10 °C to 60 °C (14 to 140 °F)
Storage temperature
-40 °C to 85 °C (-40 to 185 °F)
Relative humidity
5 to 95% non-condensing
Dimensions (H×W×D)
1.0 × 2.0 × 6.4 in (26 × 51 × 163 mm)
Weight
0.56 lbs (0.26 kg)
Certifications
cURusCEC-TickDeviceNet
