Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

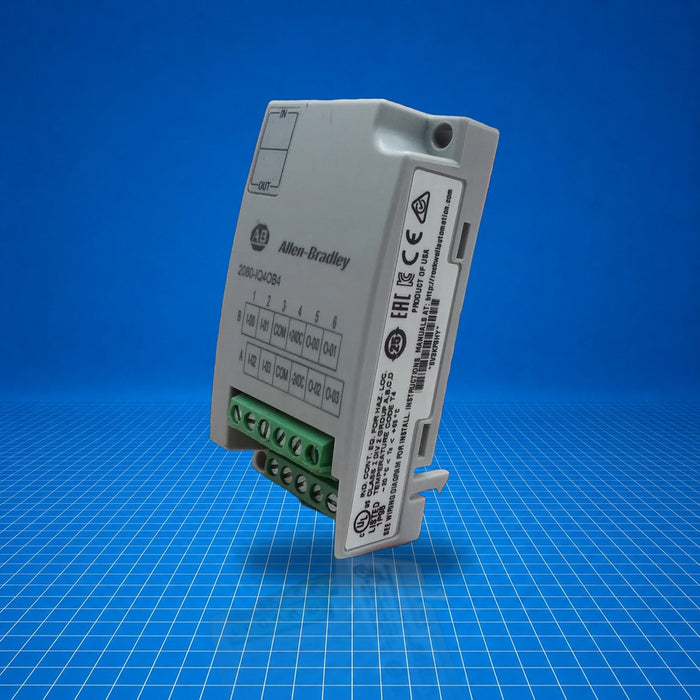

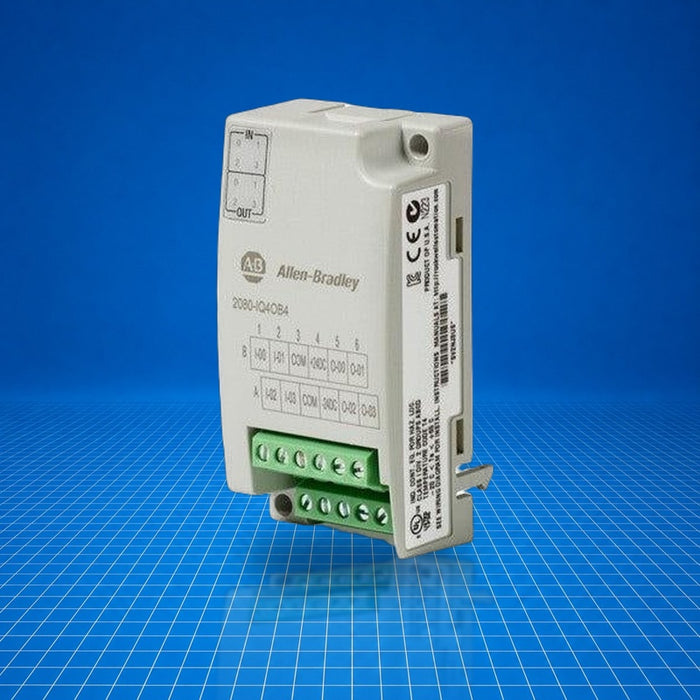

The 2080-IQ4OB4 is an Allen-Bradley Micro800 plug-in module combining four sinking/sourcing inputs and four sourcing outputs on a compact DIN-rail mount interface. It extends Micro800 controllers (Micro820, Micro830, Micro850, Micro870) by providing both digital input and output channels in a single add-on module. Commonly used in machine control and compact automation applications, it supports mixed input/output integration without expanding the base unit's footprint. The part number 2080-IQ4OB4 identifies this exact module.
Best Suited For
- Micro800 controller I/O expansion
- Mixed input/output applications
- Compact machine-level automation
- Adding digital I/O without panel space increase
Inputs/Outputs
4 inputs + 4 outputs
Input type
sink/source 12/24 V DC (IEC3)
Output type
source 12/24 V DC
Operating temperature
-20…65 °C
Technical Specifications
I/O & Electrical
Number of inputs
4
Number of outputs
4
On-state voltage (input) min
9 V DC
On-state voltage (input) max
30 V DC
On-state current (input) nom
3 mA @ 24 V DC
On-state current (input) max
5 mA
Off-state voltage (input) max
5 V DC
Off-state current (input) max
1.5 mA
Input IEC compatibility
Type 3
On-state voltage (output) min
10 V DC
On-state voltage (output) nom
24 V DC
On-state voltage (output) max
30 V DC
On-state current (output)
0.5 A steady-state, 2 A surge (2 s)
Isolation voltage
50 V continuous; tested 720 V DC 60 s between I/Os/backplane
Communication & Power
Backplane power
3.3 V DC, 60 mA
Power supply voltage (module) min
10.8 V DC
Power supply voltage (module) max
30 V DC
Physical & Environmental
Status indicators
8 yellow LEDs
Terminal base screw torque
0.22…0.25 N·m
Mounting torque
0.2 N·m
Shock (operating)
25 g
Vibration (operating)
2 g @ 10…500 Hz
Weight approx
23.13 g (0.816 oz)
Operating temperature
-20…65 °C
Relative humidity
5…95 % non-condensing
Enclosure type
open-style (no enclosure)
