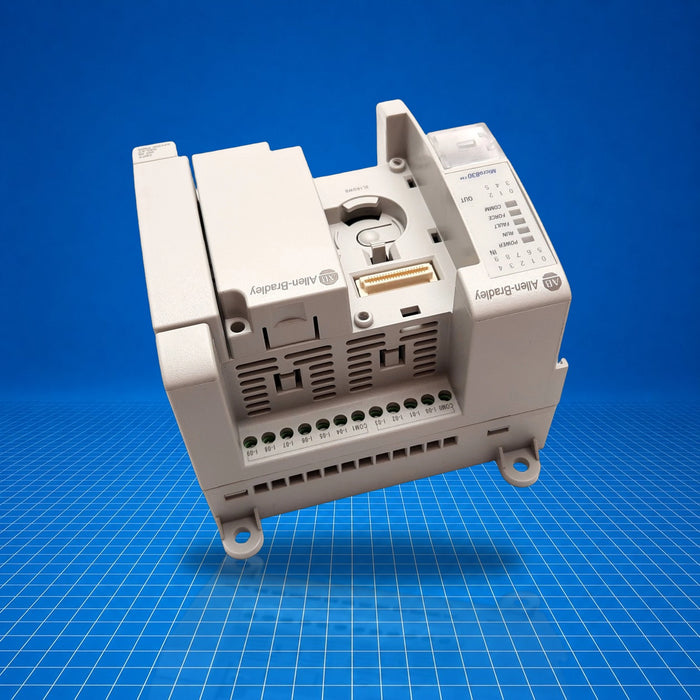

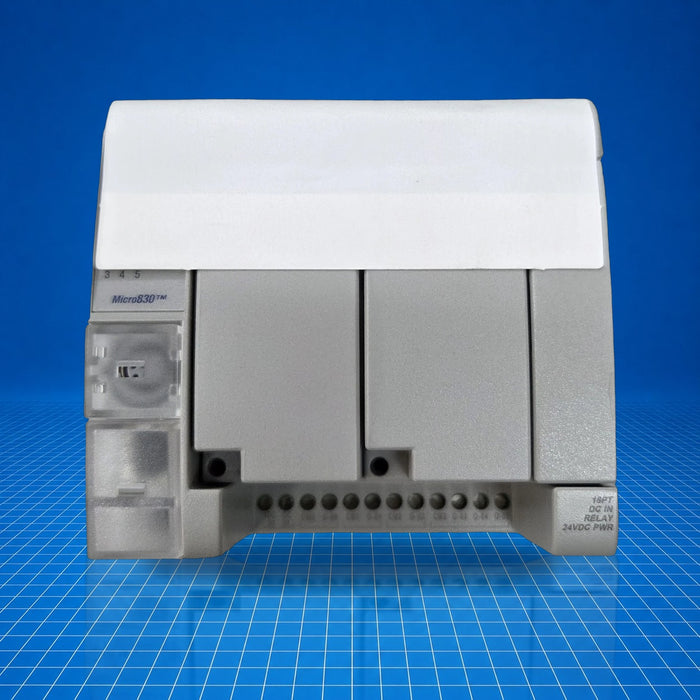

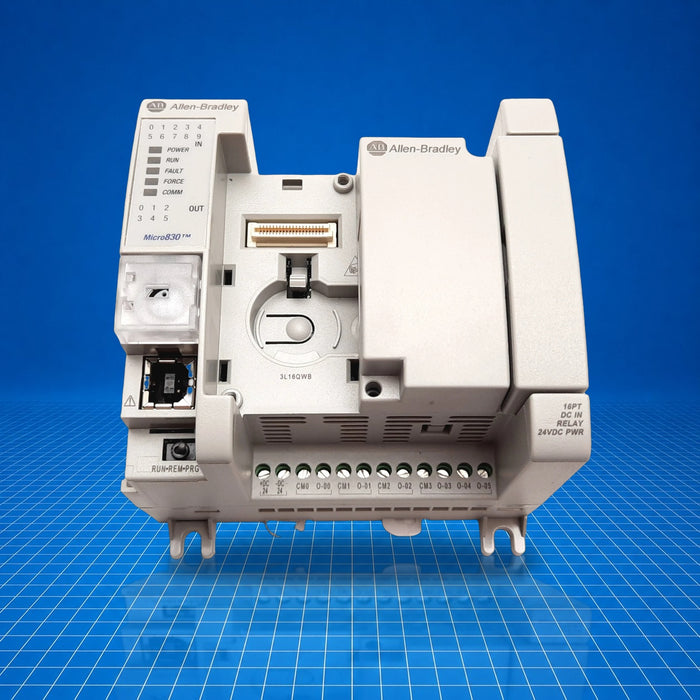

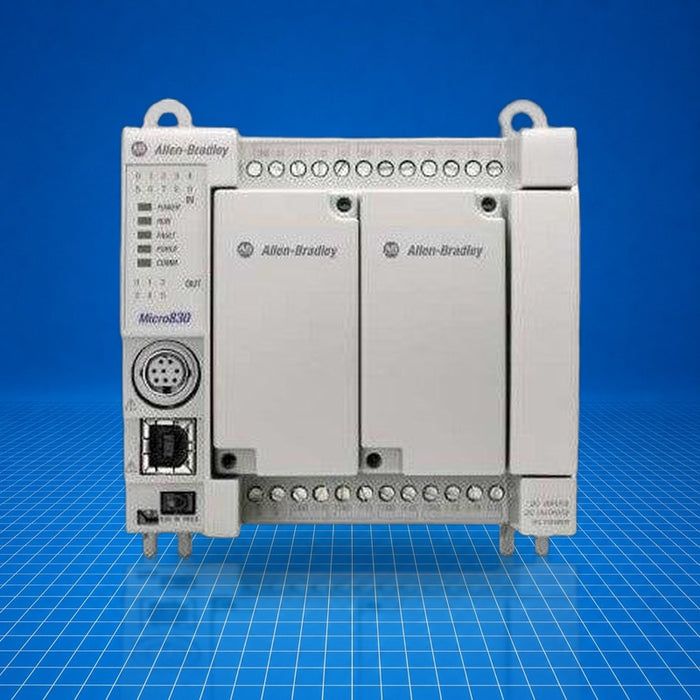

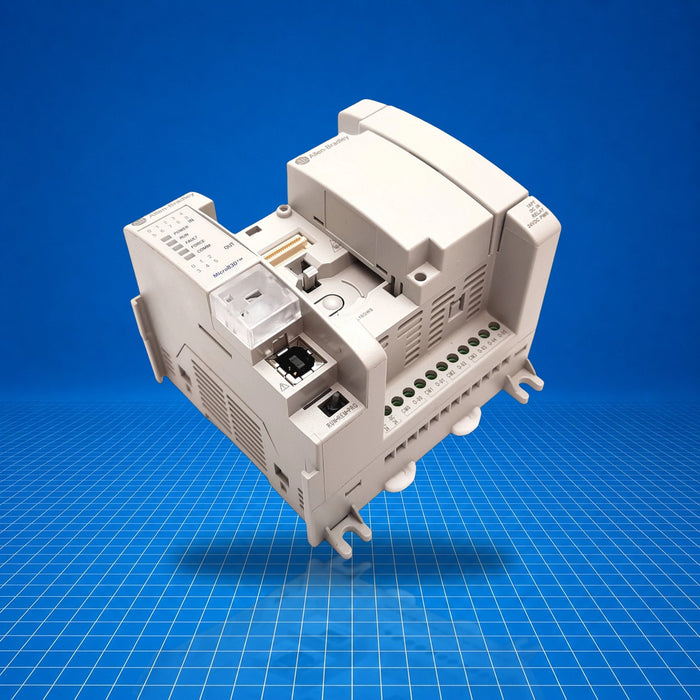

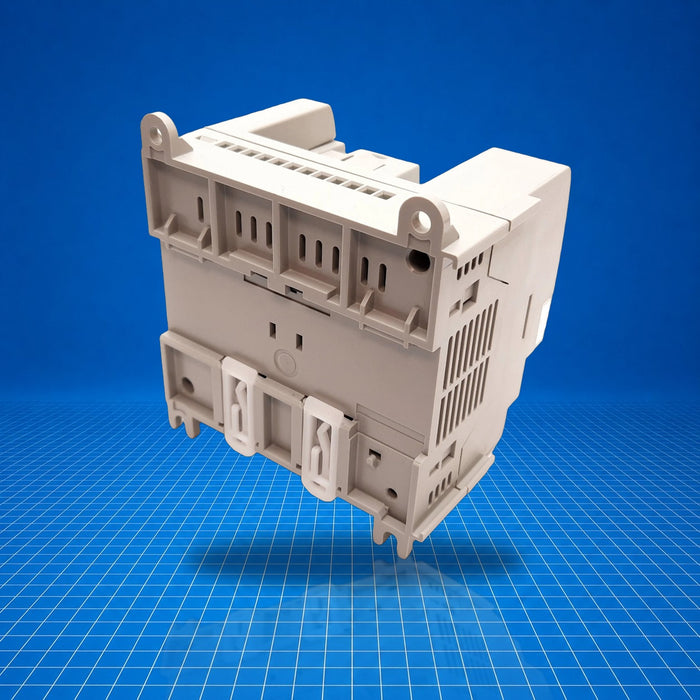

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2080-LC30-16QWB Allen-Bradley
Original price
$440.00
-
Original price
$825.00
Original price
$440.00
$440.00
-
$825.00
Current price
$440.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2080-LC30-16QWB is a base-unit Allen-Bradley Micro830 programmable logic controller within the Micro800 family. It provides 10 discrete DC inputs and 6 relay outputs in a compact form factor, and serves as a programmable I/O engine for machine-level control tasks. Typical industrial applications include OEM machine automation, standalone equipment control, and small process control systems. Part number 2080-LC30-16QWB is built for integration into compact control architectures.
Best Suited For
- OEM machine builders requiring integrated I/O and PLC logic
- Small-scale automation or standalone equipment control
- Applications needing both DC discrete inputs and relay outputs
- Installations with panel or DIN-rail mounting in control cabinets
Discrete inputs
10 (24 V DC sink/source)
Relay outputs
6 (relay outputs)
Power consumption
5 W (no plug-in modules) / 7.88 W (with modules)
Mounting
DIN-rail or panel mounting
Technical Specifications
I/O & Electrical
Input voltage range
16.8…26.4 V DC (high-speed inputs); 10…26.4 V DC (standard inputs)
Input on-state current
7.66 mA @ 24 V DC (high-speed); 6.15 mA @ 24 V DC (standard)
Output current rating
2 A @ 240 V AC (general); 1 A per point @ 24 V DC (30 °C); 0.3 A per point @ 24 V DC (65 °C)
I/O point count
10 inputs, 6 relay outputs
Communication & Power
Power supply
20.4…26.4 V DC Class 2
USB port
1 × USB 2.0 (configuration/programming)
Serial port
1 × RS-232/RS-485 combo (non-isolated)
Supported protocols
Modbus RTU Master/Slave, ASCII, CIP
Physical & Environmental
Dimensions (H×W×D)
90 × 100 × 80 mm (3.54 × 3.94 × 3.15 in)
Weight
0.302 kg (0.666 lb)
Operating ambient temperature
-20 to 65 °C
Enclosure rating
IP20 (open enclosure)
Insulation voltage
50 V continuous reinforced; 720 V DC (I/O to aux/network), 3250 V DC (outputs to aux/network) type tested 60 s
Certifications
UL ListedCEC-TickKCc-UL-us
