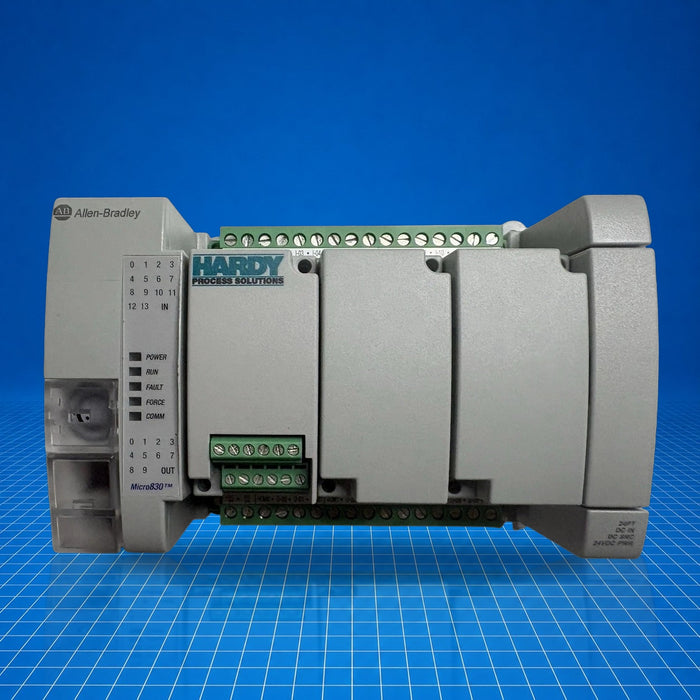

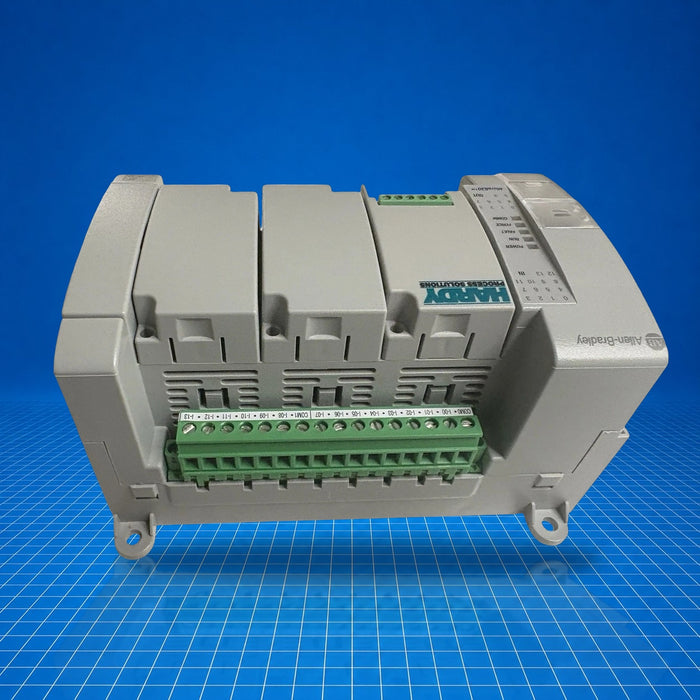

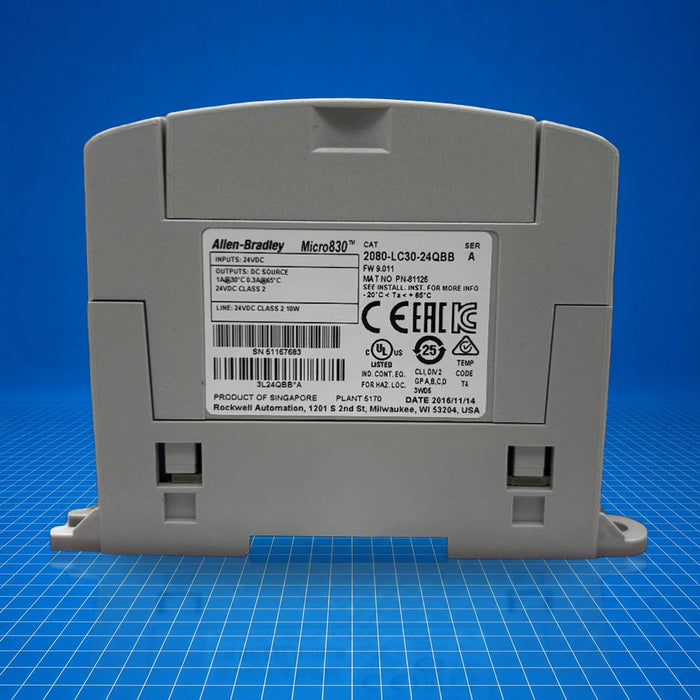

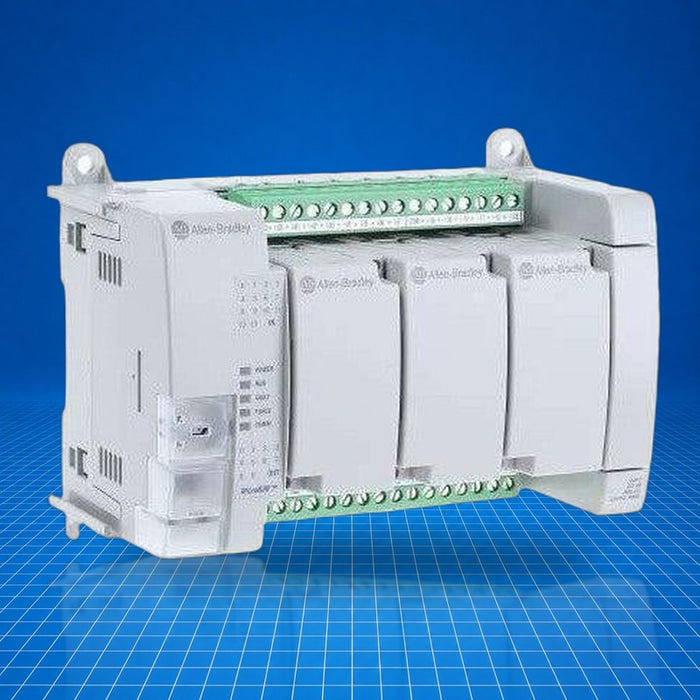

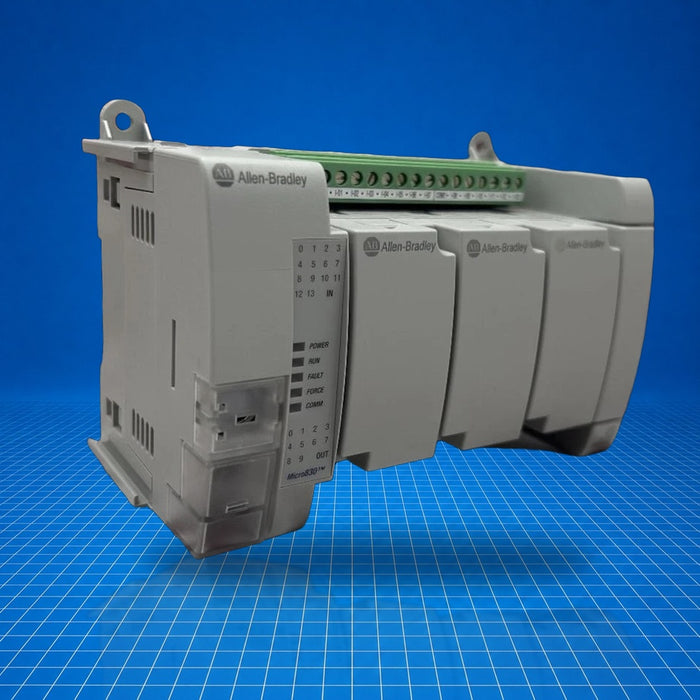

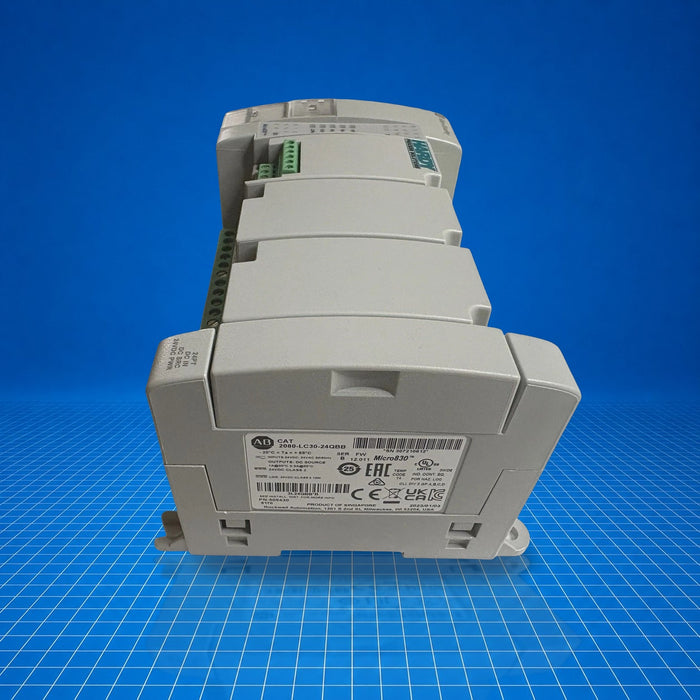

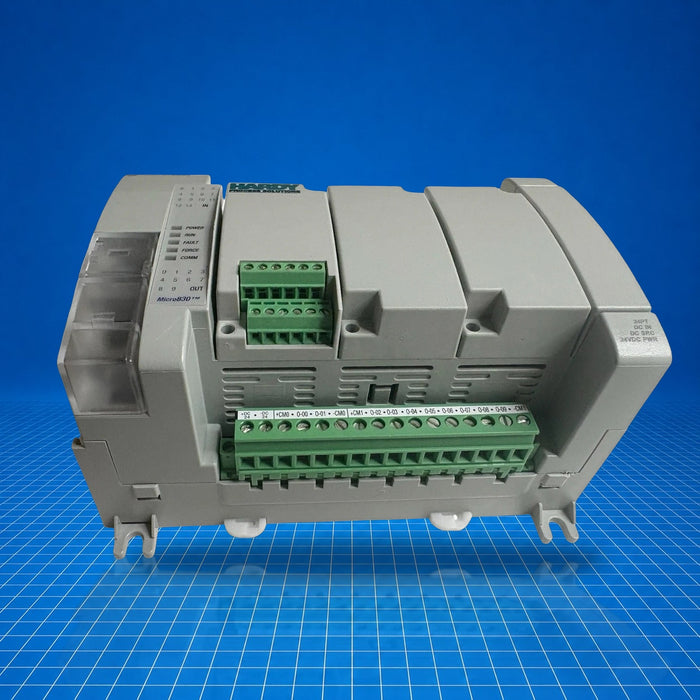

2080-LC30-24QBB Allen-Bradley

Name: 2080-LC30-24QBB Allen-Bradley
Brand: Allen Bradley
SKU: 2080-LC30-24QBB
Price: 560.0 USD
Availability: InStock

$560.00 - $796.00

$560.00

$560.00 - $796.00

$560.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 2080-LC30-24QBB is an Allen-Bradley Micro830 series programmable controller (PLC) designed to provide discrete 24 V DC input and sourcing output control for small-scale industrial and machine control applications. It includes 24 I/O points (14 inputs, 10 sourcing outputs), supports high-speed counter inputs, USB and serial communications, and accommodates plug-in expansion modules. It integrates into Compact Components Workbench environments for machine-level logic, timing, counting, and basic motion tasks.

Best Suited For

Small machine control requiring discrete sourcing outputs
High-speed counting or pulse-based applications
Compact panel or OEM installations with space constraints
Systems requiring serial integration (Modbus RTU, CIP)
Retrofitting or replacement in existing Micro800 Micro830 layouts

Discrete I/O

14 inputs / 10 sourcing outputs

Expansion

3 plug-in slots

Communication

USB 2.0 and RS-232/485 (non-isolated)

High-speed inputs

4 HSC

Technical Specifications

I/O & Electrical

Input voltage range

16.8…26.4 V DC (high-speed inputs), 10…26.4 V DC (standard inputs)

Input on-state current

8.8 mA @ 24 V DC

Input off-state voltage, max

5 V DC

Input off-state current, max

1.5 mA

Output type

24 V DC source (standard and high-speed)

Communication & Power

Power supply voltage range

20.4…26.4 V DC Class 2

Power consumption

5.28 W

Serial ports

USB 2.0 (non-isolated), RS-232/485 combo (non-isolated)

Supported protocols

Modbus RTU Master/Slave, ASCII, CIP

Physical & Environmental

Dimensions (HxWxD)

90 × 150 × 80 mm

Weight

0.423 kg

Enclosure rating

IP 20

Ambient temperature code

North American T4

Certifications

CEEMCRoHS
