Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

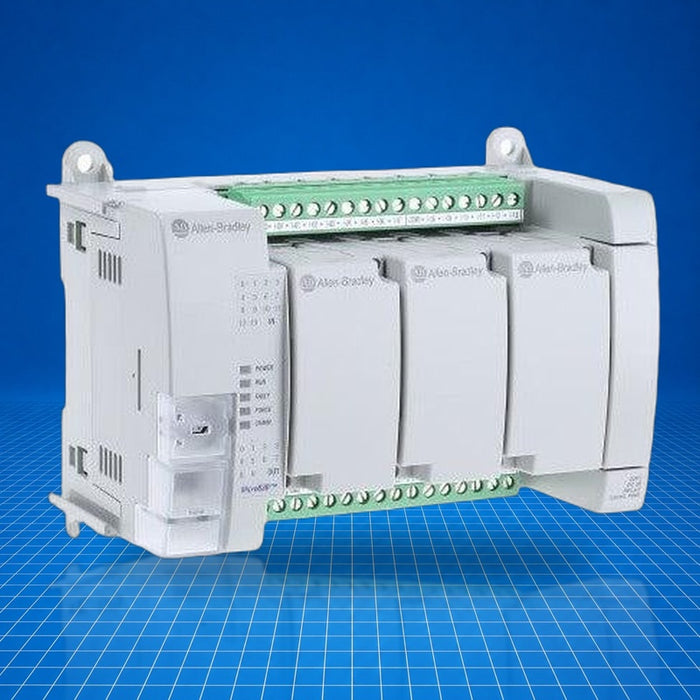

The 2080-LC30-24QVB is an Allen-Bradley Micro830 series programmable logic controller. It integrates 14 discrete inputs and 10 discrete outputs in a compact module and operates at 24 V DC sink-type outputs. In a control system, this device serves as a compact logic and I/O interface for small machine and process control. Typical industrial applications include simple machine control, standalone process automation, packaging systems, and OEM equipment needing up to 24 I/O within the Micro800 framework. Part number 2080-LC30-24QVB is presented here once more as specified.
Best Suited For
- Small standalone machine control
- OEM or packaged equipment requiring ≤24 digital I/O
- Applications needing DC sink-type outputs
- Replacement in discontinued Micro830 installations
Discrete inputs
14
Discrete outputs
10 (24 V DC sink)
Supply voltage range
20.4…26.4 V DC (Class 2)
Power consumption
8 W (no plug-in modules), 12.32 W (with plug-in modules)
Technical Specifications
I/O & Electrical
Discrete inputs
14 × 24 V DC, 8.8 mA each
Discrete outputs
10 × 24 V DC sink, Class 2, 1 A per point @ 30 °C; 0.3 A per point @ 65 °C
Communication & Power
Supply voltage
20.4…26.4 V DC (Class 2)
Power consumption
8 W (no plug-in modules); 12.32 W (with plug-in modules)
Physical & Environmental
Dimensions (HxWxD)
90 × 150 × 80 mm (3.54 × 5.91 × 3.15 in.)
Shipping weight
0.423 kg (0.933 lb)
