2080-LC30-48AWB Allen-Bradley
Original price
$0.00
-
Original price
$825.00
Original price
$825.00
$0.00
-
$825.00
Current price
$825.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

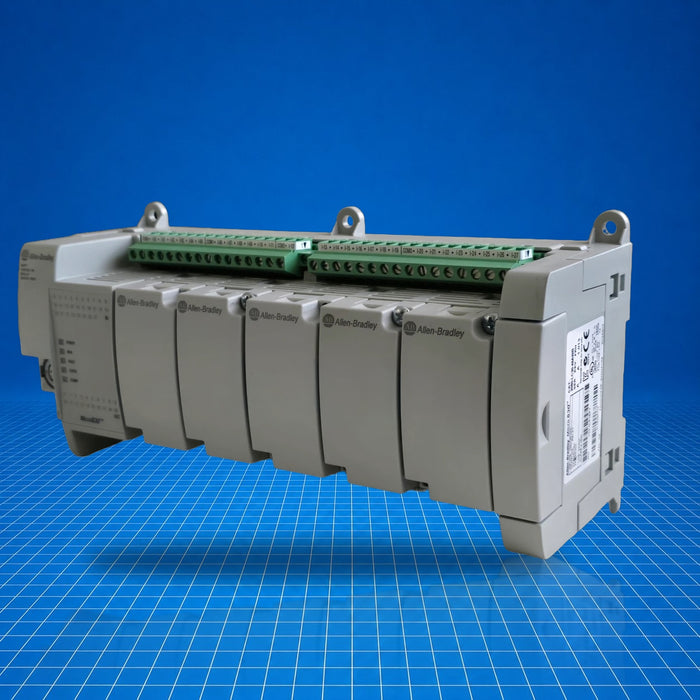

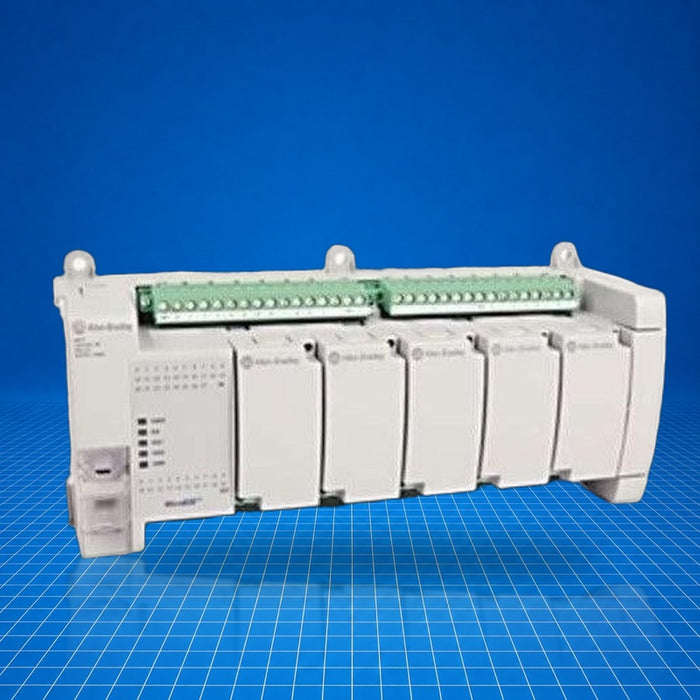

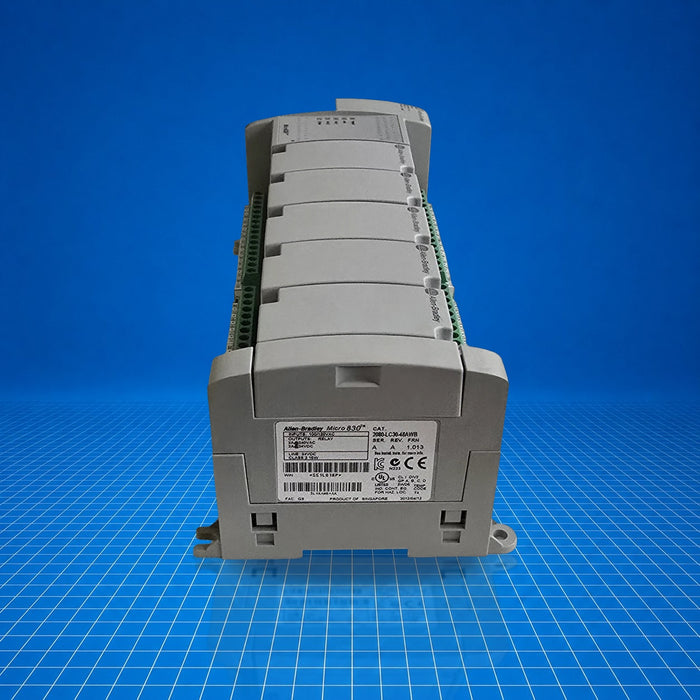

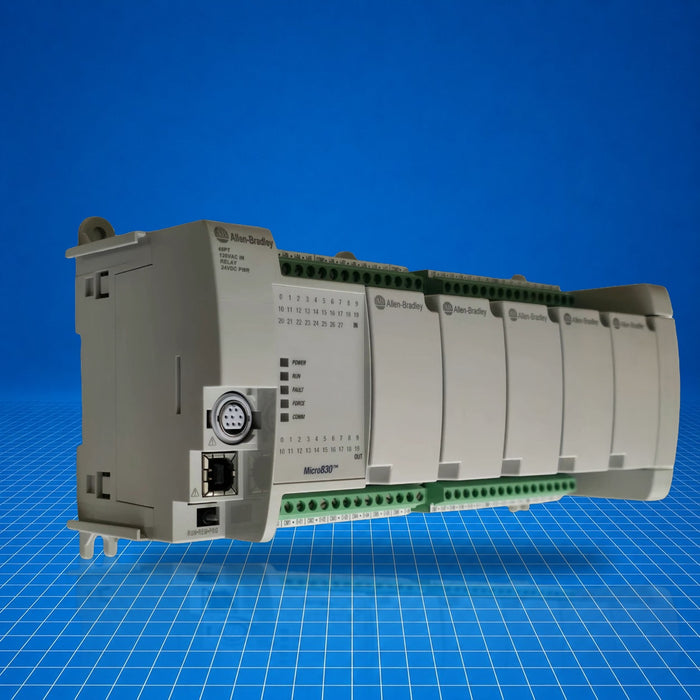

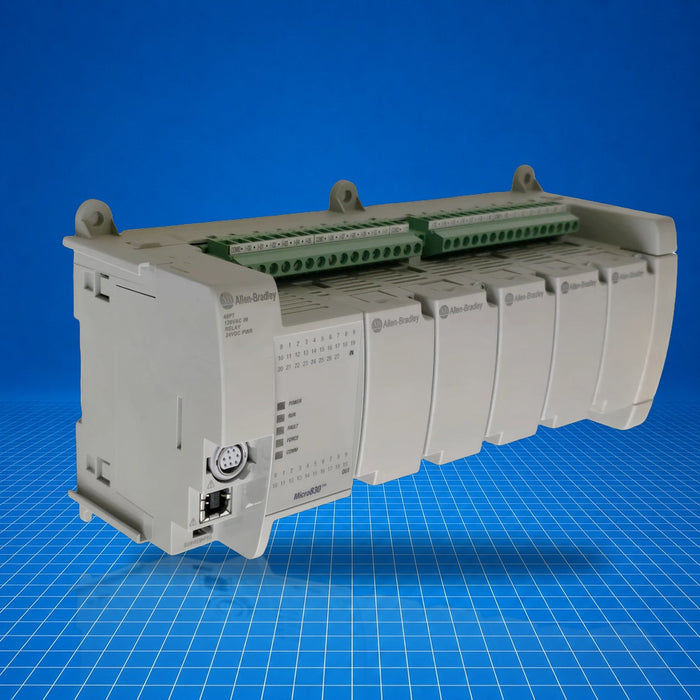

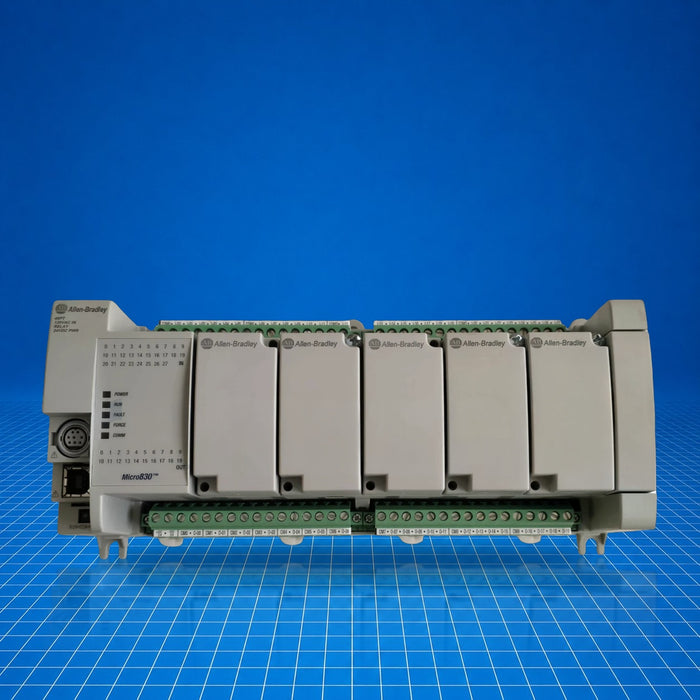

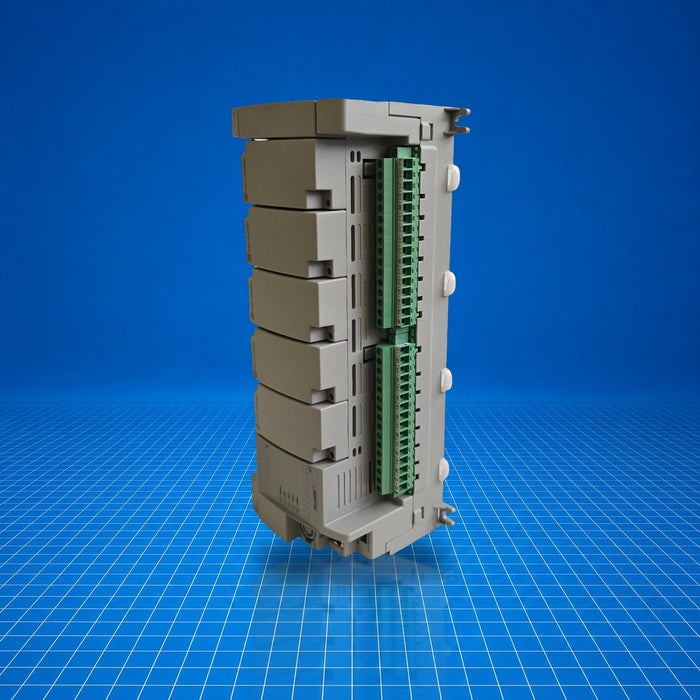

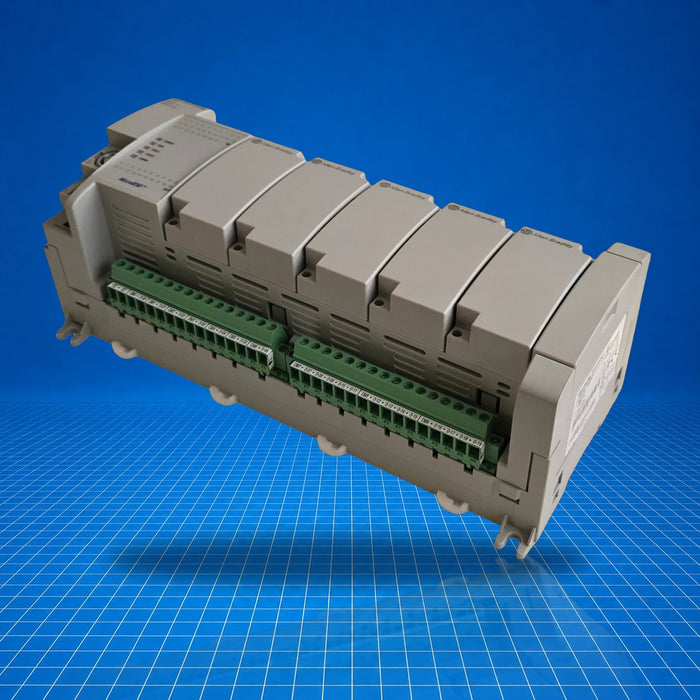

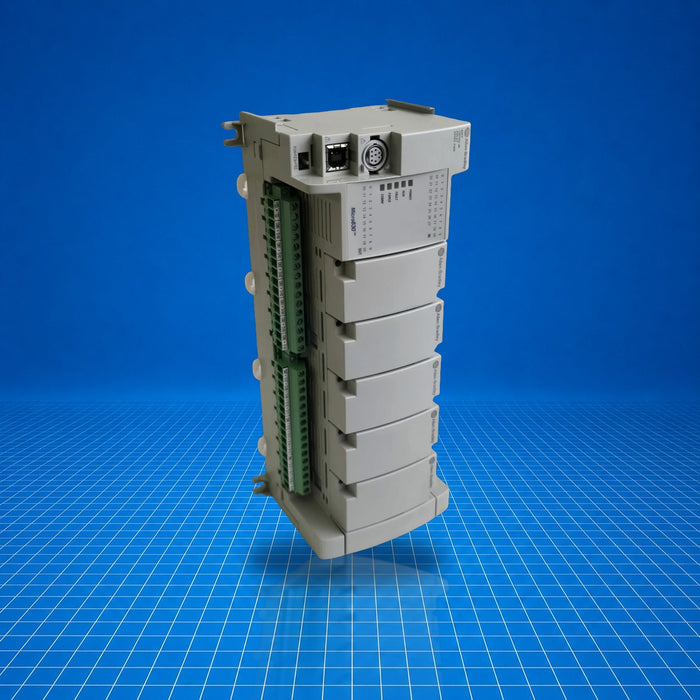

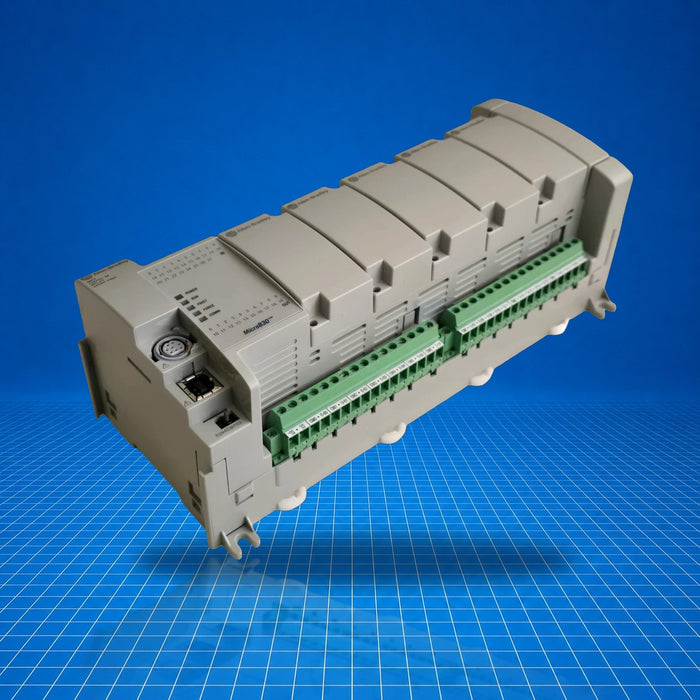

The 2080-LC30-48AWB is an Allen-Bradley Micro830 programmable logic controller in the 2080 series. Featuring 48 embedded I/O points (28 AC inputs and 20 relay outputs), this module serves as a compact brick-style controller for machine-level automation tasks. It integrates programming and communication ports and supports up to five plug-in modules for expandability. Typical applications include standalone machine control, equipment retrofits, and small system integration.
Best Suited For
- Standalone machine-level control
- Equipment retrofit and modernization
- Compact panel or DIN-rail installations
- Small discrete automation tasks
Embedded I/O
28 inputs / 20 relay outputs
Communication ports
USB Type B and RS-232/485 serial
Power range
20.4-26.4 V DC
Dimensions (HxWxD)
90 × 230 × 80 mm
Technical Specifications
I/O & Electrical
Embedded inputs
28 AC inputs (120 V AC nominal, 16 mA at 132 V AC)
Embedded outputs
20 relay outputs (5 A per common, 2 A per point)
Communication & Power
Input voltage range
20.4-26.4 V DC (Class 2)
Power consumption
15 W
USB port
Type B (non-isolated)
Serial port
RS-232/RS-485 combo (non-isolated)
Physical & Environmental
Dimensions
90 × 230 × 80 mm (3.54 × 9.06 × 3.15 in.)
Weight
0.725 kg (1.60 lb)
Wire size
0.2-2.5 mm² (24-12 AWG)
Terminal torque
0.6 Nm (4.4 in-lb)
Certifications
Discontinued; certifications to check on specific unit.
