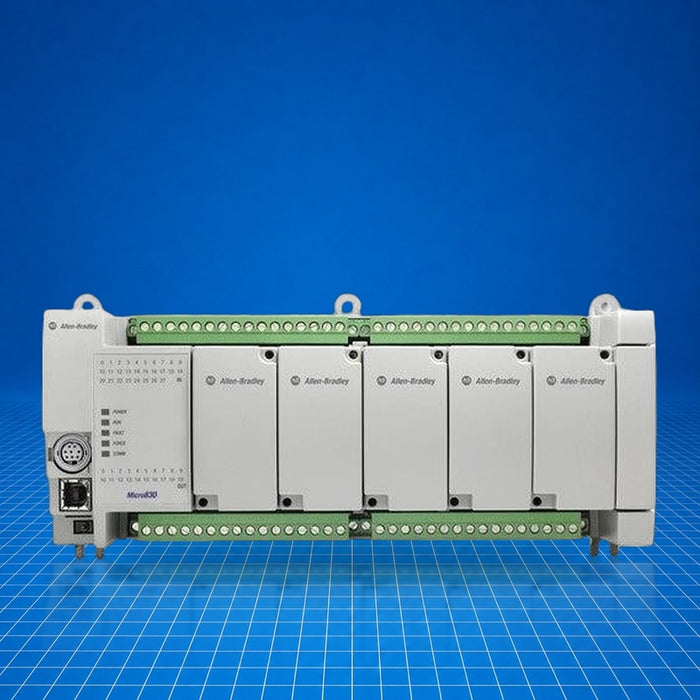

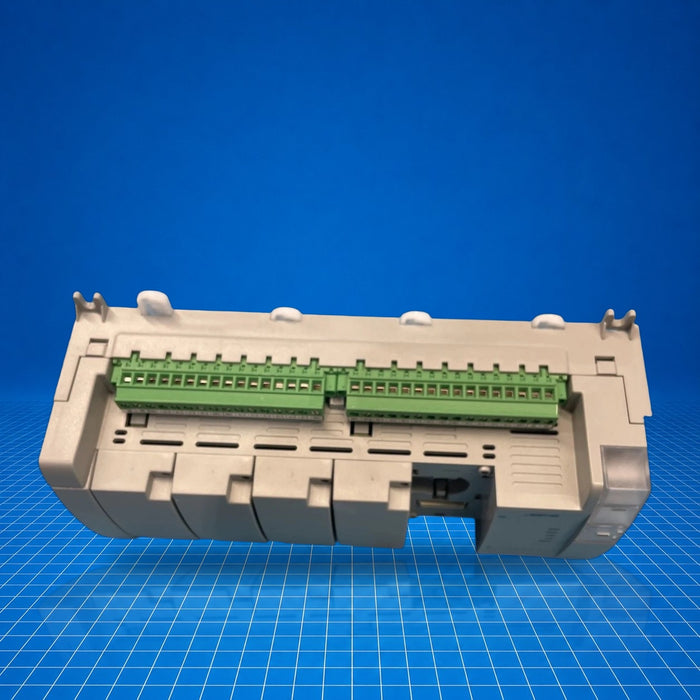

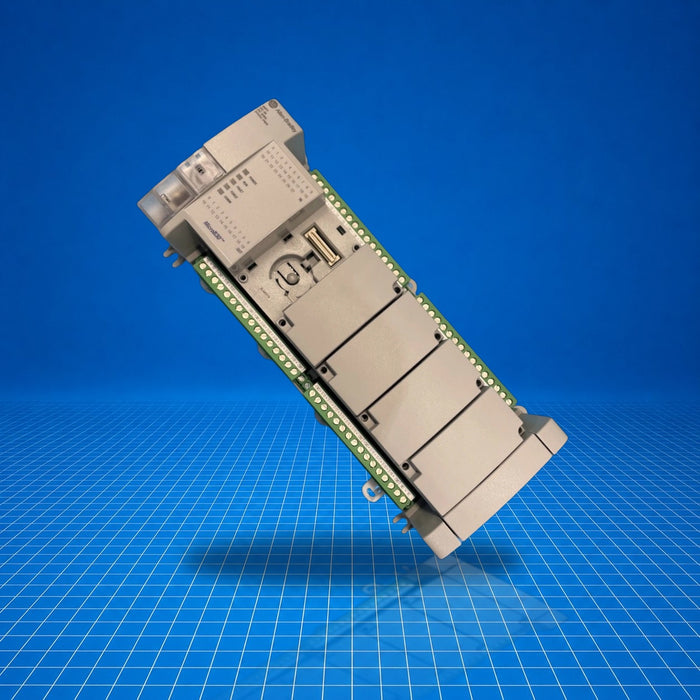

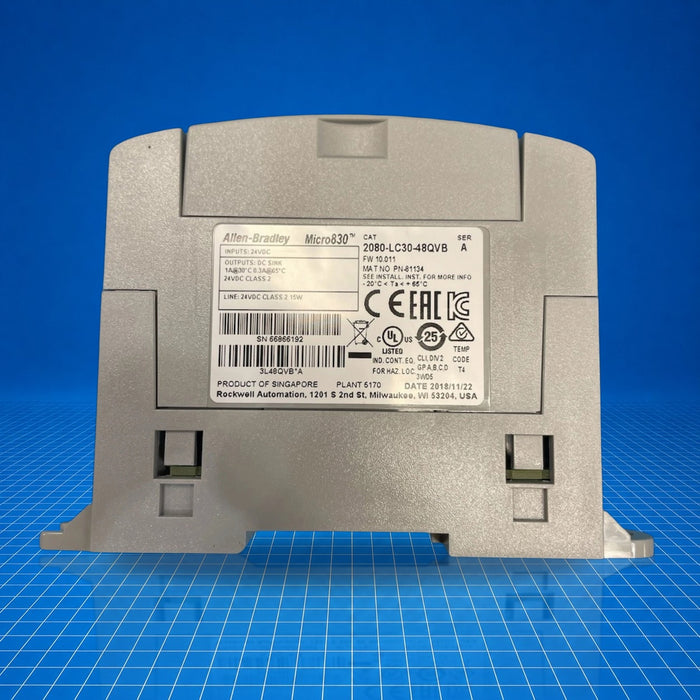

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2080-LC30-48QVB Allen-Bradley
Original price
$0.00
-
Original price
$1,171.50
Original price
$1,171.50
$0.00
-
$1,171.50
Current price
$1,171.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2080-LC30-48QVB is an Allen-Bradley Micro830 programmable logic controller (PLC), part of the Micro800™ family. It combines 28 DC input points and 20 DC sink outputs in a compact package, intended to reside at the logic backbone of automation systems. It is designed for machine-level control tasks such as discrete input/output logic, pulse or PWM outputs, and high-speed counting (HSC) functions. The 2080-LC30-48QVB integrates easily within CIP-based control networks and is typically applied in small-machine control, conveyor systems, packaging equipment, and OEM-designed production cells.
Best Suited For
- Small machine or standalone automation control
- Discrete input/output logic with DC sink outputs
- PWM or pulse-train output requirements
- High-speed counting applications
Inputs
28 DC inputs
Outputs
20 DC sink outputs
PWM/PTO support
3 channels
High-speed counting (HSC)
6 channels
Dimensions (HxWxD)
90 × 230 × 80 mm
Technical Specifications
I/O & Electrical
Number of inputs
28 DC inputs
Number of outputs
20 DC sink outputs
PTO/PWM channels
3 (requires firmware 6.011 or later)
High-speed counting channels
6
Physical & Environmental
Dimensions (H × W × D)
90 mm × 230 mm × 80 mm (3.54 × 9.06 × 3.15 in.)
Shipping weight
0.725 kg (1.60 lb)
Terminal screw torque
0.6 Nm (4.4 lb-in)
Wire type
Copper only, AWG 26-14 (solid), AWG 26-14 (stranded)
