2080-MOT-HSC Allen-Bradley

Name: 2080-MOT-HSC Allen-Bradley
Brand: Allen Bradley
SKU: 2080-MOT-HSC
Price: 742.36 USD
Availability: InStock

$499.80 - $742.36

$742.36

$499.80 - $742.36

$742.36

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

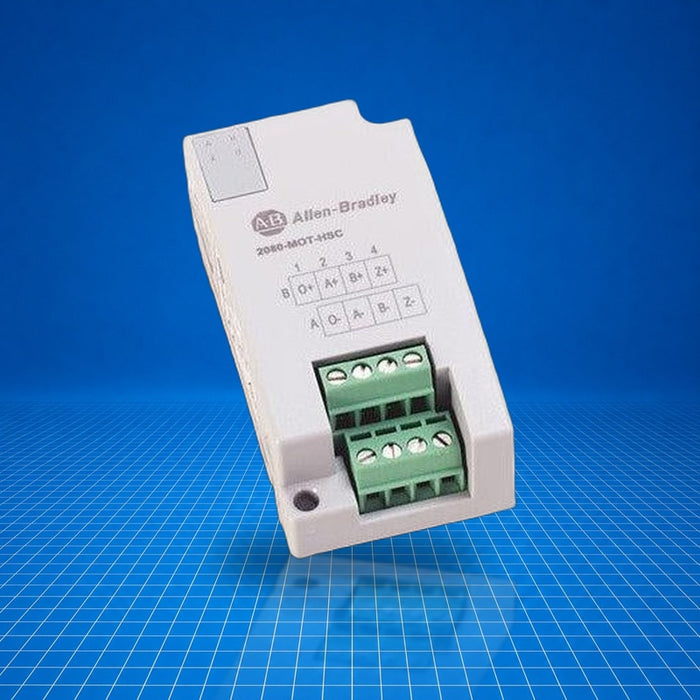

The 2080-MOT-HSC is an Allen-Bradley Micro800 high-speed counter plug-in module suitable for Micro800 L20E/L50E/L70E controllers. It enhances embedded high-speed counter capabilities with support for up to 250 kHz quadrature differential (5 V) or 24 V single-ended encoder inputs, plus added dedicated I/O. It integrates into Connected Components Workbench (version 7+) and supports feedback-axis and user-defined function block (UDFB) configurations for motion or pulse counting tasks. Suitable for applications requiring precise encoder feedback or high-speed counting.

Best Suited For

Encoder signal processing (quadrature, ABZ)
Feedback-axis motion control in Micro800 systems
High-speed counting up to 250 kHz
Retrofitting embedded HSC functionality with higher performance

Max input frequency

250 kHz

Inputs

1 quadrature differential (ABZ) channel

Output channels

1 physical + 15 virtual

Bus current draw

60 mA @ 3.3 V DC

Isolation voltage

50 V continuous (tested 720 V DC)

Technical Specifications

I/O & Electrical

Input voltage range

0…30 V DC

Input current range

2 mA (nominal)

Input impedance

3 580 Ω (nominal)

Minimum pulse width

2 µs

Number of outputs

1 physical + 15 virtual

Output voltage range

5…30 V DC

Output on-state current (max)

0.5 A

Communication & Power

Bus current draw

60 mA @ 3.3 V DC

Physical & Environmental

Operating temperature

-20…65 °C (-4…149 °F)

Non-operating temperature

-40…85 °C (-40…185 °F)

Shock (non-operating)

25 g unpackaged, 35 g panel-mount

Vibration (operating)

2 g @ 10…500 Hz

Enclosure rating

Meets IP20

Dimensions (W × H × D)

31.5 mm × 62 mm × 20 mm
