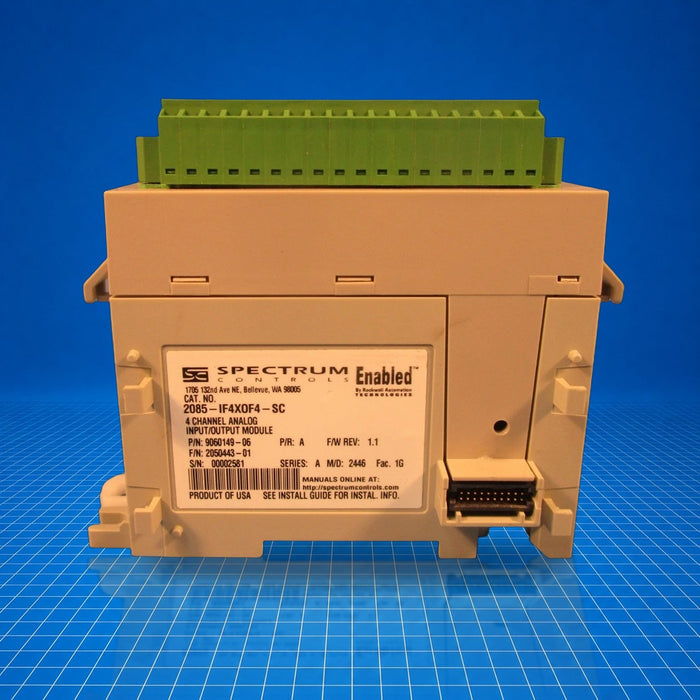

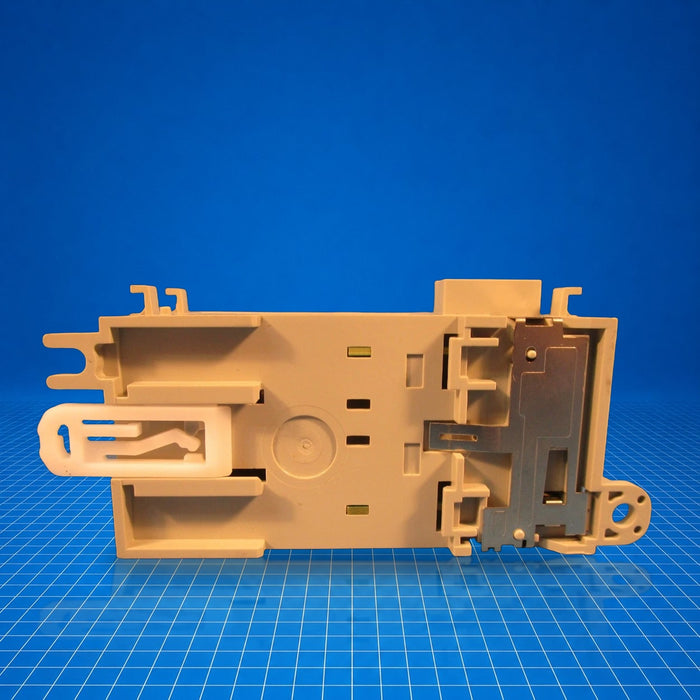

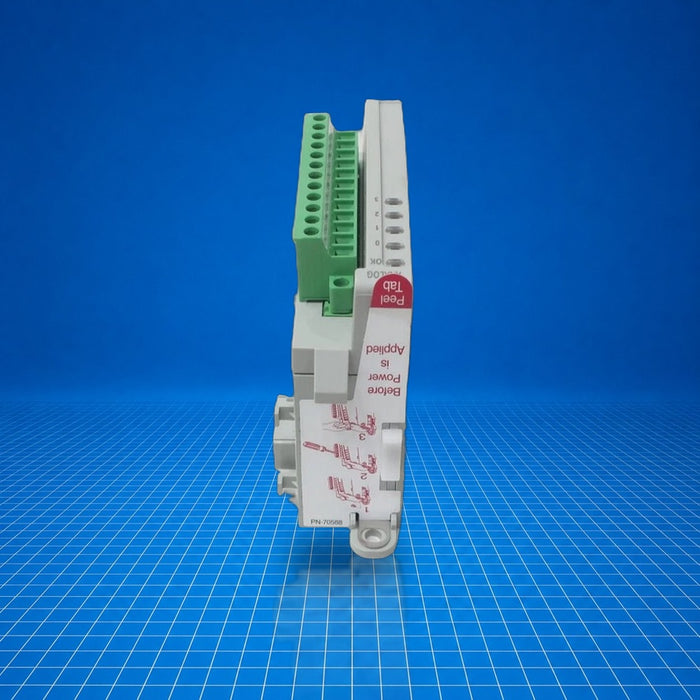

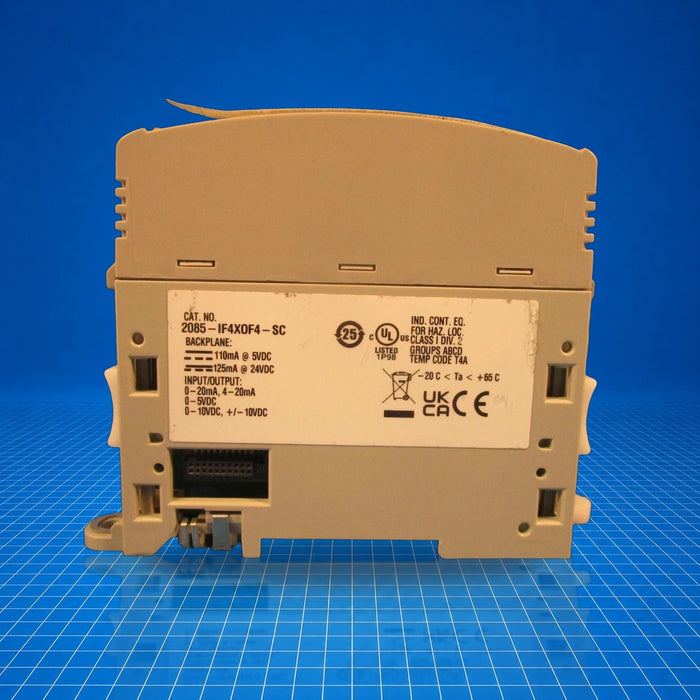

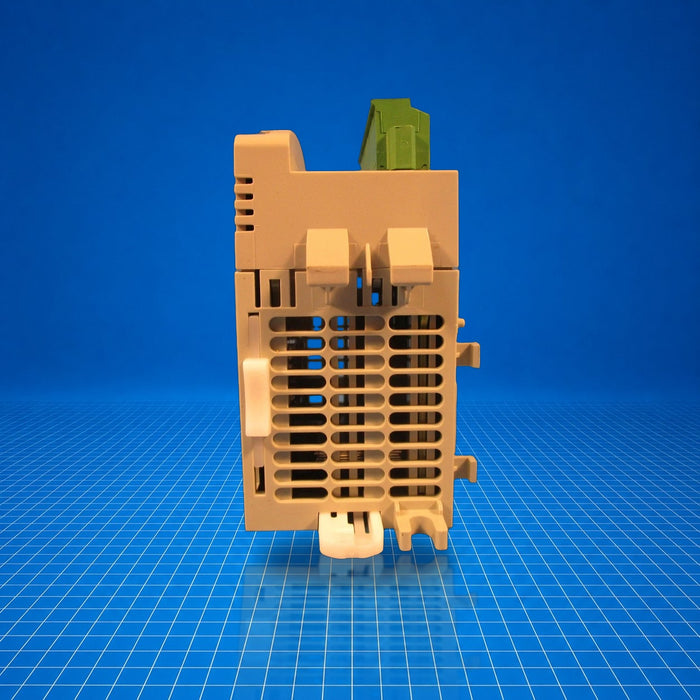

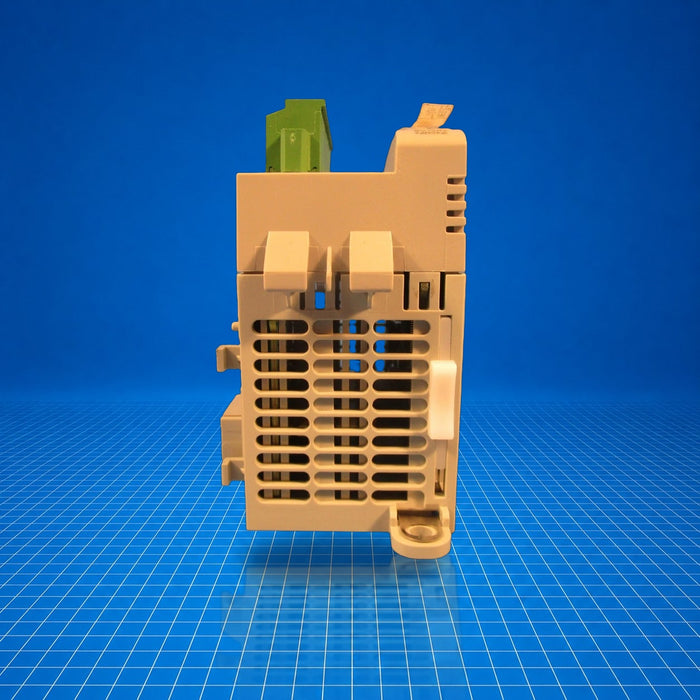

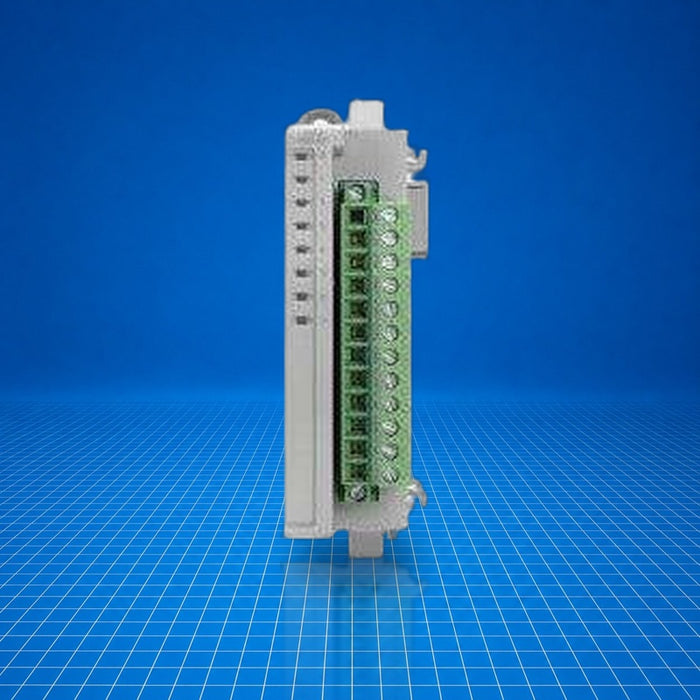

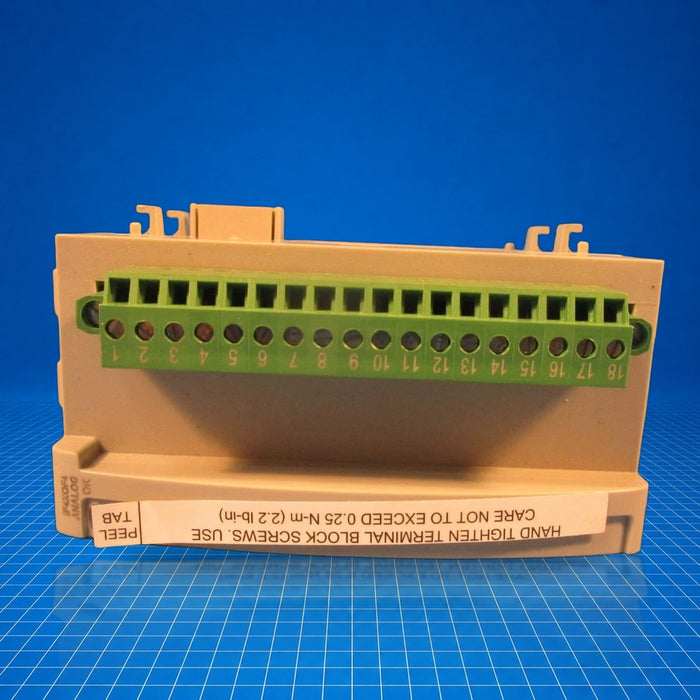

Product image is representative; revision or series may vary.
Contact us to request a specific version.

2085-IF4 Allen-Bradley

Name: 2085-IF4 Allen-Bradley
Brand: Allen Bradley
Price: 610.23 USD
Availability: InStock

$0.00 - $610.23

$610.23

$0.00 - $610.23

$610.23

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

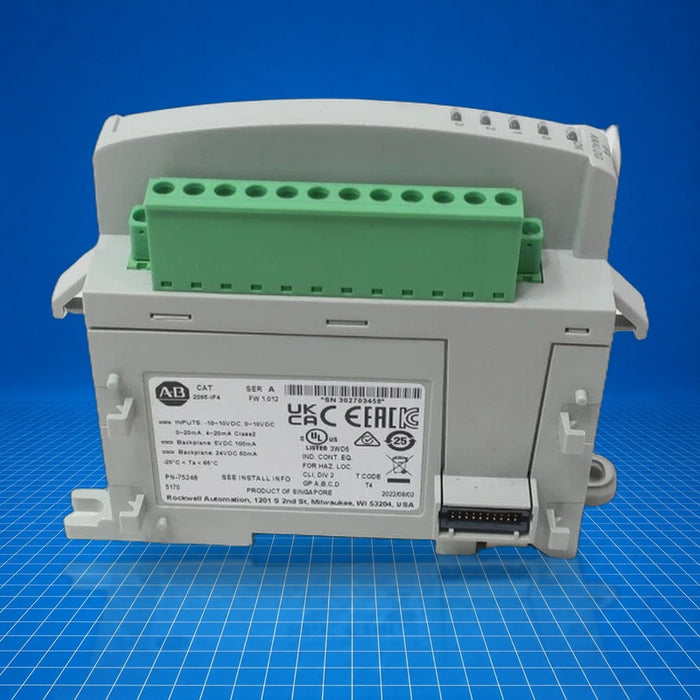

The 2085-IF4 is an Allen-Bradley Micro800 family analog input expansion module. Designed for use with the Micro800 or Micro850 controllers, it provides four isolated bipolar analog input channels capable of reading voltage or current signals (±10 V, 0-20 mA). The module attaches to the controller's expansion bus and integrates status LEDs per channel. Typical applications include machine-level analog signal acquisition, process instrumentation monitoring, and integration of analog sensors into compact control systems. 2085-IF4 supports isolation and precision measurement in industrial environments.

Best Suited For

Micro800/Micro850 controller expansion
Bipolar voltage and current analog input applications
Panel-mounted signal acquisition
Channel-level status diagnostics via LEDs

Channels

4 isolated analog inputs

Signal types

±10 V, 0-20 mA

Isolation

Isolated I/O

Operating temperature

-20…65 °C (-4…149 °F)

Dimensions (HxWxD)

28 × 90 × 87 mm

Technical Specifications

I/O & Electrical

Number of inputs

4

Input signal types

Voltage: ±10 V; Current: 0-20 mA

Isolation

Isolated I/O

Overload rating

30 V continuous or 32 mA continuous, one channel at a time (factory-calibrated, no user calibration)

Channel diagnostics

Over/under-range and open-circuit bit reporting

Communication & Power

Bus current draw, max

5 V DC: 100 mA; 24 V DC: 50 mA

Power dissipation, total

1.7 W

Physical & Environmental

Dimensions (HxWxD)

28 × 90 × 87 mm

Weight (approx. shipping)

140 g (4.93 oz)

Operating temperature

-20…65 °C (-4…149 °F)

I/O status indication

LED (1 green health indicator, channels diagnostic)

Enclosure rating

IP20 (open-style module)

Certifications

UL ListedBureau VeritasAustralian RCMKorean Register of Shipping

Certified to UL Listed, Bureau Veritas, Australian RCM, Korean Register of Shipping (as of May 20, 2026).
