Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

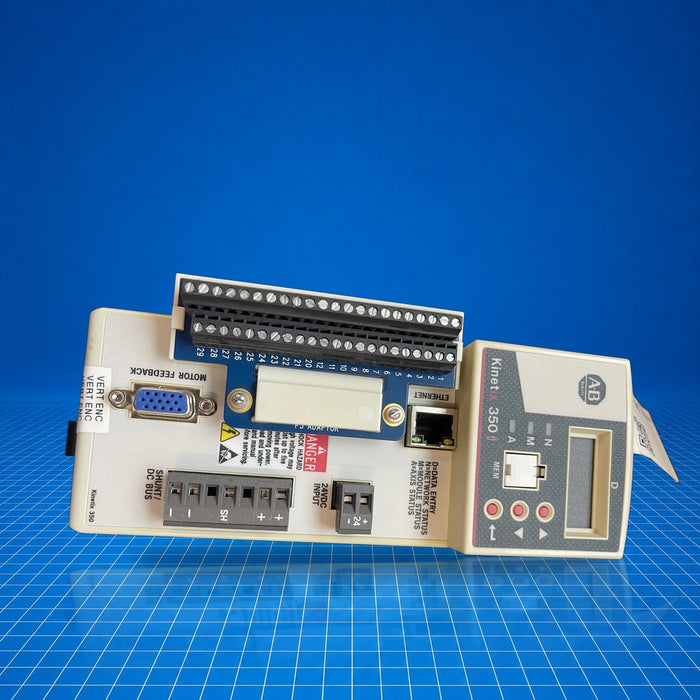

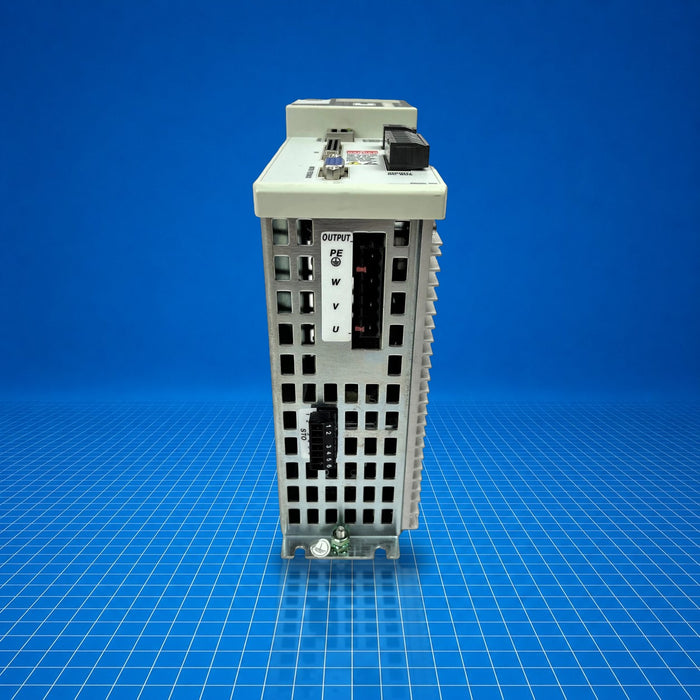

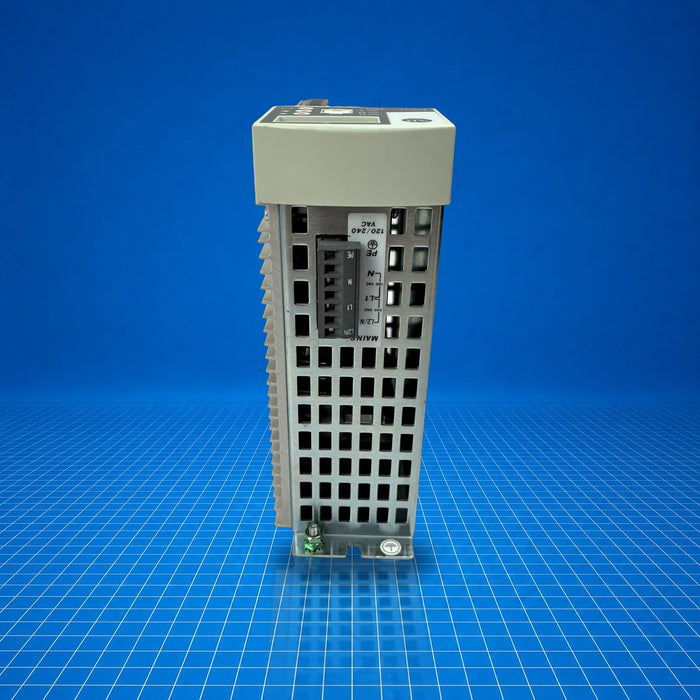

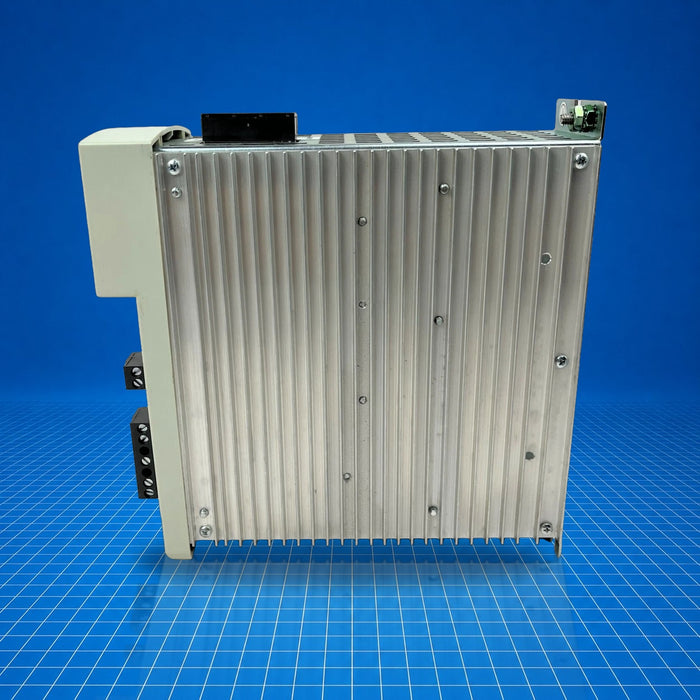

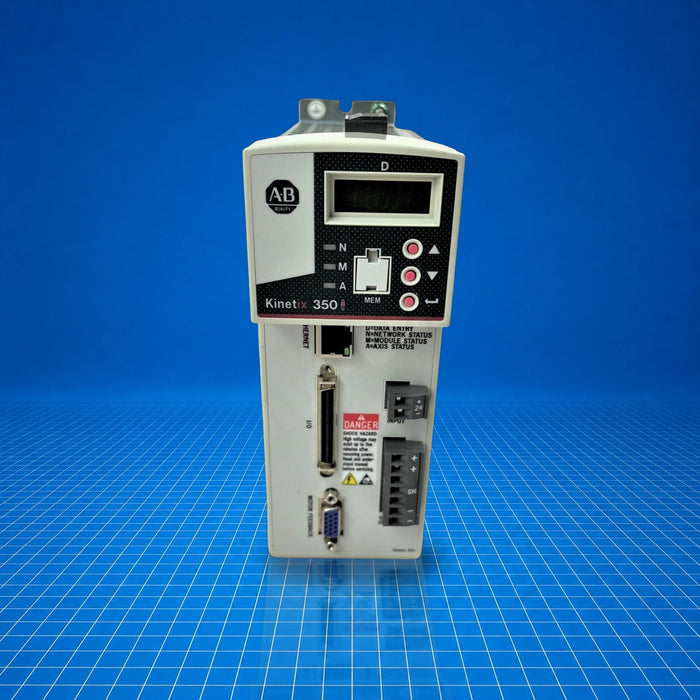

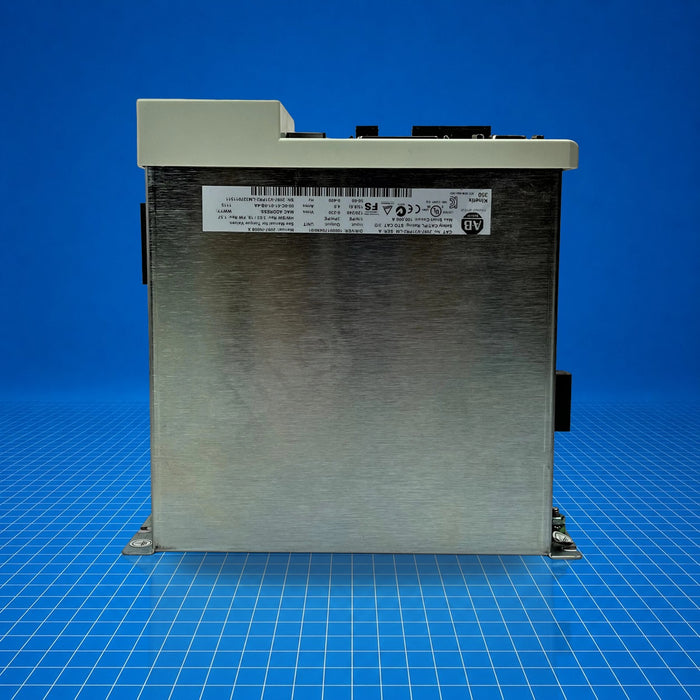

The 2097-V31PR2-LM is an Allen-Bradley Kinetix 350 single-axis servo drive, delivering indexed motion control over EtherNet/IP. It accepts single-phase AC input (120 V/240 V with voltage doubler) and supplies up to 0.80 kW output. Equipped with Safe Torque-Off (STO), it supports incremental encoder feedback and is designed for compact panel integration. It is intended for precise motion control tasks in packaging, machining, and automated assembly systems. This listing concerns part number 2097-V31PR2-LM.
Best Suited For
- Single-axis indexing applications
- EtherNet/IP motion control networks
- Installations needing Safe Torque-Off functionality
- Compact panel spaces
Power output
0.80 kW
Continuous output current (rms)
4.0 A
Input voltage
120/240 V AC (single-phase, doubler mode)
Network
EtherNet/IP
Safety feature
Safe Torque-Off (STO)
Technical Specifications
I/O & Electrical
AC input voltage
70-132 V rms (voltage-doubler mode) or 80-264 V rms single-phase (nominal 120/240 V)
AC input frequency
48-62 Hz
Main AC input current (rms)
15 A at 120 V (doubler); 8.6 A at 240 V
Continuous output current (rms)
4.0 A
Continuous output current (0-pk)
5.7 A
Peak output current (rms)
12.0 A
Peak output current (0-pk)
17.0 A
Continuous power output
0.80 kW
Safe Torque-Off (STO)
Yes
Communication & Power
Network protocol
EtherNet/IP
Voltage doubler support
Yes (120 V to 240 V DC bus)
Physical & Environmental
Weight
1.38 lbs (0.62 kg)
Dimensions
9.3 × 7.3 × 2.7 in
Operating temperature
0 to 40 °C (32 to 104 °F)
Relative humidity
5 to 95 % non-condensing
Certifications
CEC-TickcUL-us
Meets IEC directives including EMC, LVD, Machinery and RoHS compliance; certified CE, C-Tick, cUL-us.
