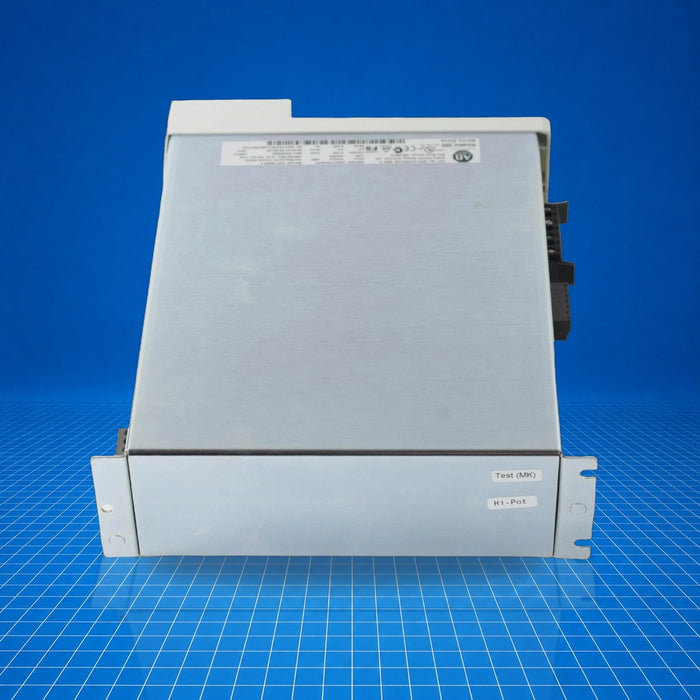

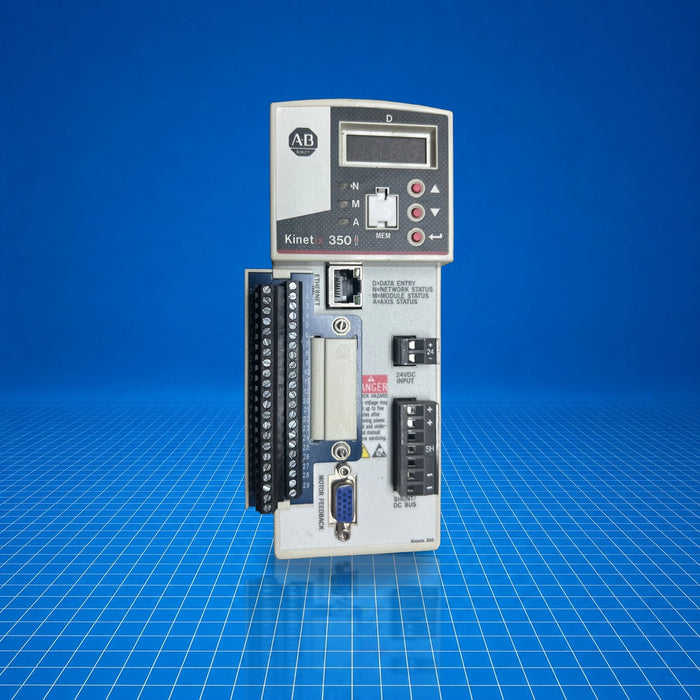

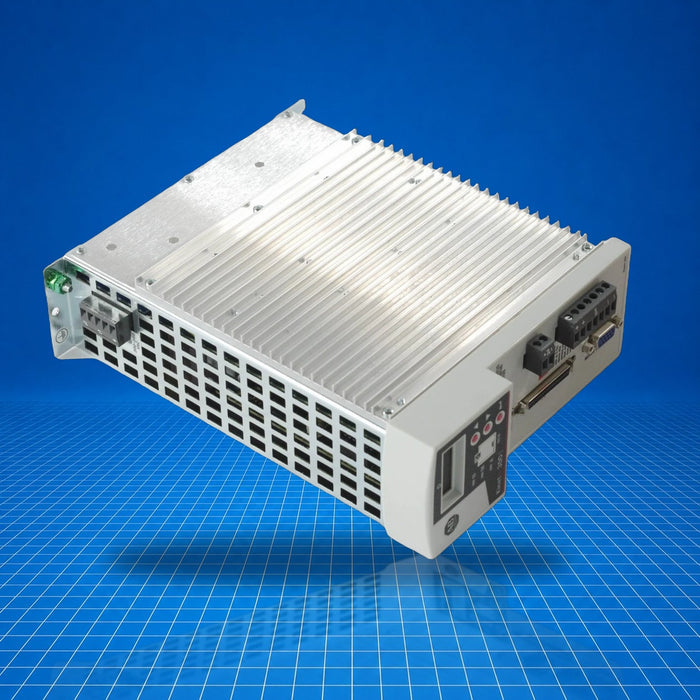

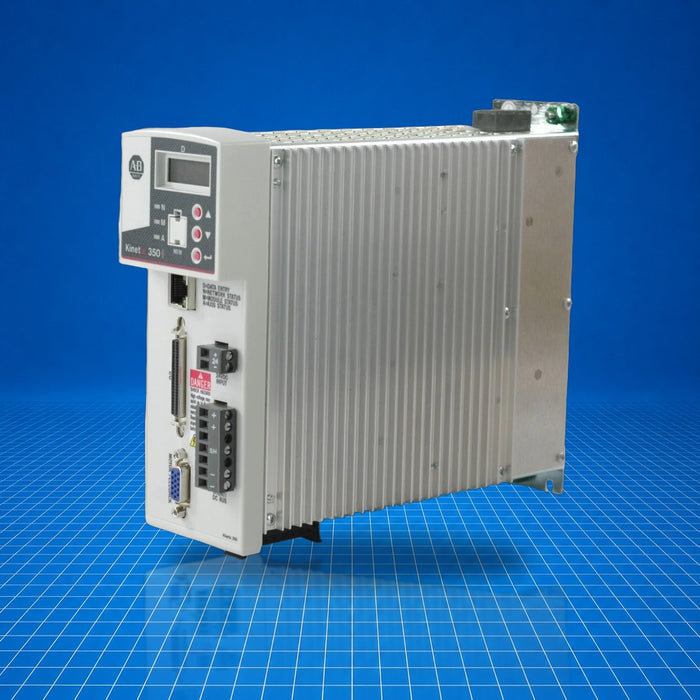

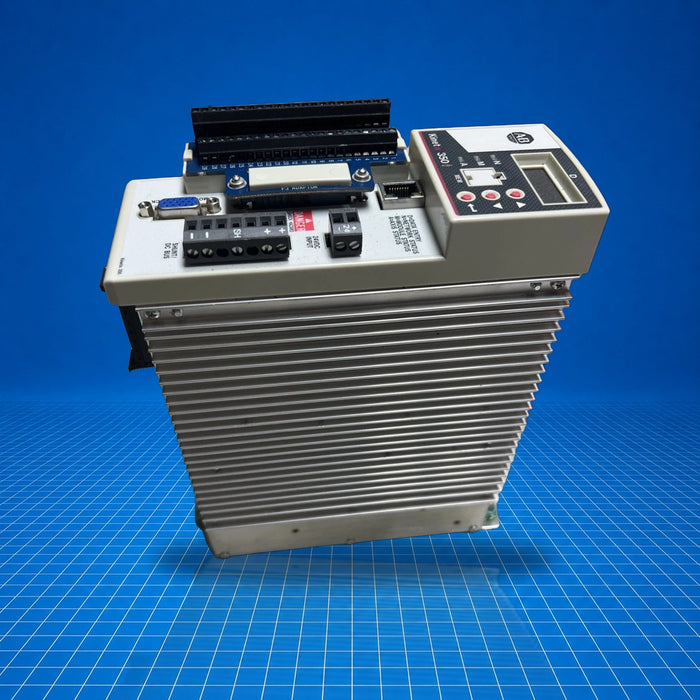

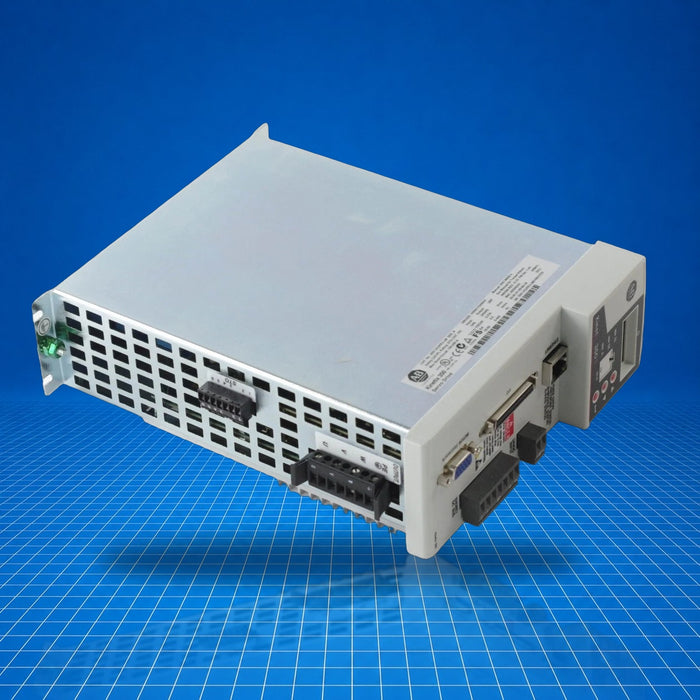

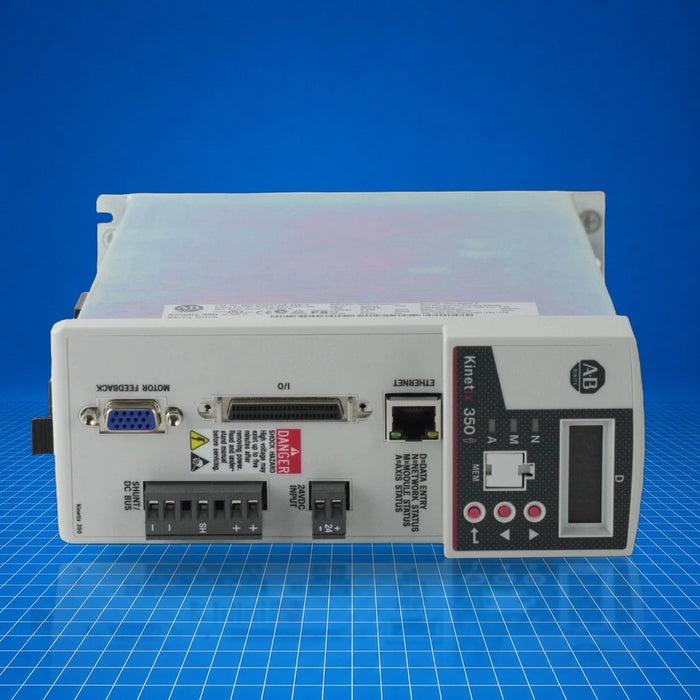

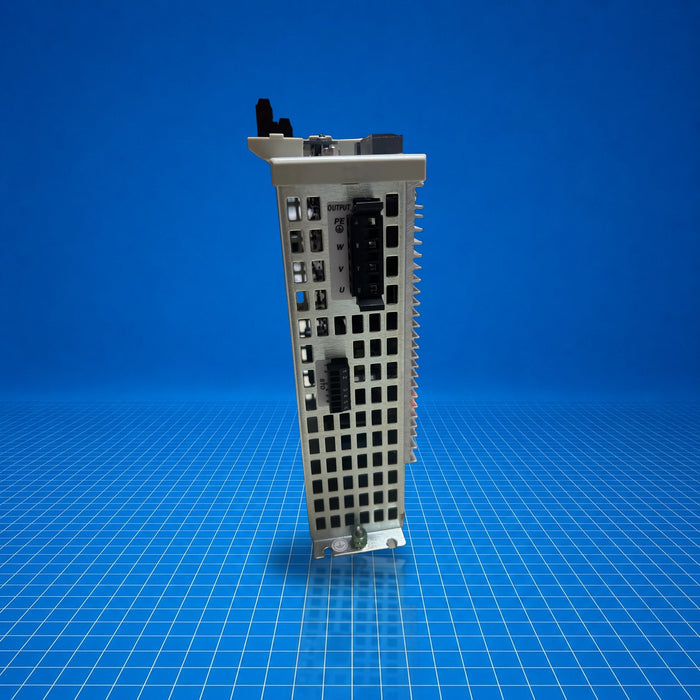

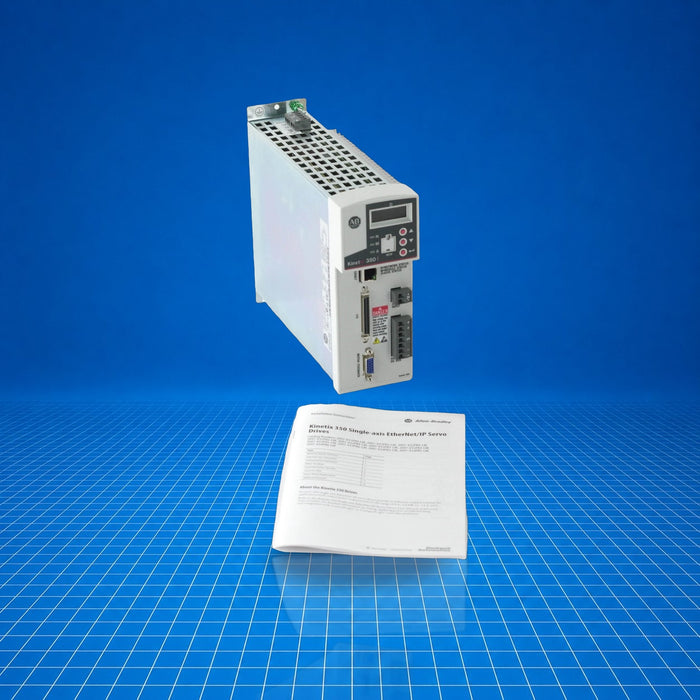

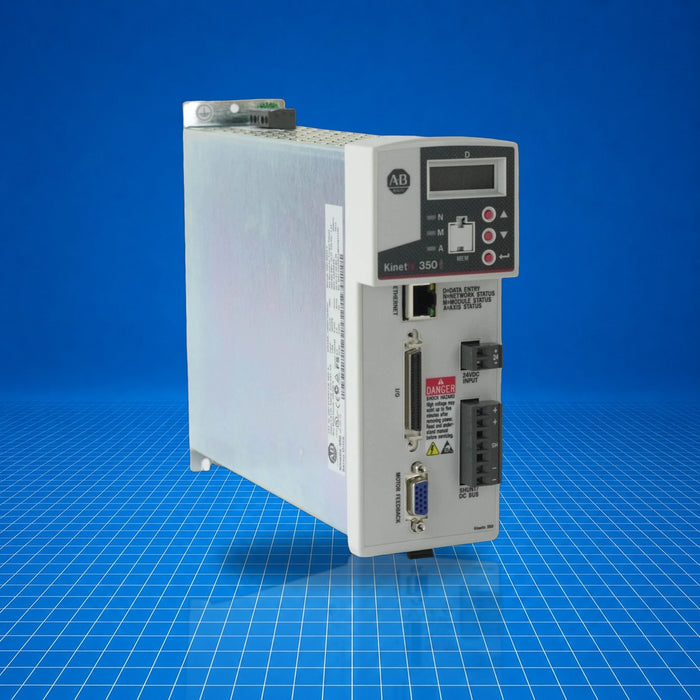

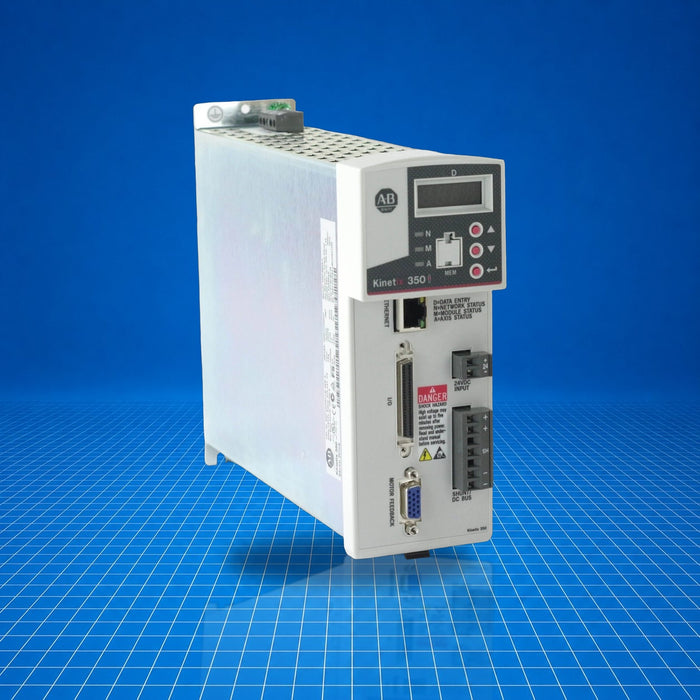

2097-V32PR2-LM Allen-Bradley
Original price
$1,292.47
-
Original price
$2,437.75
Original price
$1,292.47
$1,292.47
-
$2,437.75
Current price
$1,292.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 2097-V32PR2-LM is a Kinetix 350 single-axis Ethernet/IP servo drive within the Kinetix 300/350 platform. It provides 0.8 kW continuous output power and Safe Torque-Off functionality for precise motion control. Installed in industrial automation systems, it is typically used for indexing, positioning and compact motion tasks on manufacturing machines. The drive communicates over Ethernet/IP to Logix controllers and supports integrated AC line filtering. 2097-V32PR2-LM is discontinued as of July 31, 2024.
Best Suited For
- Single-axis indexing and positioning applications
- Integration with ControlLogix or CompactLogix over Ethernet/IP
- Environments requiring Safe Torque-Off support
- Applications needing a compact 0.8 kW servo drive
Power rating
0.8 kW
Input voltage range
80-264 V AC rms (1 phase)
Continuous output current (0-pk)
5.7 A
Safe Torque-Off
Yes
Lifecycle status
Discontinued (as of July 31, 2024)
Technical Specifications
I/O & Electrical
Input voltage range
80-264 V AC rms, 1 phase (240 V nom)
Input frequency
48-62 Hz
Continuous output current (rms)
4.0 A
Continuous output current (0-pk)
5.7 A
Peak output current (rms)
12.0 A
Peak output current (0-pk)
17.0 A
Continuous output power
0.8 kW
Communication & Power
Integrated AC (EMC) line filter
Yes
Safe Torque-Off
Yes
Control-power backup input voltage
20-26 V DC
Control-power backup input current (nominal)
500 mA
Control-power backup input current (max. inrush)
30 A
Physical & Environmental
Dimensions (HxWxD)
238 × 185.1 × 78.2 mm (9.37 × 7.29 × 3.08 in)
Weight
1.7 kg (3.7 lb)
Operating temperature
0-40 °C (32-104 °F)
Clearance, sides
3 mm
Clearance, top/bottom
25 mm
Certifications
Discontinued
