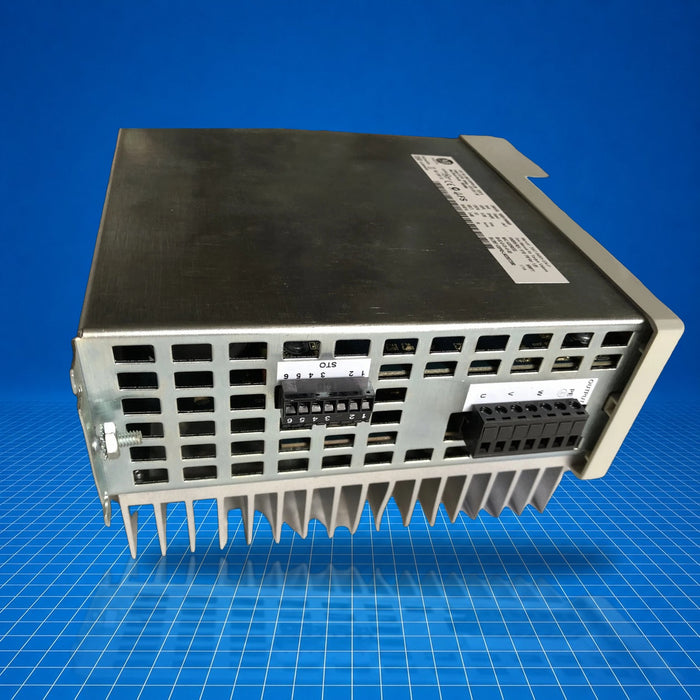

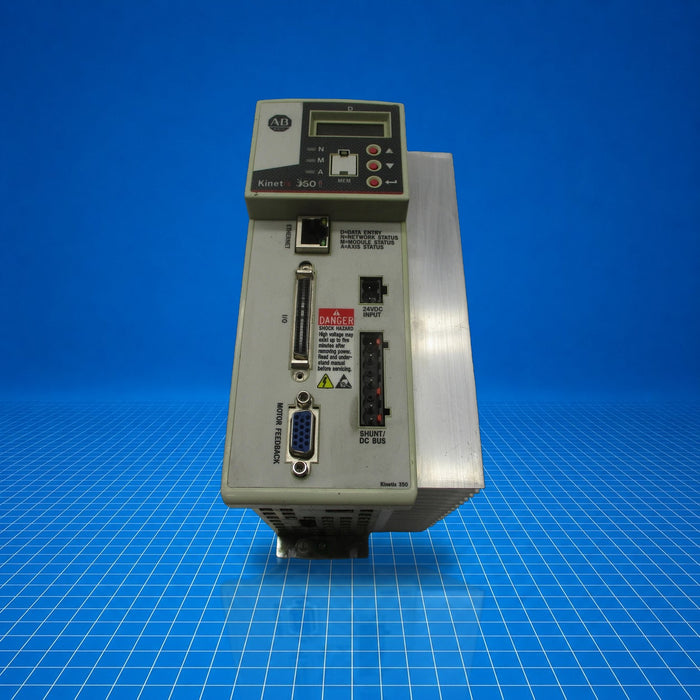

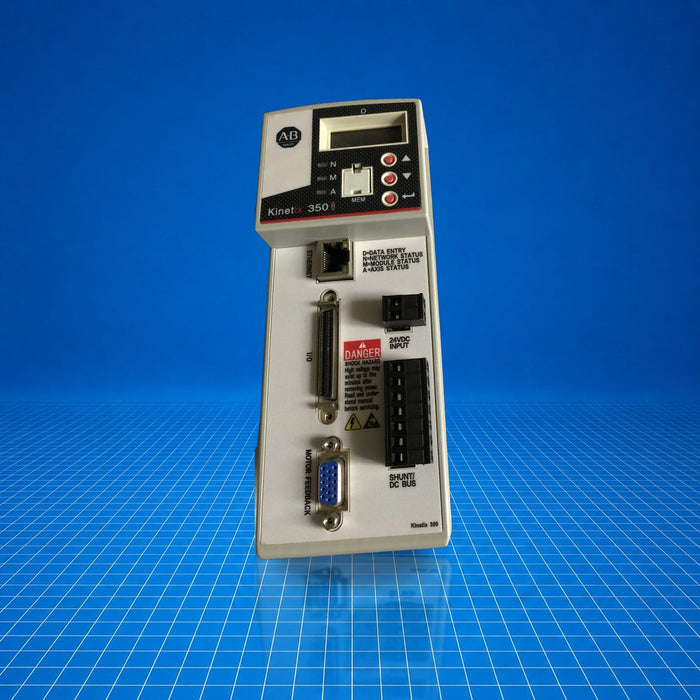

2097-V33PR5-LM Allen-Bradley
Original price
$4,112.50
-
Original price
$14,772.00
Original price
$4,112.50
$4,112.50
-
$14,772.00
Current price
$4,112.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2097-V33PR5-LM is an Allen-Bradley Kinetix 350 single-axis servo drive with EtherNet/IP communication and Safe Torque-Off (STO) functionality. It delivers 2.0 kW power and up to 11.3 A (0-pk) continuous output current, serving indexing and motion control tasks in manufacturing and automation systems. Typically deployed for compact motion axes, machine integration with ControlLogix/CompactLogix, or retrofit of existing Kinetix installations. 2097-V33PR5-LM is purpose-built for precision indexing in Ethernet-based control platforms.
Best Suited For
- EtherNet/IP-based indexing motion control
- CompactLogix / ControlLogix integrated architectures
- Single-axis servo applications in manufacturing
- Safe Torque-Off safety-compliant systems
Power rating
2.0 kW
Continuous output current (0-pk)
11.3 A
Input voltage (AC)
80-132 VAC 1-phase; 80-264 VAC 1-phase or 3-phase
Safe Torque-Off
Yes
Technical Specifications
I/O & Electrical
Input voltage (nominal)
80-132 VAC 1-phase; 80-264 VAC 1-phase; 80-264 VAC 3-phase
Input frequency
48-62 Hz
Continuous output current (rms)
8.0 A
Continuous output current (0-pk)
11.3 A
Peak output current (rms)
24.0 A
Peak output current (0-pk)
33.9 A
Control-power back-up input voltage
20-26 V DC
Control-power back-up input current, nominal
500 mA
Control-power back-up input current, max inrush
30 A
Communication & Power
EtherNet/IP port
Embedded
Safe Torque-Off
Yes
Power rating
2.0 kW
Main AC input current nominal (120/240 V 1-phase)
15.0 A
Main AC input current nominal (240 V 3-phase)
8.7 A
Max inrush (120/240 V)
1.15 A
Max inrush (240 V 3-phase)
2.3 A
Physical & Environmental
Dimensions (H×W×D)
238 × 94 × 185 mm (9.37 × 3.7 × 7.3 in)
Weight
2.0 kg (4.4 lb)
Operating temperature
0-40 °C (32-104 °F)
Required side clearance
3 mm
Required top/bottom/rear clearance
25 mm
