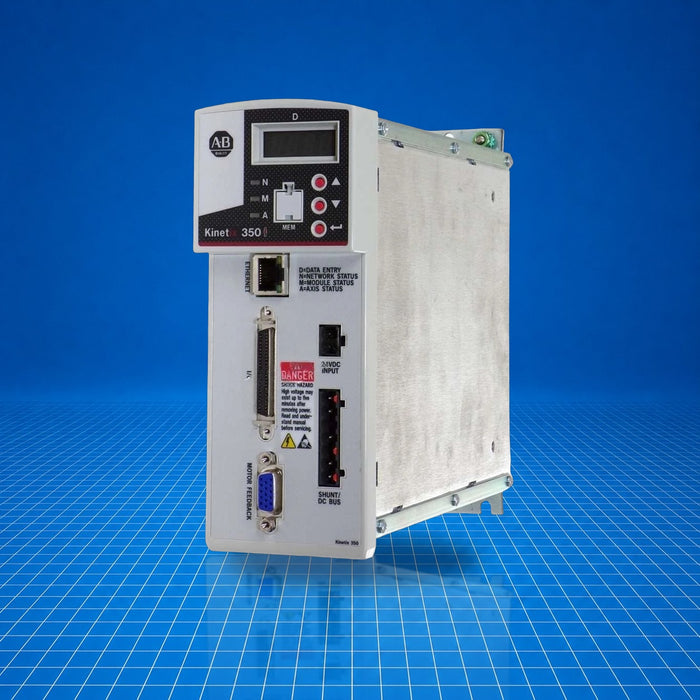

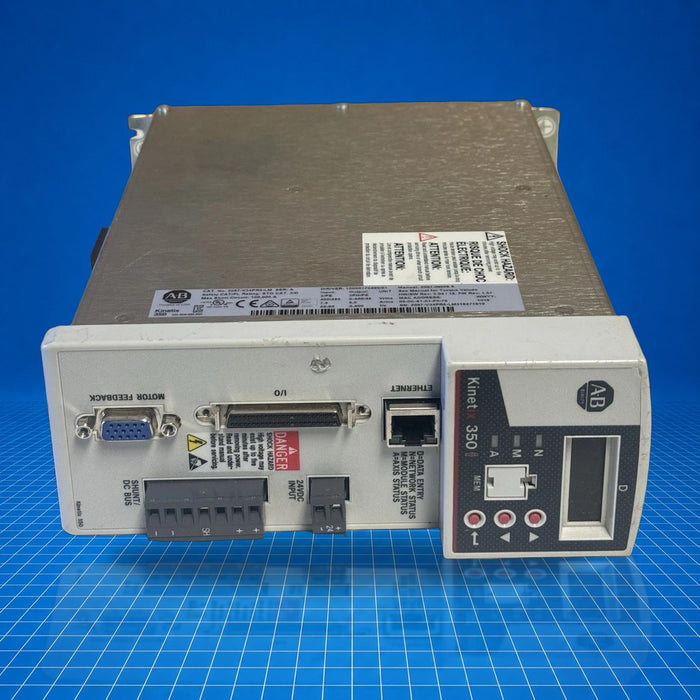

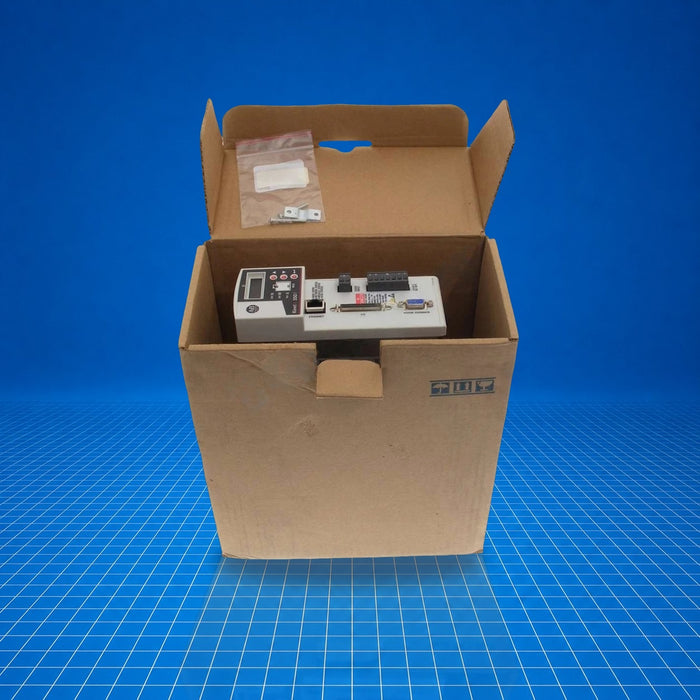

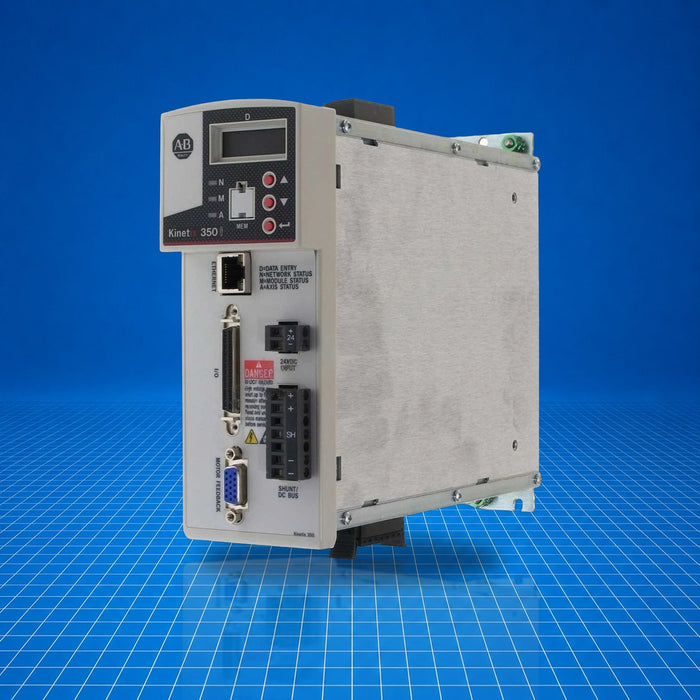

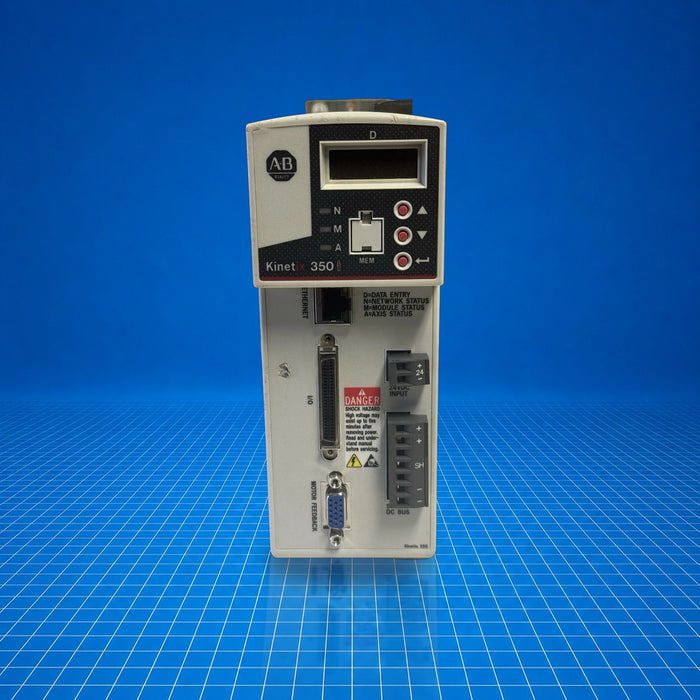

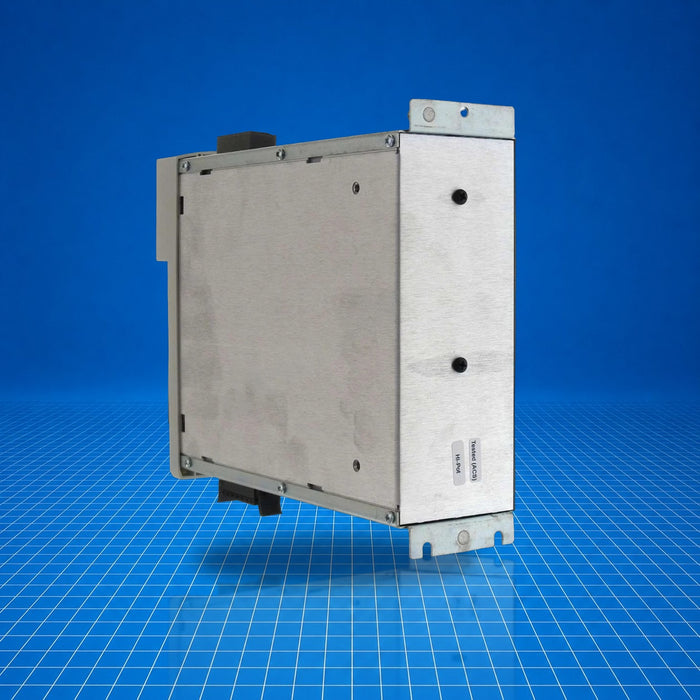

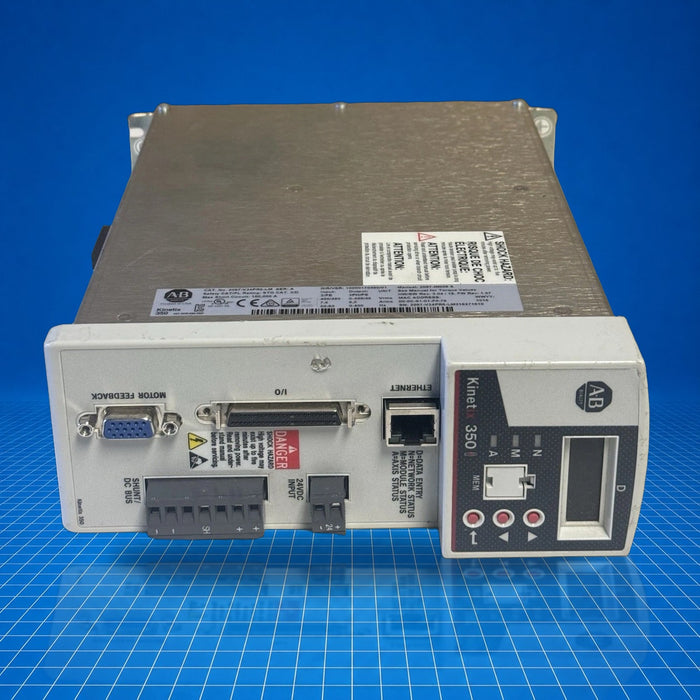

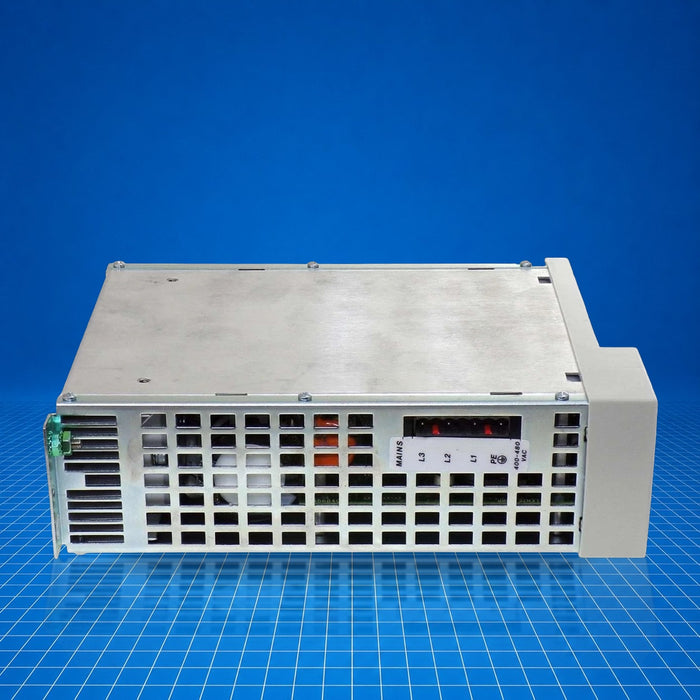

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

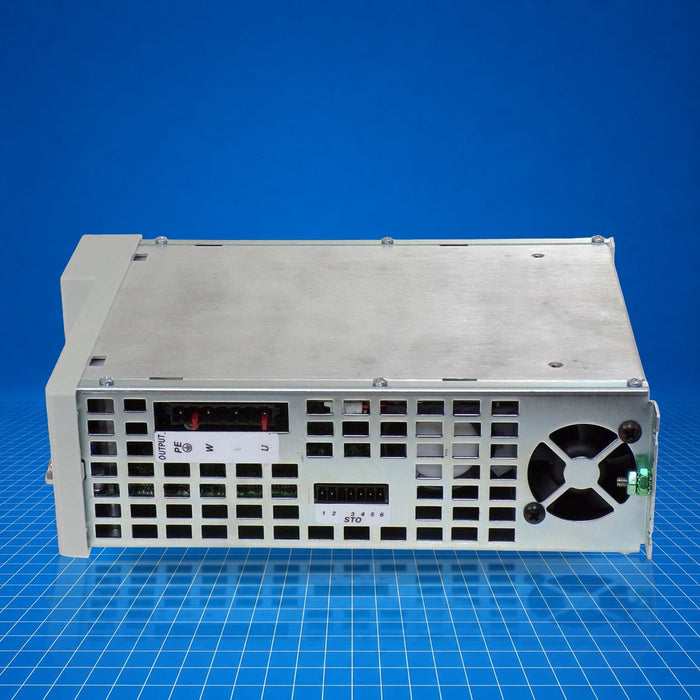

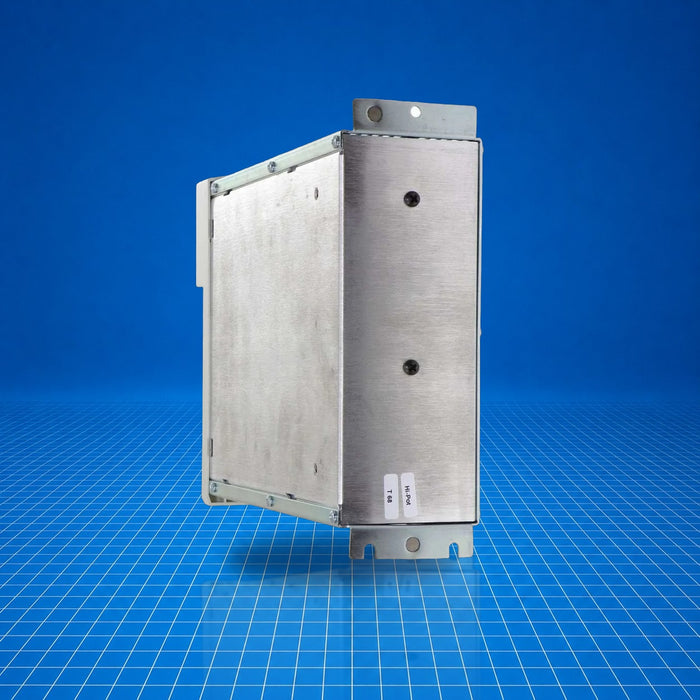

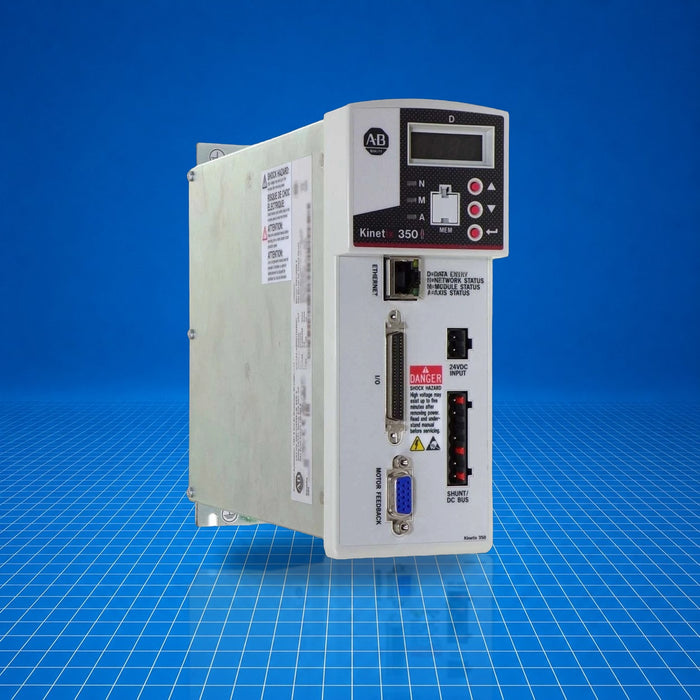

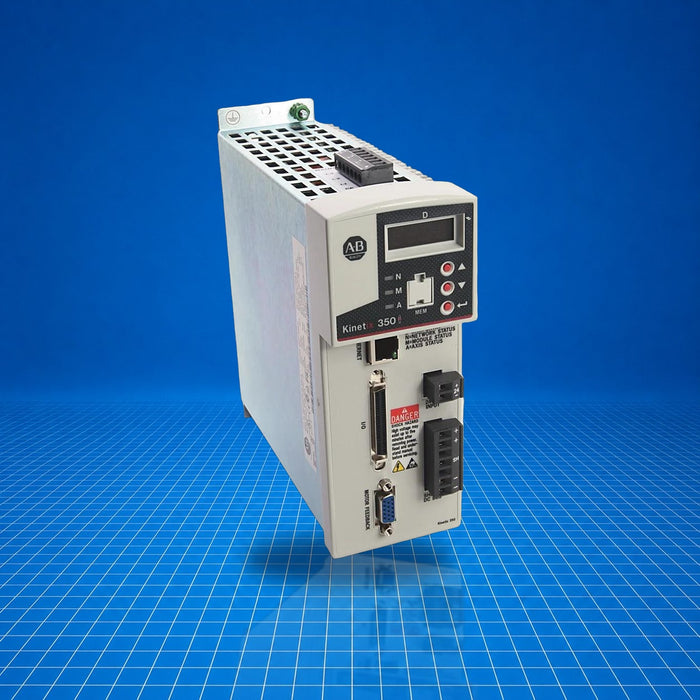

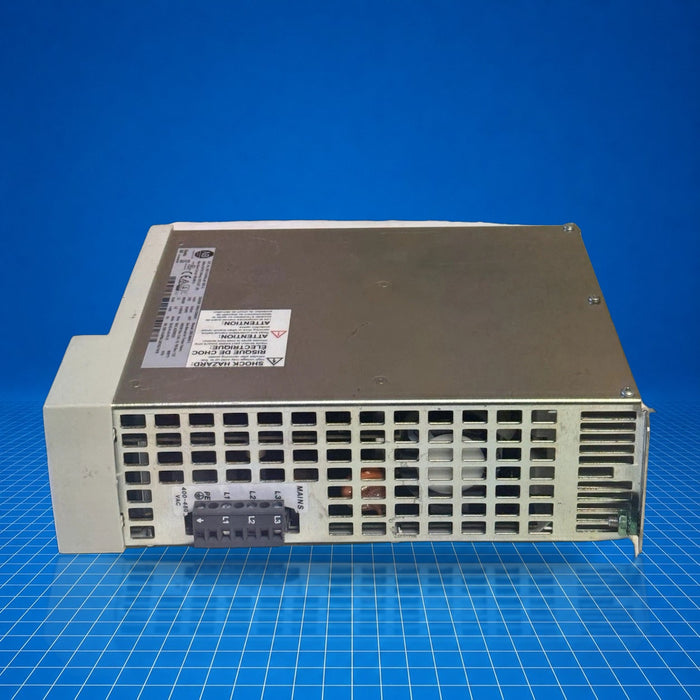

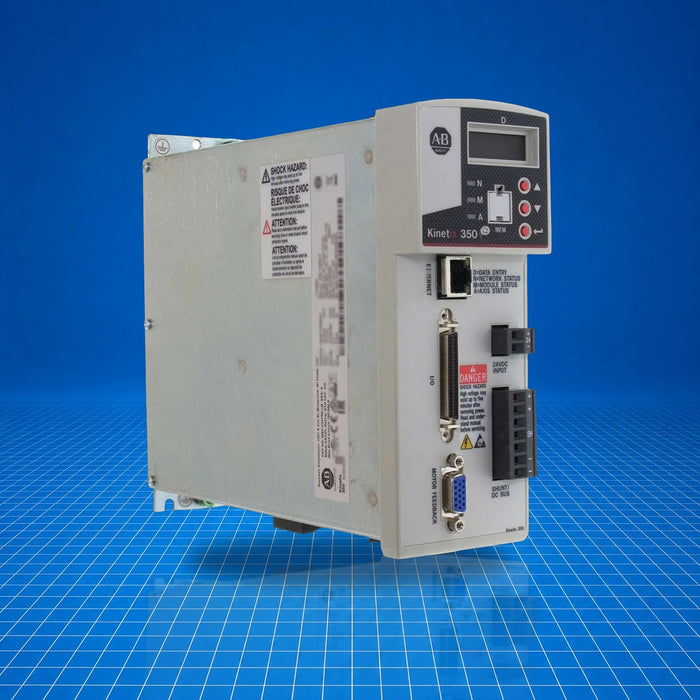

2097-V34PR6-LM Allen-Bradley
Original price
$4,651.49
-
Original price
$7,947.95
Original price
$4,651.49
$4,651.49
-
$7,947.95
Current price
$4,651.49
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2097-V34PR6-LM is an Allen-Bradley Kinetix 350 single-axis EtherNet/IP servo drive rated at 3.0 kW continuous power. It operates from three-phase AC supply and provides servo control with Safe Torque-Off capability. As part of the 2097 family of Kinetix 300/350 drives, it integrates into Logix-based motion systems and pairs with MP and TL series servo motors. Suitable for indexing and point-to-point motion control in packaging, assembly, pick-and-place, and material-handling machinery, 2097-V34PR6-LM is now discontinued but still used in retrofit and legacy systems.
Best Suited For
- Indexing motion control in packaging machinery
- Replacement in legacy Kinetix 350 installations
- Integration with MP-series and TL-series servo motors
- Logix-based motion systems over EtherNet/IP
Continuous power output
3.0 kW
Continuous output current (rms/0-pk)
6.0 A / 8.5 A
Input voltage range
320 … 528 VAC 3-phase (480 VAC nominal)
Safe Torque-Off
Yes (ISO 13849-1 PL d)
Weight
4.0 lb (1.8 kg)
Technical Specifications
I/O & Electrical
Input voltage
320 … 528 VAC 3-phase (480 VAC nominal)
Input frequency
48 … 62 Hz
Main AC input current nominal (rms)
7.9 A
Main AC input current maximum inrush (0-pk)
22.6 A
Continuous output current (rms)
6.0 A
Continuous output current (0-pk)
8.5 A
Peak output current (rms)
18.0 A
Peak output current (0-pk)
25.5 A
Control power back-up input voltage
20 … 26 V DC
Control power back-up input current nominal
500 mA
Control power back-up input current max inrush
30 A
Power rating
3.0 kW
Communication & Power
Communication interface
EtherNet/IP
Safe Torque-Off
Yes (ISO 13849-1 PL d)
Physical & Environmental
Dimensions (H×W×D)
9.37 × 7.29 × 3.06 in (238 × 185.1 × 12.38 mm)
Weight
4.0 lb (1.8 kg)
