2099-BM06-S Allen-Bradley
Original price
$0.00
-
Original price
$5,430.00
Original price
$5,430.00
$0.00
-
$5,430.00
Current price
$5,430.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

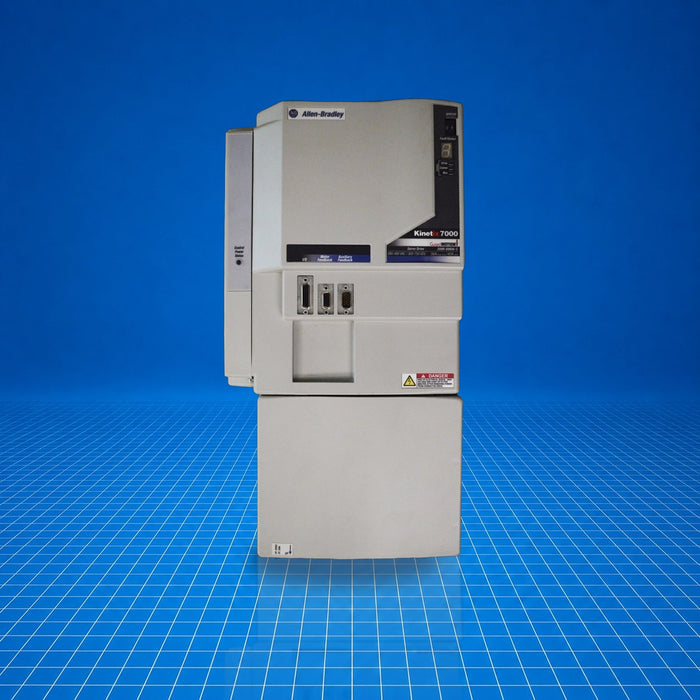

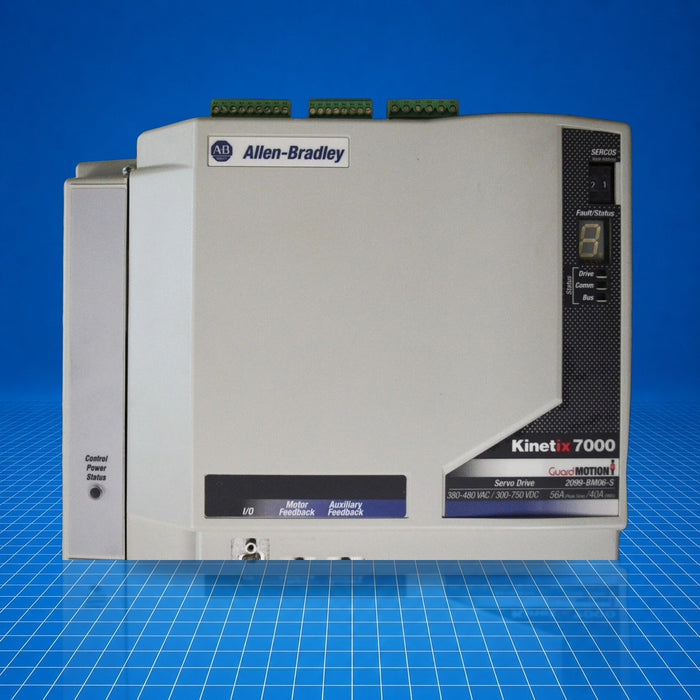

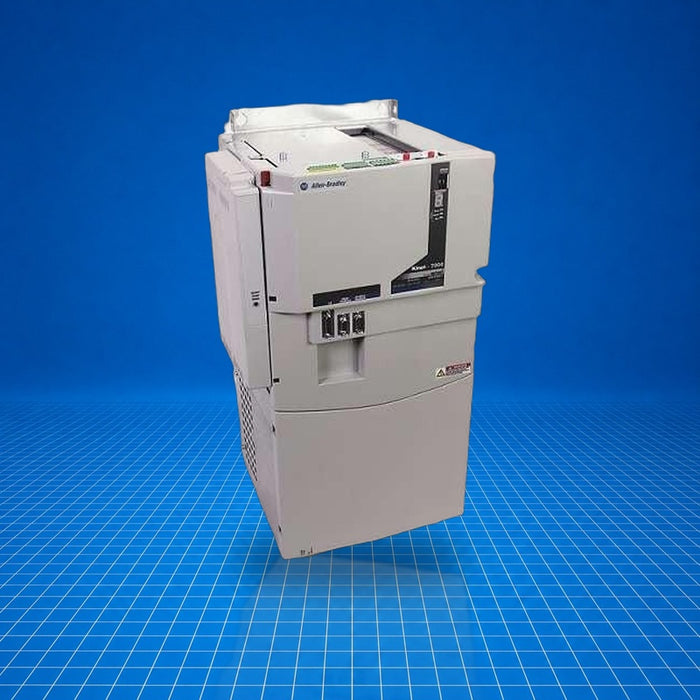

The 2099-BM06-S is an Allen-Bradley Kinetix 7000 high-power servo drive with Safe Torque Off functionality. As part of the 2099 Kinetix 7000 Series A platform, it delivers 22 kW continuous output and integrates within motion control systems requiring single-axis positioning over a SERCOS network. It is typically used in industrial servo applications such as machine tool axes, packaging automation, and robotic arm control. The 2099-BM06-S facilitates precise torque and speed control in high-power servo installations.
Best Suited For
- High-power single-axis motion control
- SERCOS-based servo systems
- Applications requiring Safe Torque Off
- Machines with 22 kW/30 HP continuous output requirement
Continuous Power
22 kW
AC Input Current (nom RMS)
36.7 A
DC Input Voltage
450-750 V DC
Certifications
UL, CE, C-Tick, cULus
Technical Specifications
I/O & Electrical
AC Input Voltage
342-528 V AC (3-phase)
AC Input Frequency
47-63 Hz
AC Input Current (nom RMS)
36.7 A
DC Input Voltage
450-750 V DC
DC Input Current
42.9 A
Continuous Output Current (0-peak)
56 A
Total Capacitance
1800 µF
Communication & Power
Continuous Output Power
22 kW
Physical & Environmental
Weight
41 lb (18.60 kg)
Operating Temperature
0-50 °C (32-122 °F)
Dimensions (H x W x D)
20.37 × 10 × 8.83 in
Certifications
UL ListedCEC-TickcULus
Certified for UL, CE, C-Tick, cULus when properly marked.
