20D-HEID-D0 Allen-Bradley

Name: 20D-HEID-D0 Allen-Bradley
Brand: Allen Bradley
SKU: 20D-HEID-D0
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

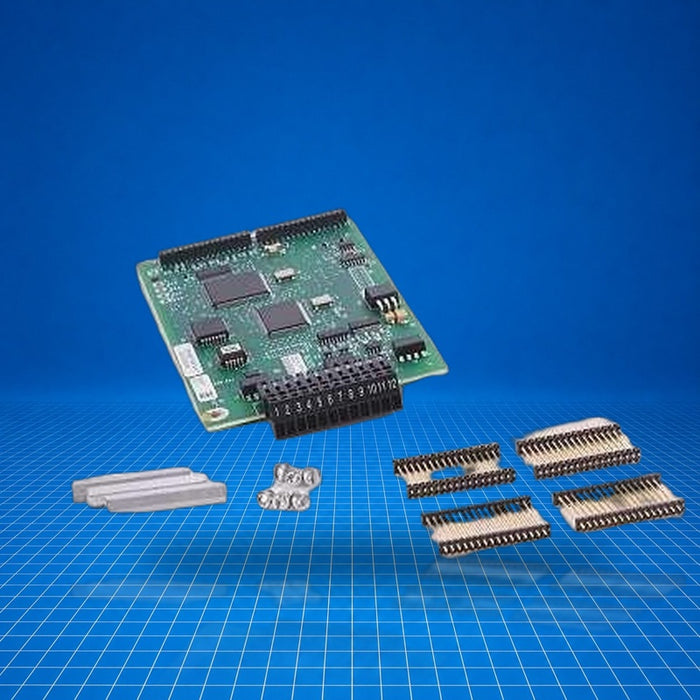

The 20D-HEID-D0 is an Allen-Bradley Heidenhain feedback option board designed for integration with PowerFlex 700S (and compatible 700L) AC drives. It provides high-resolution encoder feedback via the EnDat interface, enabling accurate position and speed control in motion systems. This module mounts into the drive's option slot to convert Heidenhain encoder signals into usable feedback for closed-loop applications in industrial automation. 20D-HEID-D0 is typically used in precise motor control loops in machinery and robotics.

Best Suited For

PowerFlex 700S series drives requiring Heidenhain EnDat feedback
High-precision motion control applications
Feedback integration in robotics or CNC systems
Replacement of existing Heidenhain feedback modules

Encoder resolution

1,024 Pulses per Revolution

Supply voltage

24 V DC

Mounting style

Option board (open-style enclosure)

Environmental resistance

Vibration 5 G (10-500 Hz), Shock 30 G operational / 50 G non-operational

Technical Specifications

I/O & Electrical

Encoder resolution

1,024 PPR

Supply voltage

24 V DC

Communication & Power

Encoder interface

Heidenhain EnDat

Physical & Environmental

Weight

0.31 kg (0.69 lbs)

Vibration resistance

5 G at 10-500 Hz

Shock resistance

30 G operational; 50 G non-operational

Operating altitude

Up to 1,000 m (3,300 feet) without derating

Certifications

CERoHS

EU Declaration of Conformity to EMC (2014/30/EU) and RoHS (2011/65/EU 2015/863); standards EN 61800-3 (EMC) and EN IEC 63000 (RoHS) per CE documentation issued 28-Jan-2026.

1-Year Warranty

Every tested unit is backed by our free 1-year PLC Department warranty, direct from us.

Fast Shipping

Free ground shipping. Orders by 1 PM CST ship same-day, with overnight available.

USA Stock

Sourced and shipped from Texas, USA. Never anonymous overseas marketplace stock.

30-Day Returns

Hassle-free RMA. If the part is not right for your application, send it back within 30 days.

Reseller Options →

Resellers welcome. Reach out for volume pricing and we will get you set up.
