20D-MDI-C2 Allen-Bradley

Name: 20D-MDI-C2 Allen-Bradley
Brand: Allen Bradley
SKU: 20D-MDI-C2
Price: 687.47 USD
Availability: InStock

$687.47 - $1,437.48

$687.47

$687.47 - $1,437.48

$687.47

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

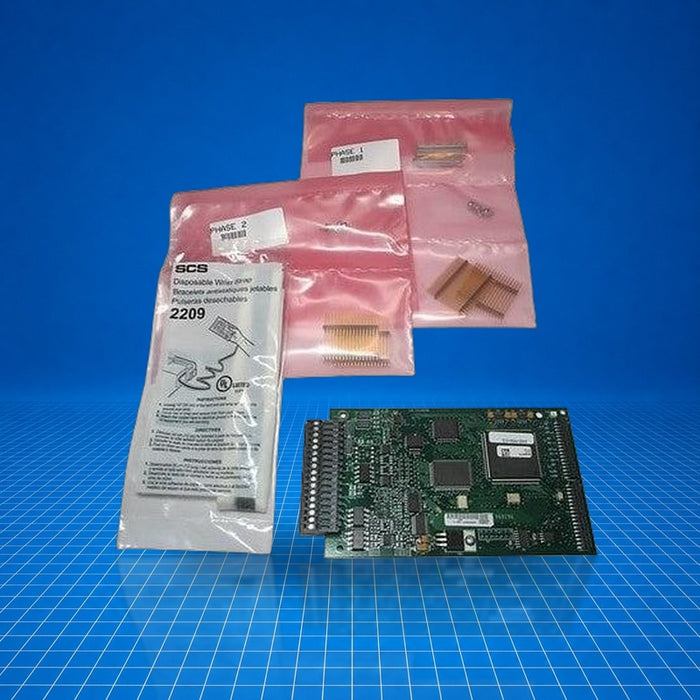

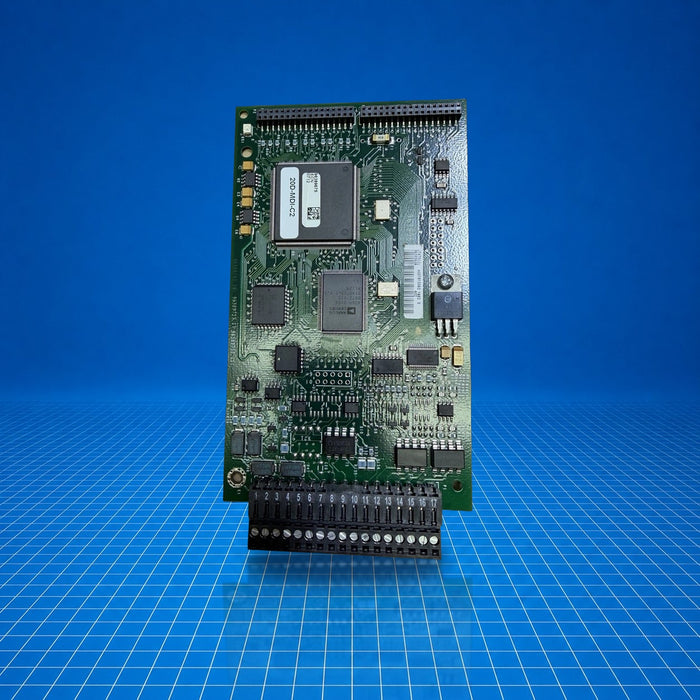

The Allen-Bradley 20D-MDI-C2 is a Multi-Device Interface option board for PowerFlex 700S drives using Phase II control. It serves as a feedback interface module that enables the integration of multiple encoder or sensor devices into the drive control system. Typically, this module supports linear or rotary position sensor inputs (such as SSI-based encoders or Temposonics linear sensors), providing synchronized feedback for motion control applications in industrial drives. The 20D-MDI-C2 augments drive control functionality within Phase II cassette architectures.

Best Suited For

PowerFlex 700S drives with Phase II control
Integration of SSI encoders or Temposonics linear sensors
Applications requiring synchronized multi-device feedback
Modular industrial motion control systems

Product type

Multi-Device Interface option board

Drive platform

PowerFlex 700S (Phase II control)

Function

Encoder/linear sensor feedback interface

Lifecycle status

Discontinued (Dec 31, 2021)

Technical Specifications

I/O & Electrical

Host interface

Phase II control cassette slot

Supported sensor input voltage

+24 V DC

Communication & Power

Feedback protocols

SSI (binary or Gray code), vendor-specific

Power source

Drive host control power via cassette backplane
