20DD014A0EYNANANE Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

20DD014A0EYNANANE Allen-Bradley

$0.00 - $5,863.49
$5,863.49
$0.00 - $5,863.49
$5,863.49
Surplus - Tested (With Warranty)
Need a Specific Revision?
$5,863.49
4 in stock
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

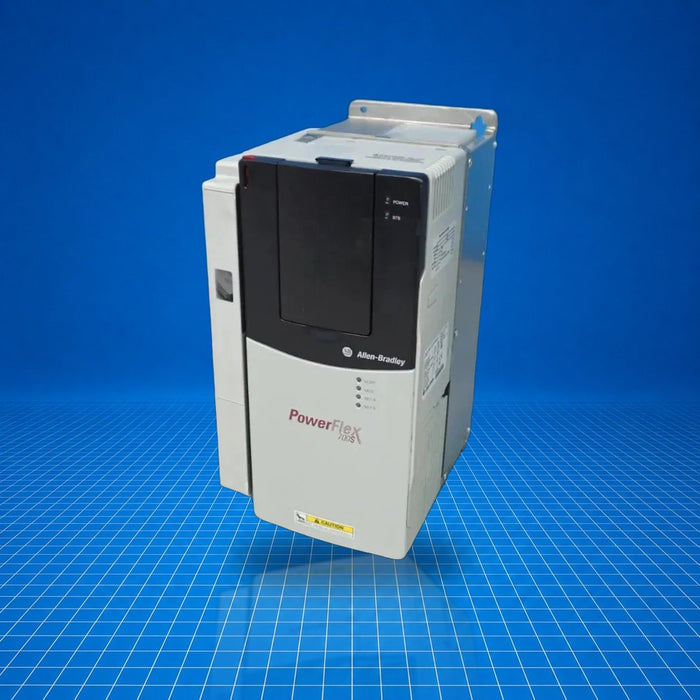

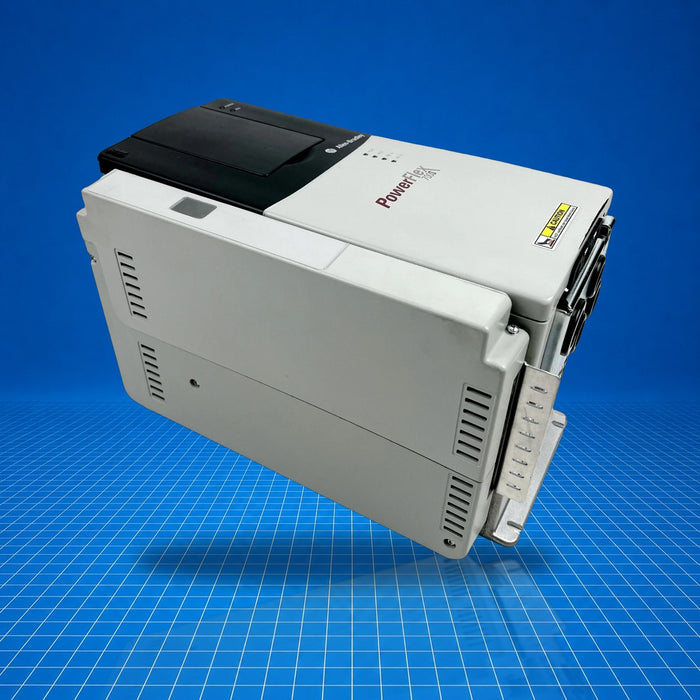

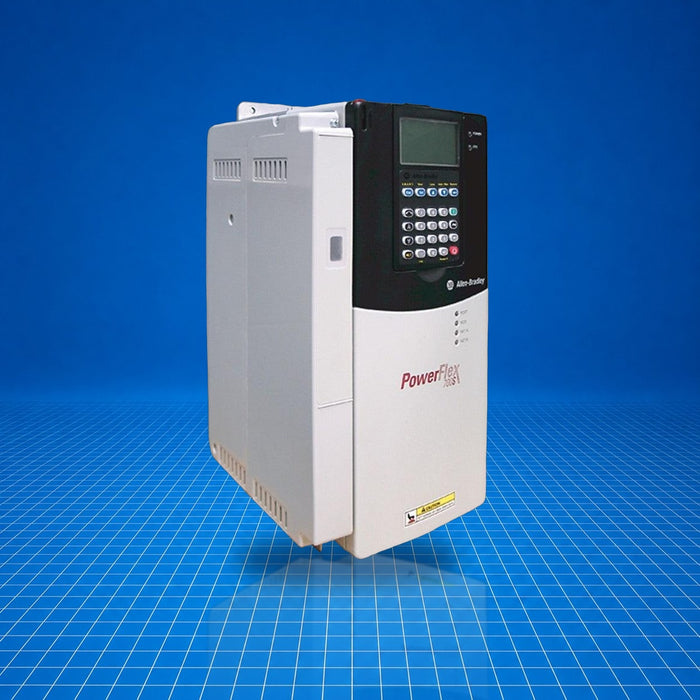

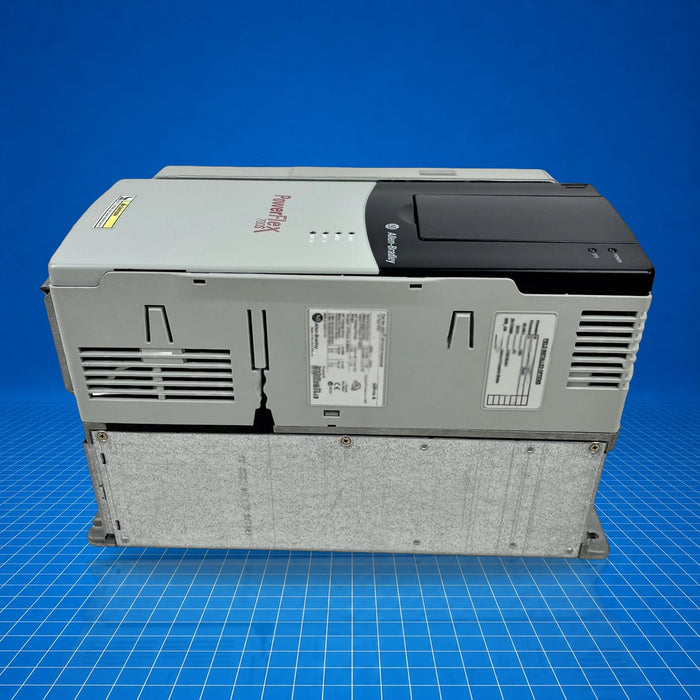

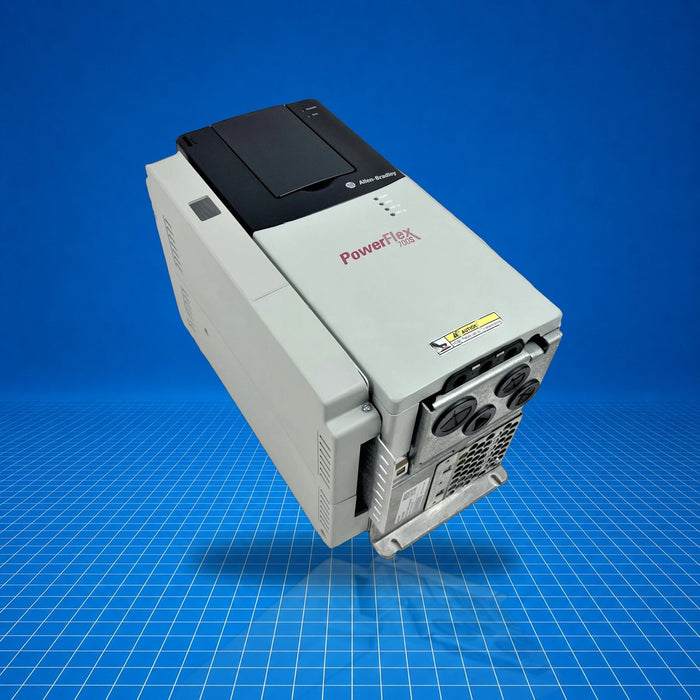

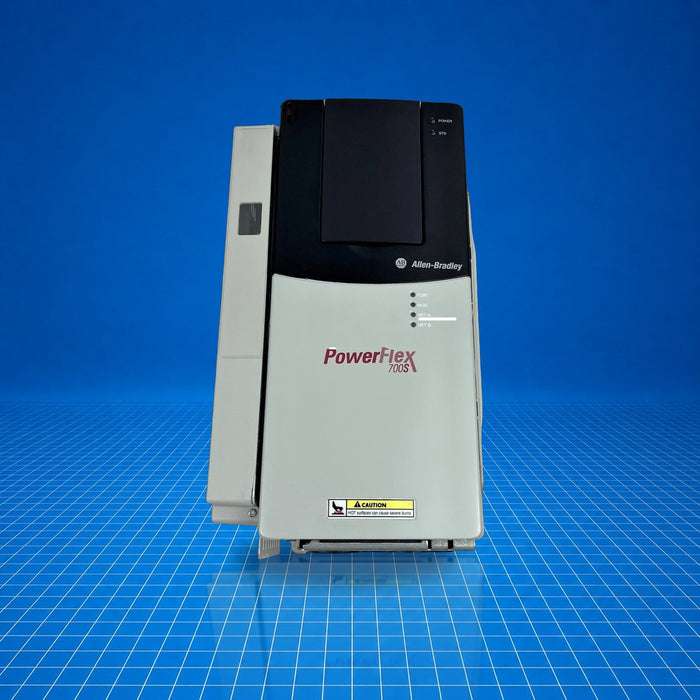

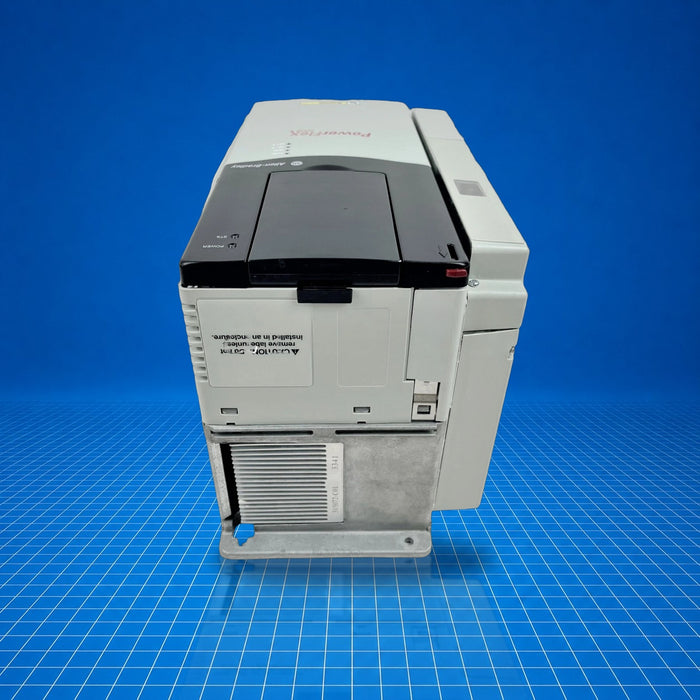

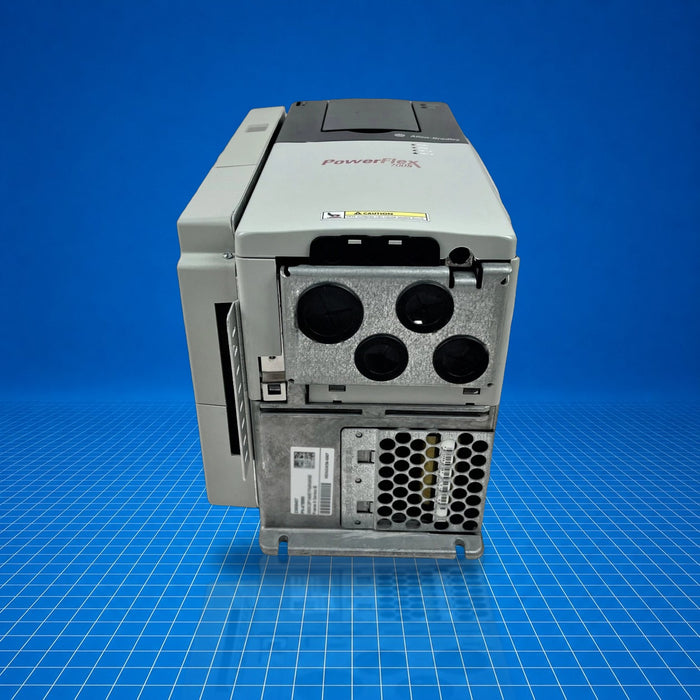

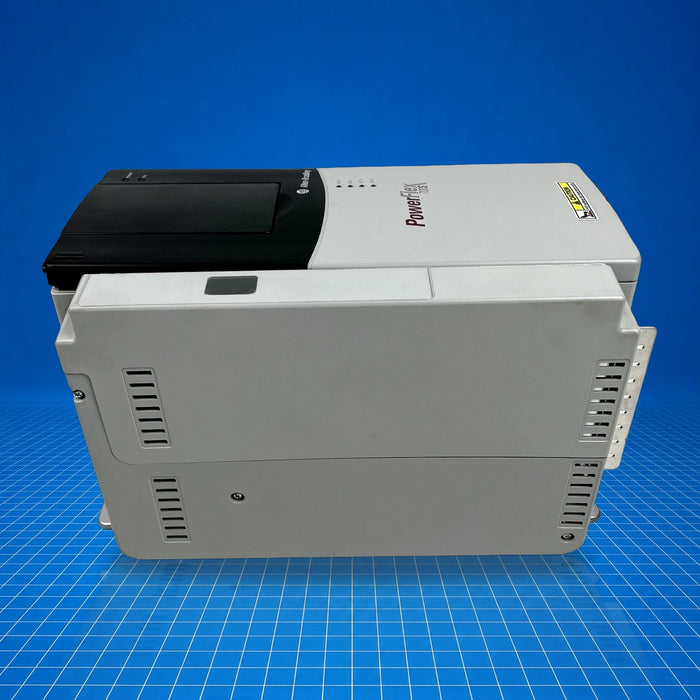

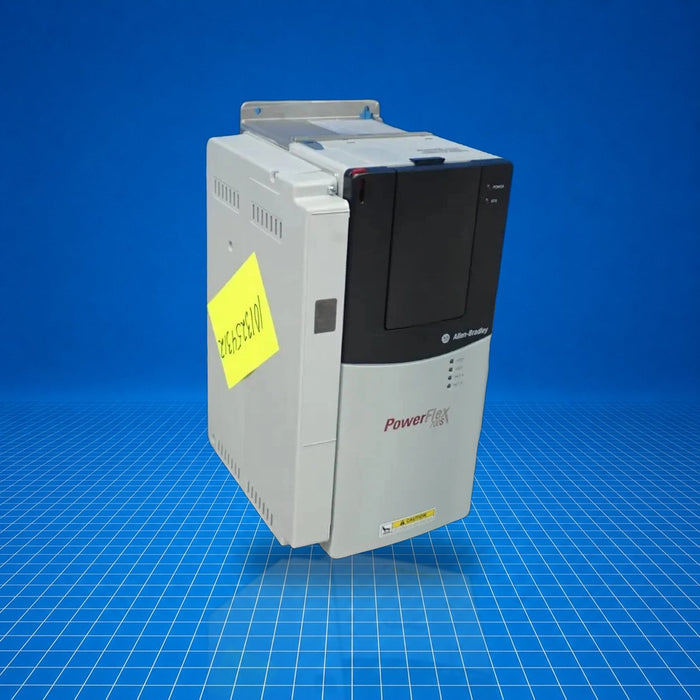

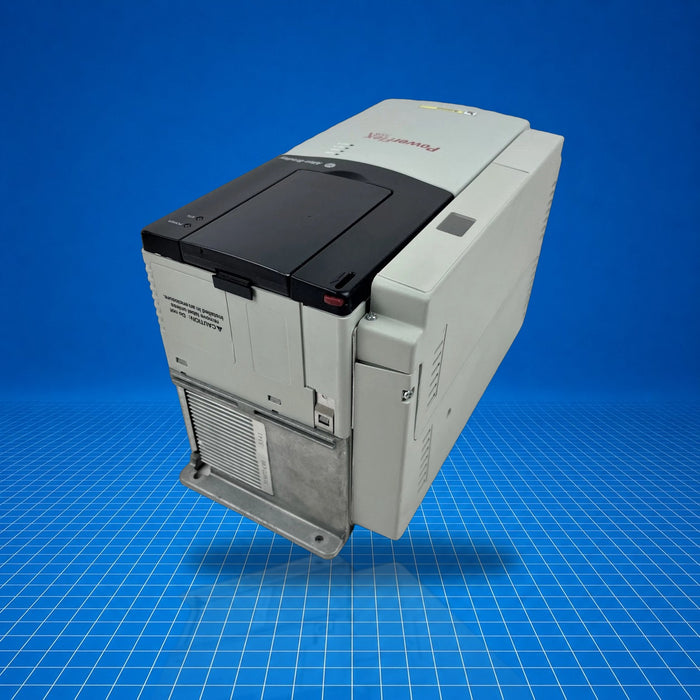

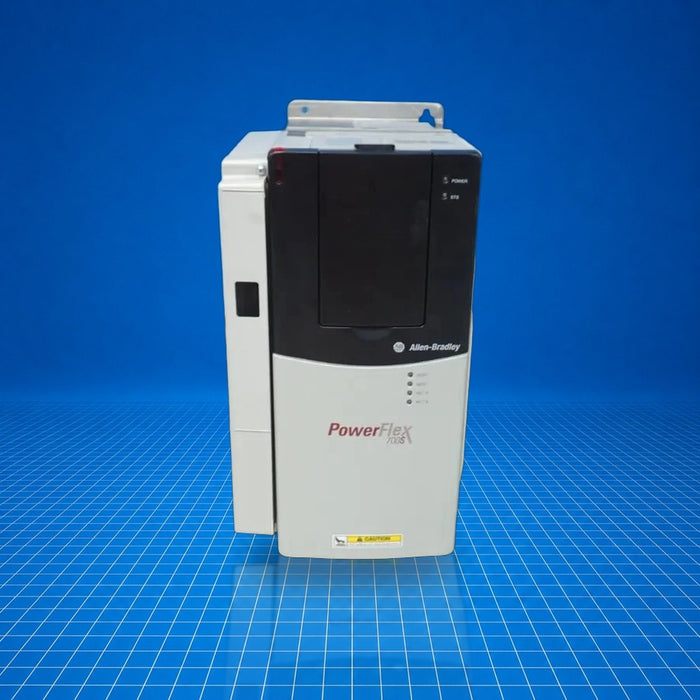

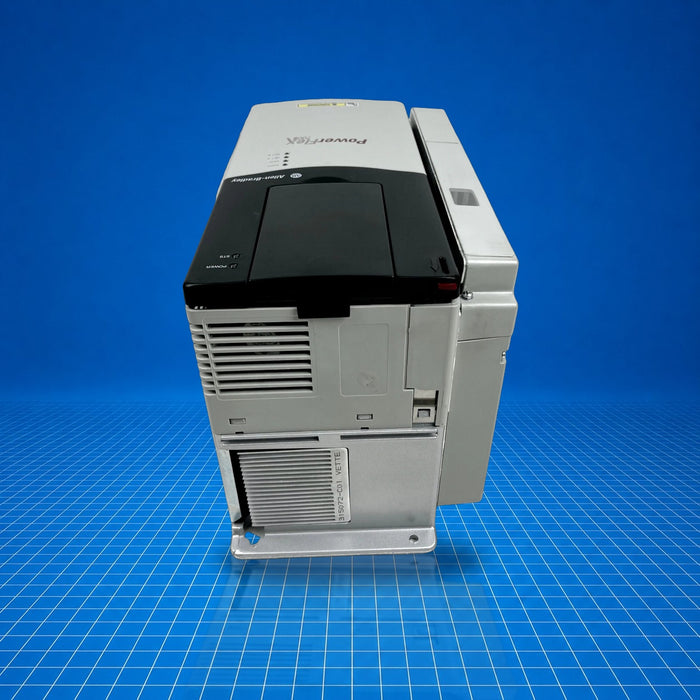

The 20DD014A0EYNANANE is an Allen-Bradley PowerFlex 700S AC Drive, frame 1. It provides variable frequency motor control for three-phase AC motors in industrial automation systems. Designed for 480 V AC input (six-pulse), the 14 A drive supports normal-duty ratings of 10 HP (7.5 HP heavy duty) and is used for pump, fan, and conveyor motor control in manufacturing, material handling, and similar applications. It integrates motor protection and control logic within the PowerFlex 700S platform. (20DD014A0EYNANANE)

Best Suited For

  • Variable-frequency motor drives up to 10 HP at 480 V AC
  • Three-phase motor control in industrial pumps and fans
  • Normal and heavy-duty intermittent load applications
  • Plant floor retrofit or OEM machinery motor drive replacements
Frame size
1 (PowerFlex 700S)
Input voltage
480 V AC, three-phase, 60 Hz
Continuous output current
14 A @ 650 V DC
Enclosure rating
IP20 / NEMA/UL Type 1
Weight
7.03 kg (approx.)

Technical Specifications

I/O & Electrical

Input voltage
480 V AC, three-phase, 60 Hz
Continuous output current
14 A @ 650 V DC
1-min output current
16.5 A @ 650 V DC
3-s output current
22 A @ 650 V DC
Fuse current rating
30 A @ 650 V DC
Motor protector rating
20 A @ 480 V AC, three-phase
Input power rating
10.4 kVA @ 480 V AC, three-phase
Watt loss
271 W @ 480 V AC, normal and heavy duty

Communication & Power

Brake IGBT
Installed
Internal communication module
None
Carrier frequency options
2, 4, 6, 8, 10 kHz (4 kHz base)
Motor overload protection
Class 10 NEC with over-temp per NEC 430.126(A)(2) UL 508C
Internal EMC filter
With EMC filter & common-mode choke

Physical & Environmental

Dimensions (H×W×D)
336 mm × 166.9 mm × 200 mm
Weight
7.03 kg (approx.)
Enclosure rating
IP20 / NEMA/UL Type 1
Shock
10 G peak, 11 ms
Vibration
0.152 mm displacement, 1 G peak, 5.5 Hz
Operating temperature
(not specified)
Mounting
Panel mount (frame 1)
Control ride-thru
0.25 s (drive not running)

Certifications

EAC

Eurasian Economic Community certified; UL 508C compliance for motor overload protection per NEC article 430.126(A)(2)
