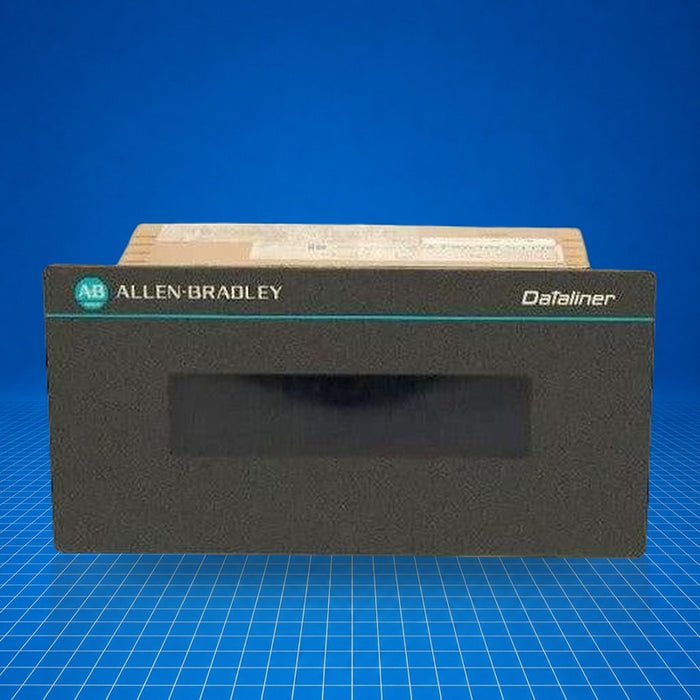

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2706-B23J31 Allen-Bradley
Original price
$0.00
-
Original price
$2,474.89
Original price
$2,474.89
$0.00
-
$2,474.89
Current price
$2,474.89
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 2706-B23J31 is a DL20 series DataLiner message display terminal designed to display factory or process messages in industrial automation systems. It functions as a two-line, 20-character vacuum fluorescent display (VFD) module, interfacing via RS-232 or RS-422 using ASCII input. Typically located on control panels or production lines, it conveys status, alerts, and operational data in manufacturing environments, packaging, or assembly systems. As a legacy component in Rockwell Automation's Dataliner family, 2706-B23J31 provides customer-selectable character sets and field-visible messaging.
Best Suited For
- Control panel annunciation
- Factory-floor status messaging
- Multi-line display of alerts or instructions
- Legacy system upgrades or replacements
Display
2-line, 20 characters (VFD)
Memory
31 K RAM
Input power
85-264 V AC
Communications
RS-232 and RS-422 (ASCII)
Enclosure
NEMA Type 12/13
Technical Specifications
I/O & Electrical
Memory
31 K RAM
Input type
ASCII
Communication & Power
Communications
RS-232; RS-422
Input voltage
85-264 V AC
Power consumption
30 VA @ 85 VAC (2-line)
Physical & Environmental
Display type
Vacuum Fluorescent Display (VFD), 2-line, 20 characters
Character height
0.44 in (11.3 mm)
Approx. viewing distance
25 ft (7.6 m)
Display size
14.4 × 14.4 in
Weight
6.75 lbs (3.06 kg)
Enclosure
NEMA Type 12/13
