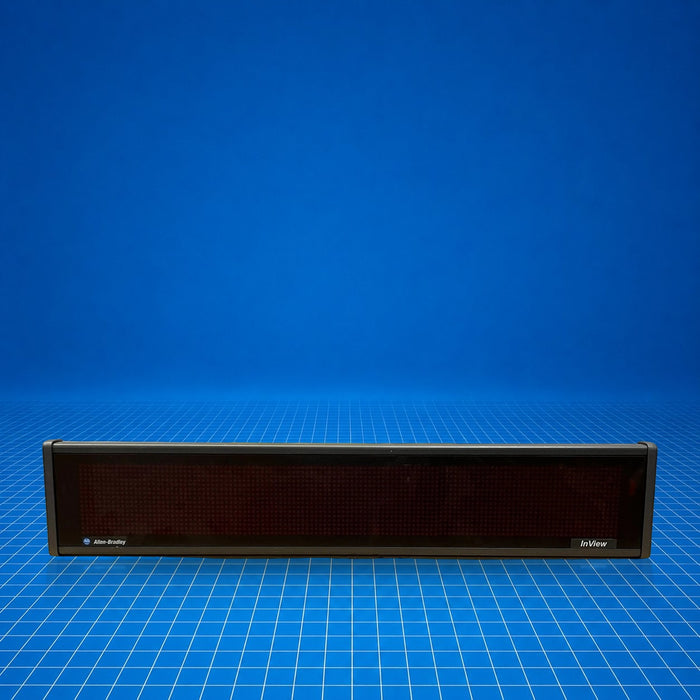

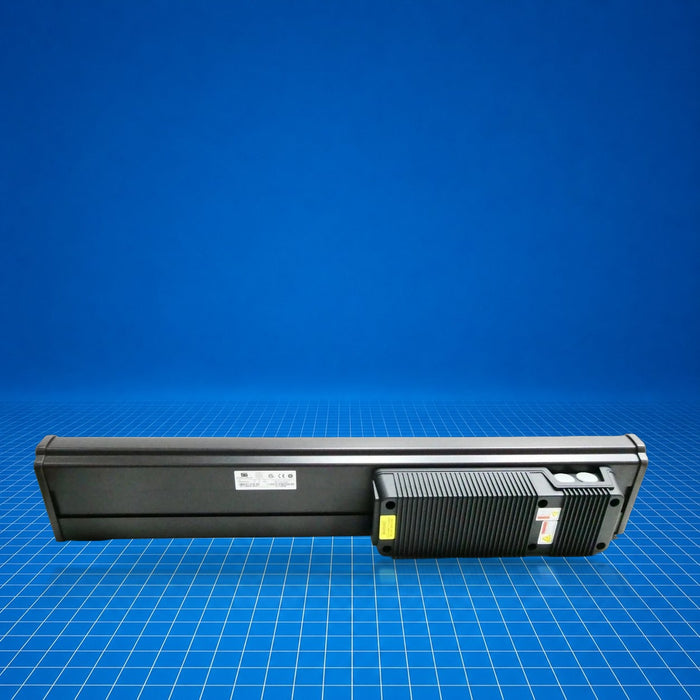

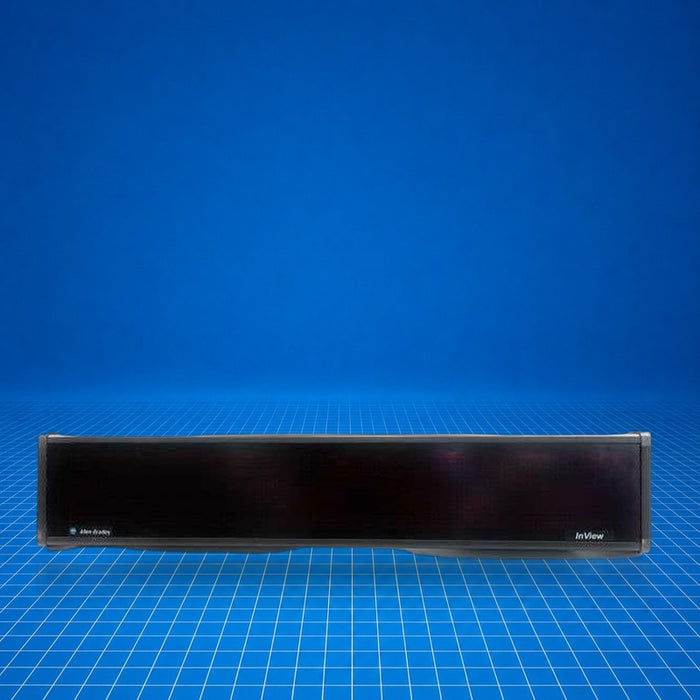

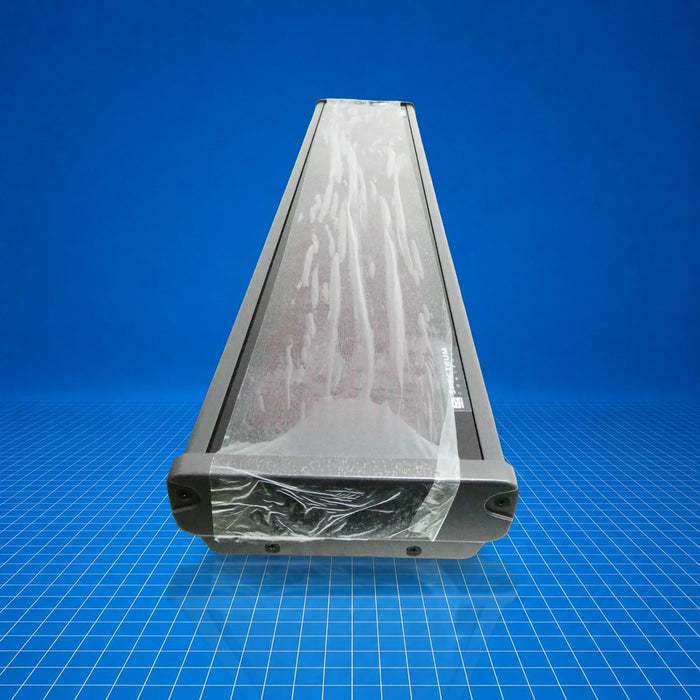

2706-P42R Allen-Bradley
Original price
$859.38
-
Original price
$2,738.14
Original price
$859.38
$859.38
-
$2,738.14
Current price
$859.38
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2706-P42R is an Allen-Bradley InView marquee-style message display (LED matrix) used to present status, alerts, or informational messages in industrial control systems. It mounts on a display cabinet or panel and functions as a visual annunciator in manufacturing, material handling, process control, and other facility environments. It supports one or two lines of text (12 or 20 characters per line, based on configuration) viewable from distances up to 60 m (200 ft). The 2706-P42R accepts both RS-232 and RS-485 communications and operates from 100-240 V AC.
Best Suited For
- Long-distance message annunciation (up to 200 ft)
- Systems using RS-232/RS-485 serial messaging
- ASCII-based message display (standard and extended ASCII)
- NEMA 12 indoor panel mounting environments
Display area
36 × 4.8 in (91.4 × 12.2 cm)
Viewing distance
60 m (200 ft)
Communication ports
RS-232, RS-485
Input power
100-240 V AC, 50-60 Hz
Memory capacity
4 000 messages
Technical Specifications
I/O & Electrical
Display resolution (pixels)
120 × 16 or 240 × 16
Lines/characters per line
1 or 2 lines; 12 or 20 characters
Communication & Power
Communication
RS-232 and RS-485
Input voltage
100-240 V AC, 50-60 Hz
Physical & Environmental
Viewing distance
60 m (200 ft)
Operating temperature
0 to 50 °C (32 to 122 °F)
Relative humidity
5-95% non-condensing
Enclosure type
NEMA 12
Weight
12.45 kg (27.44 lb)
Dimensions (HxWxD)
14 × 103 × 20 cm (5.5 × 40.38 × 7.88 in)
