2711E-K14C6 Allen-Bradley
Original price
$1,449.98
-
Original price
$9,898.50
Original price
$1,449.98
$1,449.98
-
$9,898.50
Current price
$1,449.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

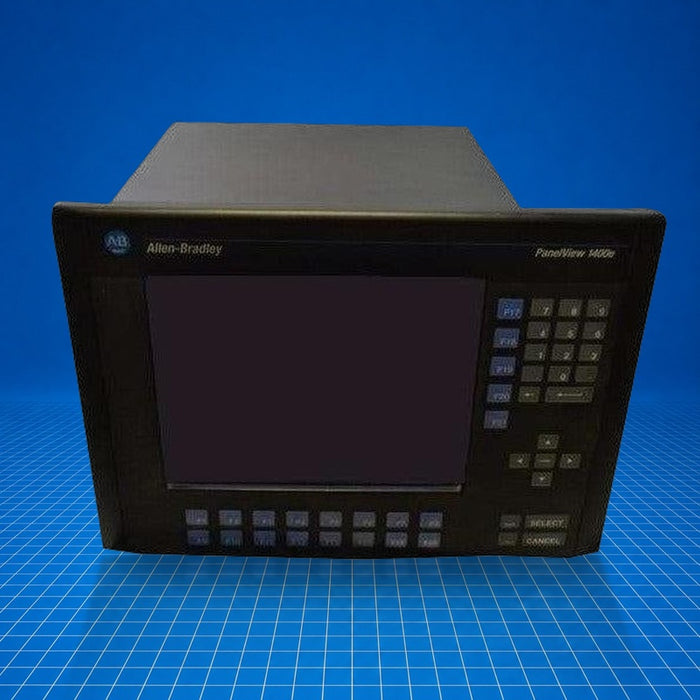

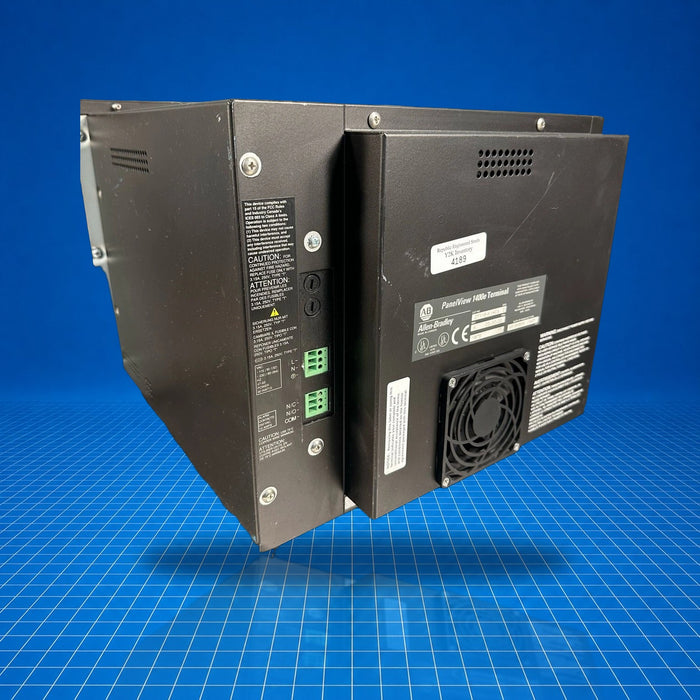

The Allen-Bradley 2711E-K14C6 is a PanelView Enhanced operator terminal in the PanelView 1400e family. It provides a 14-inch color CRT display with keypad input and supports Data Highway Plus (DH+) and Remote I/O communication. Hosting approximately 2.25 MB of user memory, it acts as an operator interface in control systems, enabling screen navigation, data input, and process monitoring. It is typically applied in industrial control panels, machine interfaces, legacy PLC applications, and environments requiring keypad-based HMI.
Best Suited For
- Retrofit into legacy PLC5, SLC500, CompactLogix, ControlLogix systems
- Applications where CRT display is acceptable and keypad operation preferred
- Indoor NEMA 4X control panel mounting
- Situations requiring DH+ or Remote I/O communication
Display size
14 in.
Display resolution
640 × 480 pixels
Memory
2.25 MB user
Input voltage range
85…264 V AC, 47…63 Hz
Communication ports
DH+ and Remote I/O
Technical Specifications
I/O & Electrical
Input voltage range
85…264 V AC, 47…63 Hz
Power consumption
60 W (typical) - 100 W (max)
Communication & Power
Communication ports
DH+ and Remote I/O
Memory
2.25 MB user flash
Physical & Environmental
Weight
~25 lb (11.34 kg)
Mounting
Stud-mount, NEMA 4X (indoor)
Panel cutout (H × W)
~326 × 483 mm (12.85 × 19.0 in.)
Installed depth
~404 mm (15.9 in.)
Certifications
UL 508 ListedcULusEU Low-Voltage Directive
UL-508 and cULus (CSA) listed; complies with EU Low-Voltage Directive.
