Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2711P-B10C4D7 Allen-Bradley
Original price
$0.00
-
Original price
$6,428.54
Original price
$6,428.54
$0.00
-
$6,428.54
Current price
$6,428.54
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

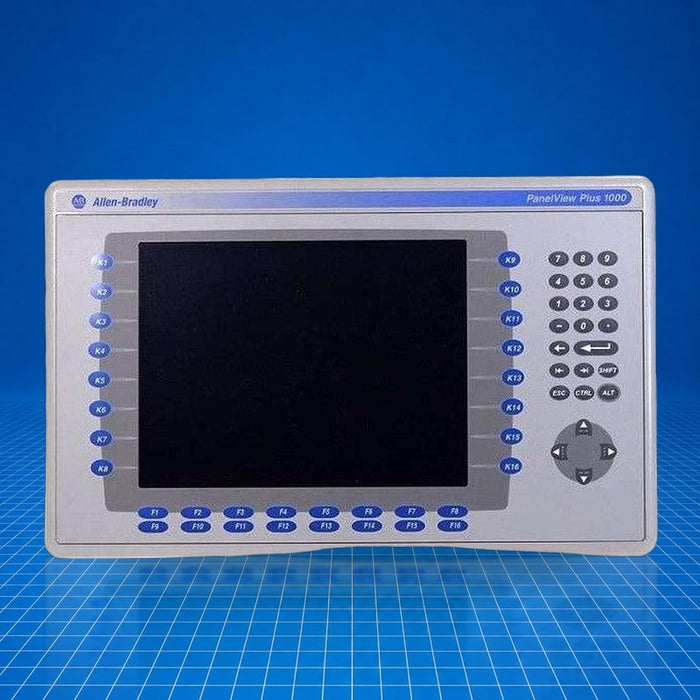

The Allen-Bradley 2711P-B10C4D7 is a PanelView Plus 1000 operator interface terminal. It provides both keypad and touchscreen input and is part of the PanelView Plus 1000 Series A-F platform. The terminal functions as a human-machine interface (HMI) within control systems, enabling operators to interact with programmable logic controllers (PLCs), view process data, and initiate machine functions. Typical industrial uses include machine control stations, operator panels for production lines, and integration into legacy systems where this PanelView Plus 1000 form factor is required. 2711P-B10C4D7
Best Suited For
- Applications using PanelView Plus 1000 Series A-F hardware footprint
- Operator interface where keypad plus touch input is required
- Retrofit or replacement of discontinued PanelView Plus 1000 terminals
- Environments supplying 18-32 V DC and requiring Ethernet/RS-232 connectivity
Display size
10.4 in.
Input voltage
18-32 V DC
Operator input
Keypad and touch
Memory
256 MB
Communication
Ethernet and RS-232
Technical Specifications
I/O & Electrical
Input voltage
18-32 V DC
Power consumption/dissipation
not specified
Communication & Power
Communication ports
Ethernet and RS-232
Physical & Environmental
Display size
10.4 in.
Display color
Color
Operator input
Keypad/Touchscreen
Weight
5.81 lbs (2.64 kg)
