2711P-B12C4D2 Allen-Bradley
Original price
$2,449.98
-
Original price
$4,911.75
Original price
$2,449.98
$2,449.98
-
$4,911.75
Current price
$2,449.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

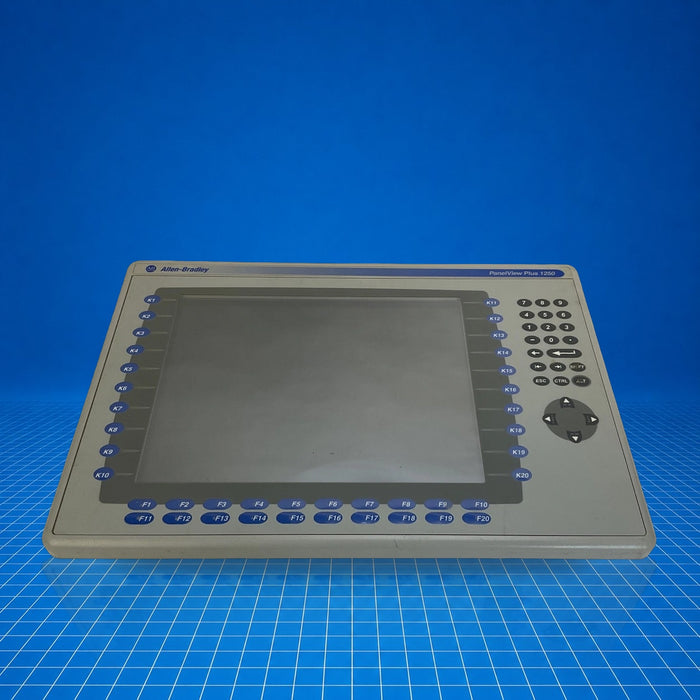

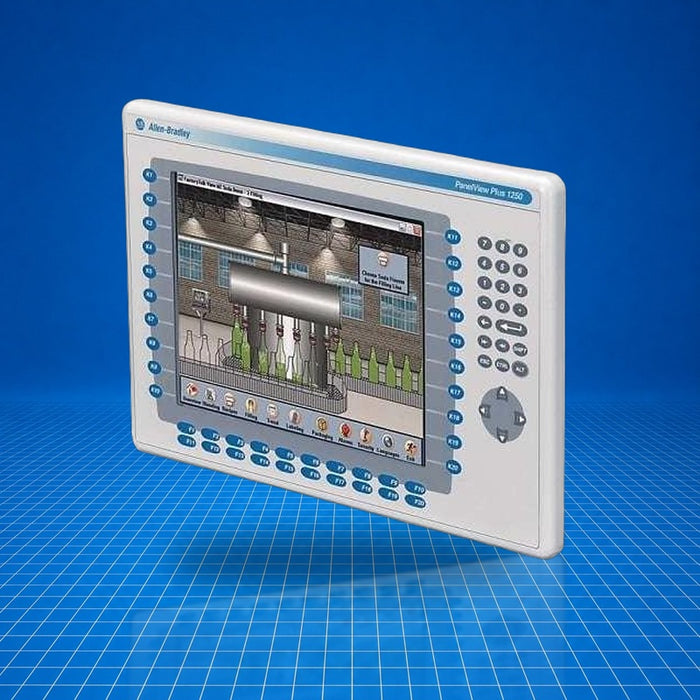

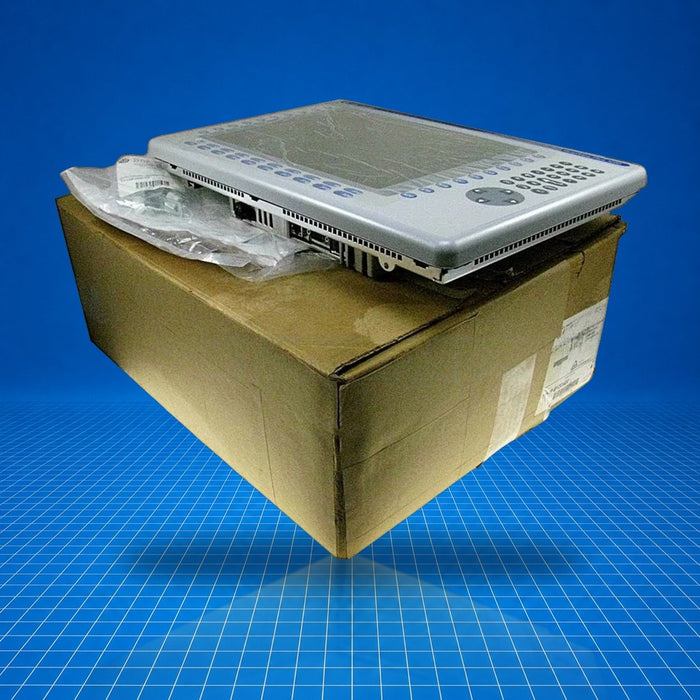

The 2711P-B12C4D2 is an Allen-Bradley PanelView Plus 1250 operator interface terminal. It provides a 12.1-inch color active-matrix TFT display with keypad and resistive touch input. Typically powered by 18-32 V DC, it integrates Ethernet, RS-232, and USB ports. In control systems, it serves as a human-machine interface for operator interaction, recipe handling and data display. It is used in standard industrial control panels, machine monitoring, batch processing stations and OEM machinery. The part number 2711P-B12C4D2 may appear only in conversion documentation, but shares specifications with other B12C4D models.
Best Suited For
- Machine operator interface in control panels
- Recipe loading and process monitoring
- Standard PanelView Plus 1250 applications
- Integration via Ethernet and RS-232
Display size
12.1 in
Display resolution
800 × 600, 18-bit color
Memory
512 MB RAM, 512 MB nonvolatile (~79 MB user)
Power consumption
70 W max (2.9 A @ 24 V DC), 39 W typical (1.6 A @ 24 V DC)
Ingress protection (front)
NEMA 4X, 12, 13; IP54, IP65
Technical Specifications
I/O & Electrical
Input voltage
18…32 V DC (24 V DC nominal)
Power consumption
70 W max (2.9 A @ 24 V DC); 39 W typical (1.6 A @ 24 V DC)
Communication & Power
Communication ports
1 × industrial Ethernet (10/100 Mbps); 1 × RS-232; 2 × USB
SD card slot
Hot-swappable SD/SDHC card
Physical & Environmental
Display type
12.1 in color active-matrix TFT, 800 × 600 resolution
Touch input
8-wire analog resistive, actuation 1 million presses, force 10…110 g
Keypad
Stainless-steel membrane, numeric/navigation/function keys (F1-F20, K1-K20), actuation 1 million presses, force 340 g
Dimensions (W×H×D)
416 × 282 × 55 mm
Cutout (Keypad)
390 × 257 mm
Weight
≈ 3.4 kg
Operating temperature
0 °C to 55 °C
Non-operating temperature
-25 °C
Shock/vibration
Operating: 15 G @11 ms; Non-operating: 30 G @11 ms; Vibration: 10-57 Hz, 0.012 in p-p; 57-500 Hz, 2 G
Certifications
Windows CE 6.0SD/USB support
