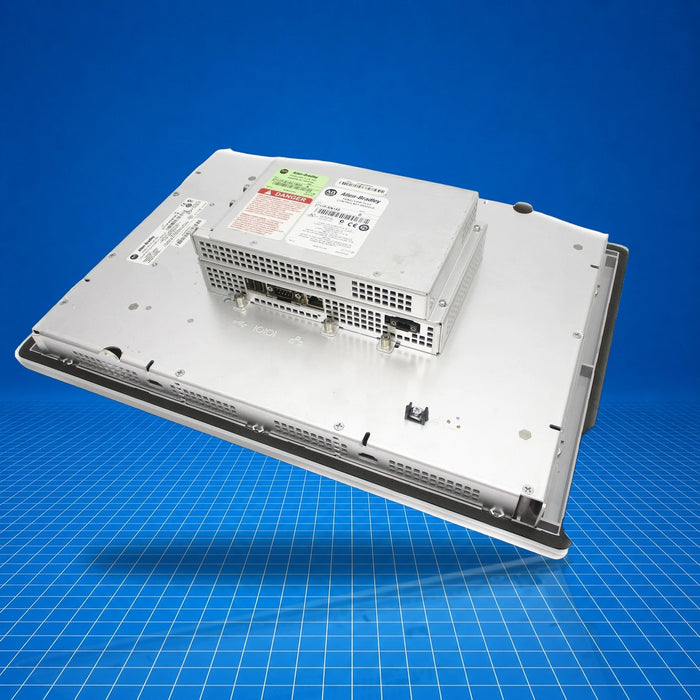

2711P-B15C15D2 Allen-Bradley

Original price $6,687.75 - Original price $7,432.50
Original price
$7,432.50
$6,687.75 - $7,432.50
Current price $7,432.50
Surplus - Tested (With Warranty)
Need a Specific Revision?
$7,432.50
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$6,687.75
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

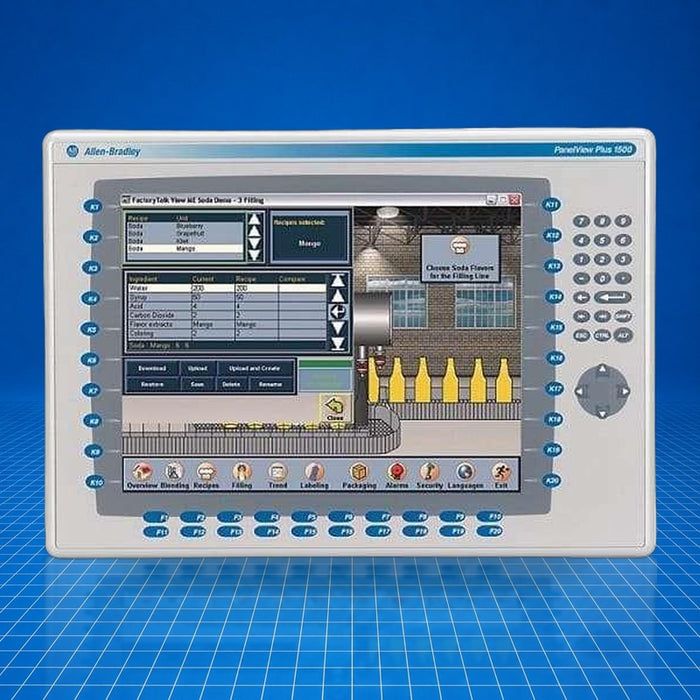

PanelView Plus 6 2711P-B15C15D2 is a 15-inch color HMI display terminal in the Allen-Bradley PanelView Plus 6 family. It provides keypad and touch operator input with integrated display module running Windows CE 6.0 with extended features. In control systems, it serves as the operator interface for monitoring and controlling processes, typically mounted on machine panels or operator stations in manufacturing environments. The display supports standard communications and is compatible with 24 V DC supply.

Best Suited For

  • Machine-mounted operator interface
  • PanelView Plus 6 systems requiring keypad and touch
  • Applications with 24 V DC power infrastructure
  • Integration with RS-232/Ethernet communication
Display size
15 in.
Resolution
1024 × 768, 18-bit color
Operator input
Keypad & touch
Power (DC) consumption
70 W max (2.9 A @ 24 V DC)
Memory
512 MB RAM, 512 MB non-volatile

Technical Specifications

I/O & Electrical

Input voltage
18…32 V DC (24 V DC nominal)
Power consumption
70 W max (2.9 A @ 24 V DC); 39 W typical (1.6 A @ 24 V DC)

Communication & Power

Communication ports
Ethernet (10/100 Mbps, Auto-MDI/MDI-X), RS-232, (2) USB host; optional DH+/DH-485 or ControlNet module
USB
Two USB host, hot-swappable for mouse/keyboard/printer/flash drives
SD card slot
Hot-swappable SD (1784-SDx/SDHCx)

Physical & Environmental

Dimensions (front)
Width 416 mm × Height 330 mm × Depth 65 mm
Display area
304 × 228 mm
Weight (approx)
Keypad: 4.5 kg; Touch: 4.2 kg
Operating temperature
0 °C
Non-operating temperature
-25 °C
Protection ratings
Front: NEMA 4X, NEMA 12,13; IP65
Heat dissipation
240 BTU/hr
Battery (RTC)
≥4 yr at 25 °C; ±2 min/month; CR2032 coin cell (cat. 2711P-RY2032)

Certifications

cULus Listed (Class I, Div 2 A, B, C, D; Class II F, G; Class III)CE (EMC)
