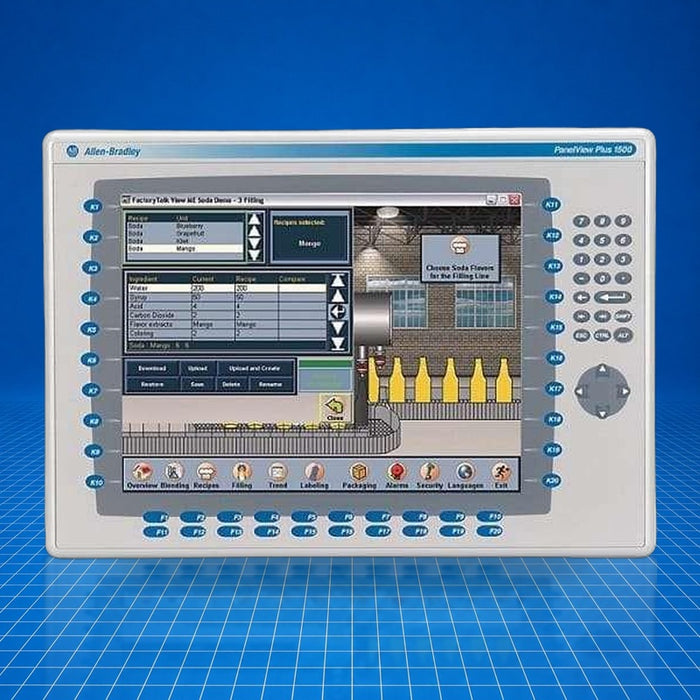

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2711P-B15C4A7 Allen-Bradley
Original price
$3,872.40
-
Original price
$16,818.55
Original price
$3,872.40
$3,872.40
-
$16,818.55
Current price
$3,872.40
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2711P-B15C4A7 is a 15-inch color PanelView Plus 6 operator interface terminal from Allen-Bradley (Rockwell Automation), part of the Bulletin 1500 family. It provides combined keypad and touch input to allow operators to monitor and control industrial processes, typically used for machinery HMI panels, assembly-line operator interfaces, or supervisory control stations. 2711P-B15C4A7 offers local graphics display, user memory, and integrated communications to link with controllers in process and discrete automation systems.
Best Suited For
- PanelView Plus 6 applications requiring both keypad and touchscreen input
- 15-inch color graphic interface needs
- Applications needing AC power operation in industrial HMI systems
- Operator control stations in Allen-Bradley Logix environments
Display size
15 in.
Display resolution
1024 × 768, 18-bit color graphics
Operator input
Keypad + Touch
Memory
512 MB RAM; 512 MB non-volatile (~79 MB user)
Power consumption (max/typ)
160 VA max; 65 VA typical
Technical Specifications
I/O & Electrical
Input voltage (type)
AC power
Power consumption
160 VA max, 65 VA typical
Heat dissipation
240 BTU/hr
Communication & Power
Operator input
Keypad and touch
Touch technology
8-wire analog resistive; actuation 1 million presses; operating force 10…110 g
Keypad
Stainless-steel membrane; keys F1…F20 and K1…K20; actuation 1 million presses; operating force 340 g
Backlight
CCFL, field-replaceable, 50 000 hr min at 25 °C
Memory (RAM/non-volatile)
512 MB RAM; 512 MB non-volatile (~79 MB free user)
Display type
Color active-matrix TFT
Display area
304 × 228 mm (12.0 × 9.0 in.)
Physical & Environmental
Enclosure rating (front)
NEMA 12, 13, 4X; IP54, IP65
Operating temperature
0 °C
Non-operating temperature
-25 °C
Shock (operating)
15 G @ 11 ms
Vibration
10-57 Hz: 0.012 mm p-p; 57-500 Hz: 2 G peak
Relative humidity
5…95 % noncondensing
Altitude, operating
2000 m
Dimensions (Keypad) H×W×D
330 × 469 × 65 mm
Dimensions (Touch) H×W×D
330 × 416 × 65 mm
Weight (Keypad)
4.5 kg (9.9 lb)
Weight (Touch)
4.2 kg (9.2 lb)
