2711P-B15C4D7 Allen-Bradley
Original price
$0.00
-
Original price
$10,192.50
Original price
$10,192.50
$0.00
-
$10,192.50
Current price
$10,192.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

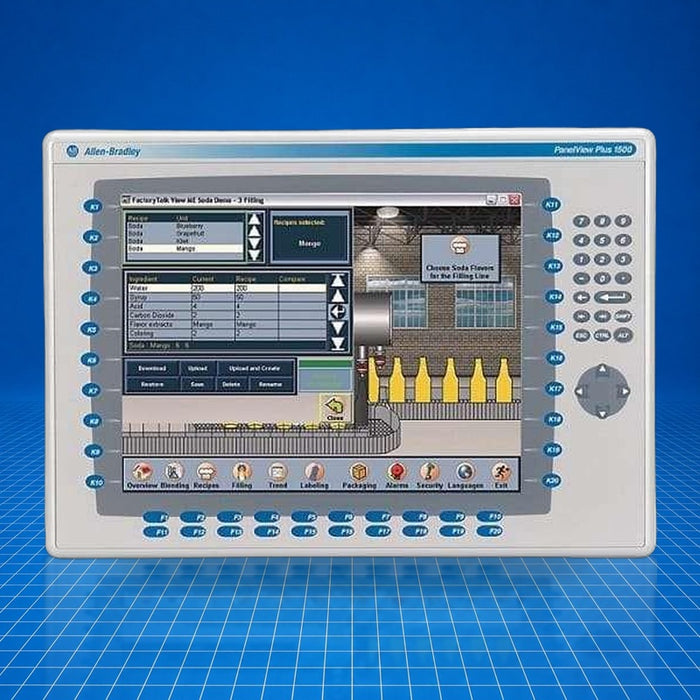

The 2711P-B15C4D7 is an Allen-Bradley PanelView Plus 6 1500 series human-machine interface terminal combining keypad and resistive-touch inputs with a 15-inch color TFT display. It provides operator control and monitoring via Ethernet, RS-232, and USB I/O and supports SD cards for file transfer. It operates on 18…32 V DC and integrates into control systems for machine operation, recipe handling, and diagnostics. Typical applications include machine-center user interfaces, discrete control panels, and process monitoring systems. Part number 2711P-B15C4D7 supports project memory and upgradeable firmware.
Best Suited For
- Machine-center operator panels
- Discrete equipment control with recipe management
- Field replacement/upgrades of PanelView Plus CE terminals
- Remote operator interface with DC-powered systems
Display size
15 in
Resolution
1024 × 768, 18-bit color
Operator input
Keypad and resistive touch
Memory
512 MB RAM, 512 MB nonvolatile (≈79 MB user)
Input voltage
18…32 V DC
Technical Specifications
I/O & Electrical
Input voltage
18…32 V DC (24 V DC nominal)
Power consumption (DC)
70 W max (2.9 A @ 24 V DC); 39 W typical (1.6 A @ 24 V DC)
Communication & Power
Communication ports
Ethernet (10/100 Mbps, Auto-MDI/MDI-X), RS-232, 2× USB host; optional module for DH+/DH-485 or ControlNet
SD card slot
Hot-swappable SD/SDHC for file transfer, firmware, data logging
Physical & Environmental
Display type
15 in color active-matrix TFT
Backlight
CCFL, 50 000 hr minimum at 25 °C, field replaceable
Touch screen
8-wire analog resistive; 1 million presses; operating force 10…110 g
Keypad
Stainless-steel membrane with numeric, navigation, function keys; 1 million presses; operating force 340 g
Dimensions (WxH×Depth)
416 × 330 × 65 mm; cut-out 305 × 391 mm
Weight
≈4.2 kg (touch); ≈4.5 kg (keypad)
Enclosure rating
Front side NEMA 4X, 12, 13; IP65
Operating temperature
0 °C to 50 °C nominal
Non-operating temp.
-25 °C
Altitude
2000 m
Shock/vibration
Operating shock 15 G @ 11 ms; vibration 10…57 Hz 0.012 mm, 57…500 Hz 2 G
Relative humidity
5…95% non-condensing
