Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

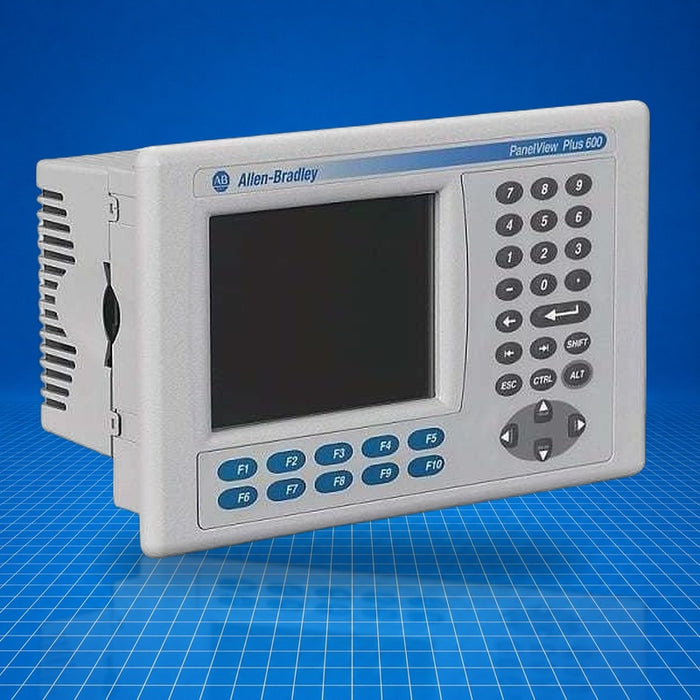

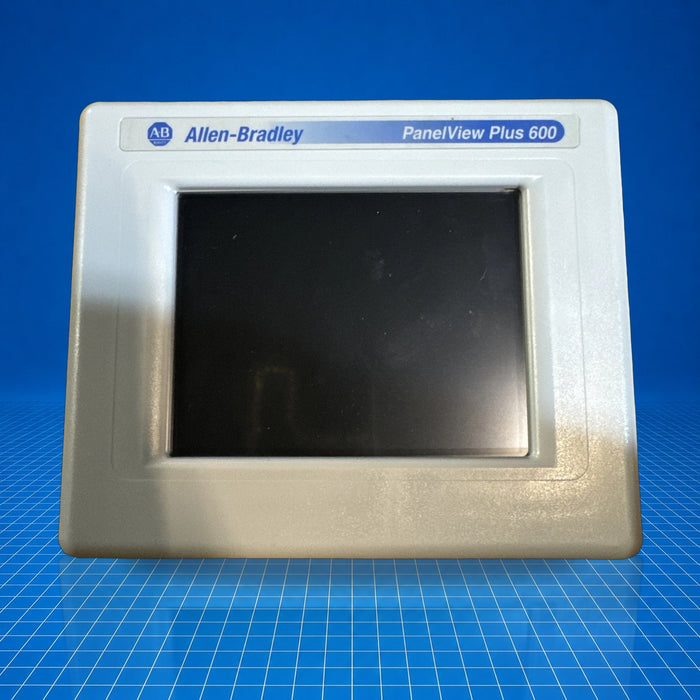

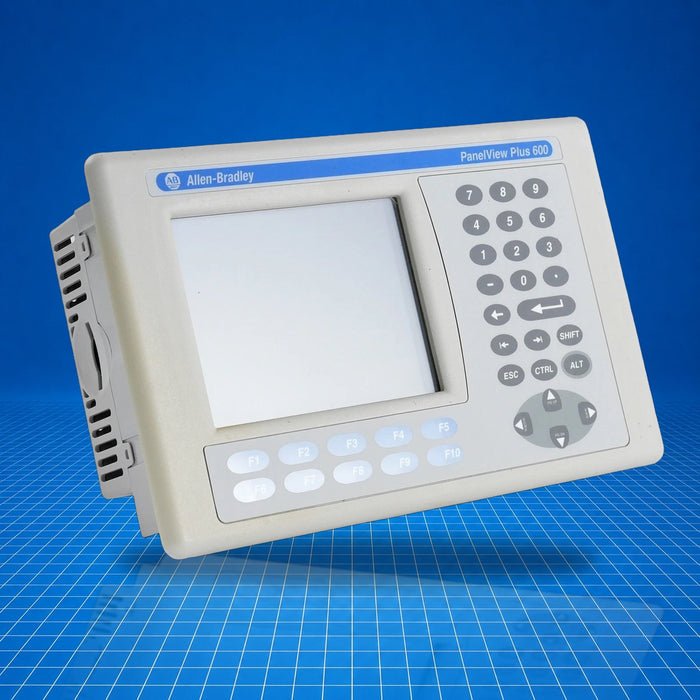

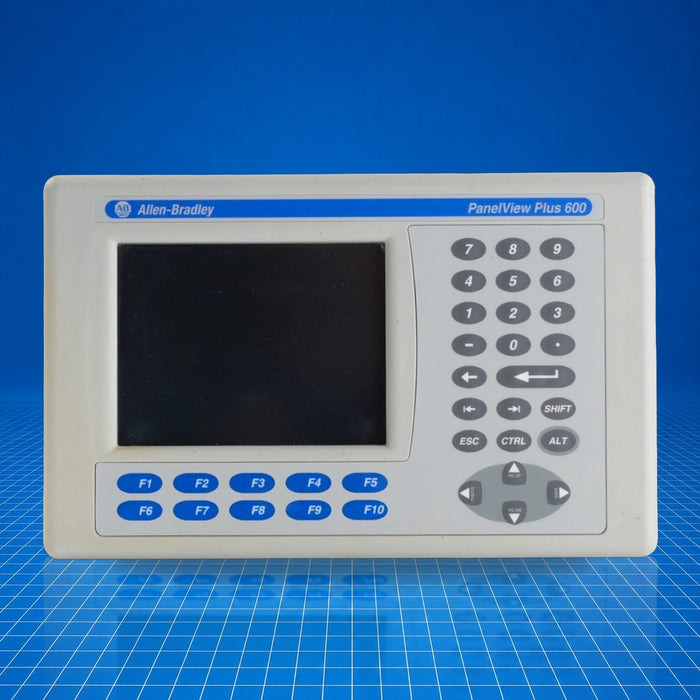

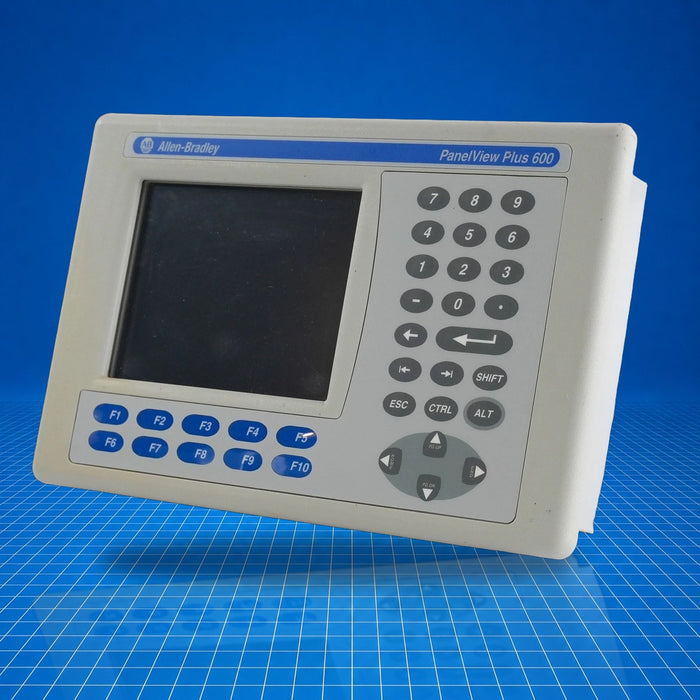

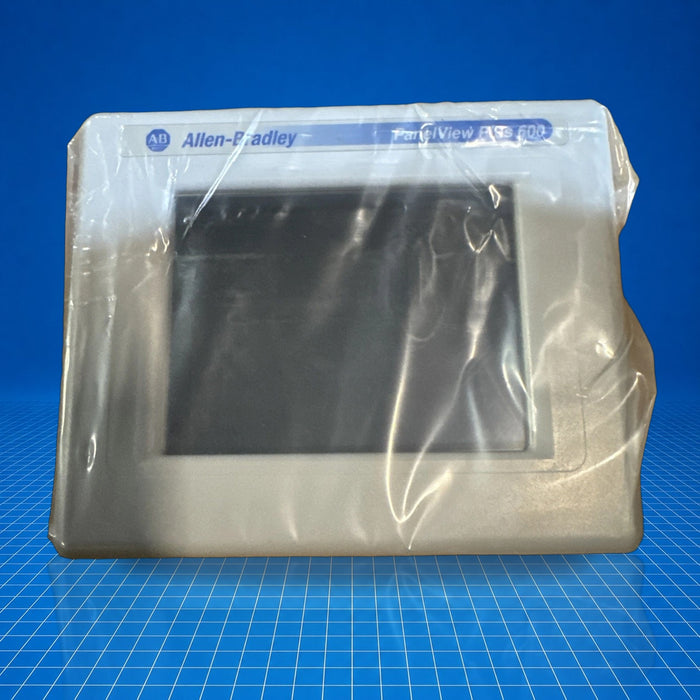

The 2711P-B6C20D8 is an Allen-Bradley PanelView Plus 6 600 graphic operator terminal designed for human-machine interface (HMI) applications. It integrates both keypad and touchscreen input methods and supports Ethernet and RS-232 communications. Typical use cases include machine operator interfaces, process monitoring and control, and integration into ControlLogix or CompactLogix systems. The 2711P-B6C20D8 provides a moderate-size display suitable for local control and status visualization in industrial environments.
Best Suited For
- Bench-mounted operator panels in control cabinets
- Applications requiring both keypad and touchscreen input
- Ethernet and RS-232 communication to modern and legacy Allen-Bradley PLCs
- Environments demanding NEMA 4X/IP66 front protection
- Temperature ranges up to 55 °C operation
Display size
5.7 in.
Resolution
320 × 240, 18-bit color
Input power
18-30 V DC
Memory (RAM/NV)
256 MB RAM, 512 MB nonvolatile
Front NEMA/IP rating
NEMA 4X, IEC IP66
Technical Specifications
I/O & Electrical
Input voltage
18-30 V DC
Power consumption (max)
15 W (0.6 A at 24 V DC)
Power consumption (typical)
9 W (0.375 A at 24 V DC)
Communication & Power

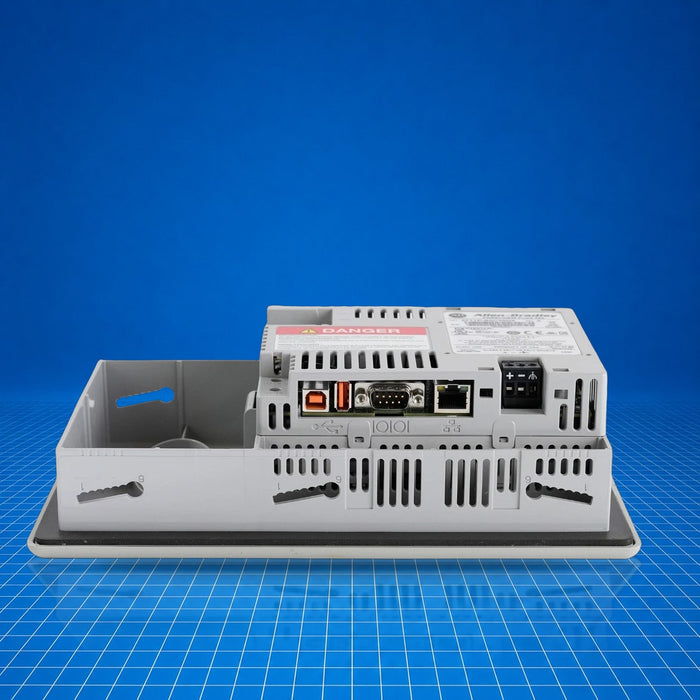

Communication ports
Ethernet, RS-232, 2× USB host/device (via Series B)
Input type
Keypad and analog-resistive touchscreen
Physical & Environmental
Operating temperature
0…55 °C
Non-operating temperature
-25…70 °C
Relative humidity
5…95 % non-condensing
Shock, operating
15 g at 11 ms
Vibration
10-57 Hz, 0.012 mm p-p; 57-500 Hz, 2 g
Altitude, operating
2000 m (6561 ft)
Front protection
NEMA 4X, IEC IP66
Built-in depth
68 mm
Front width
266 mm
Front height
167 mm
Weight
approx. 728 g (1.60 lb)
Certifications
NEMA 4XIP66
