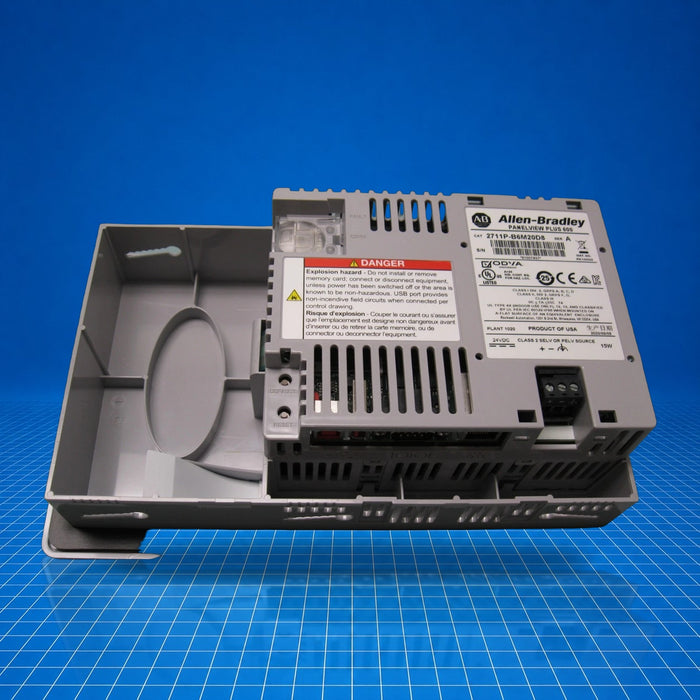

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2711P-B6M20D Allen-Bradley
Original price
$1,031.22
-
Original price
$3,600.00
Original price
$1,031.22
$1,031.22
-
$3,600.00
Current price
$1,031.22
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

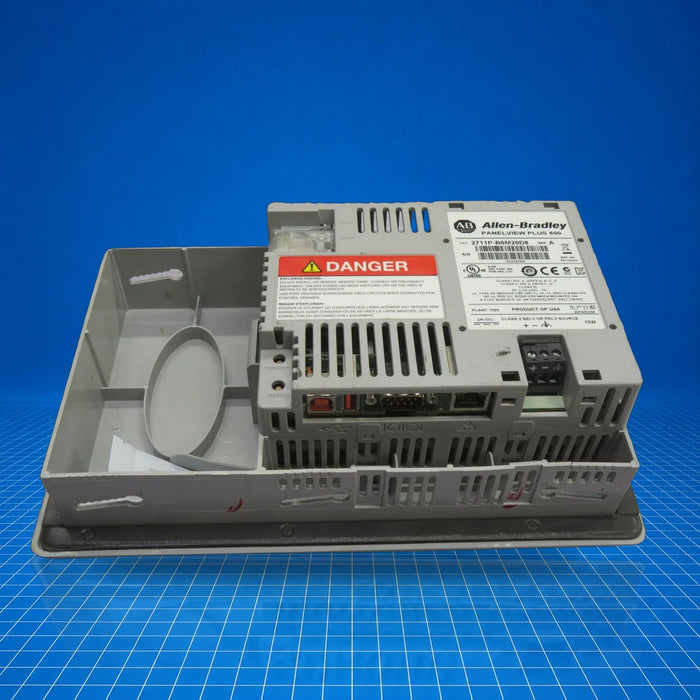

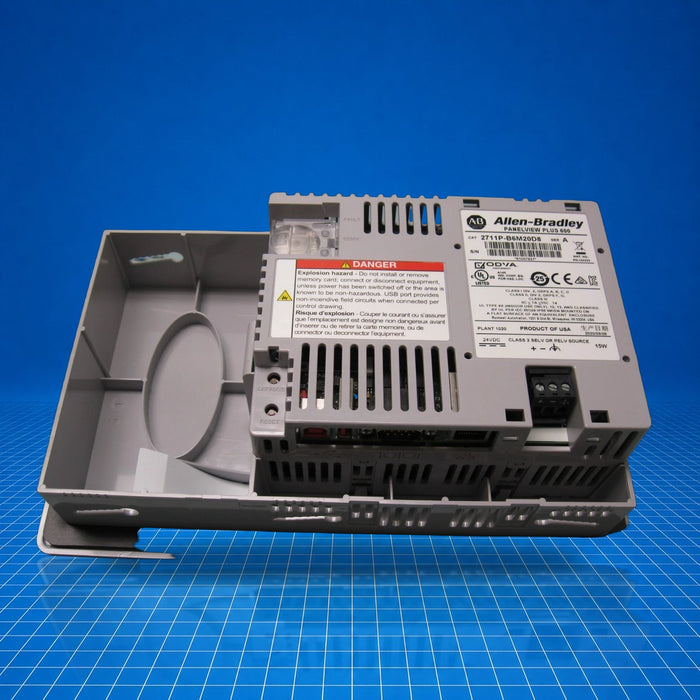

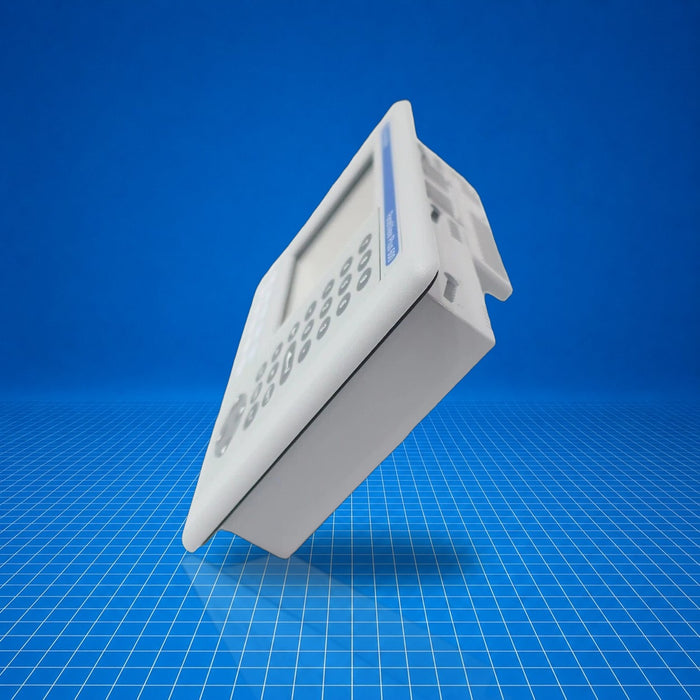

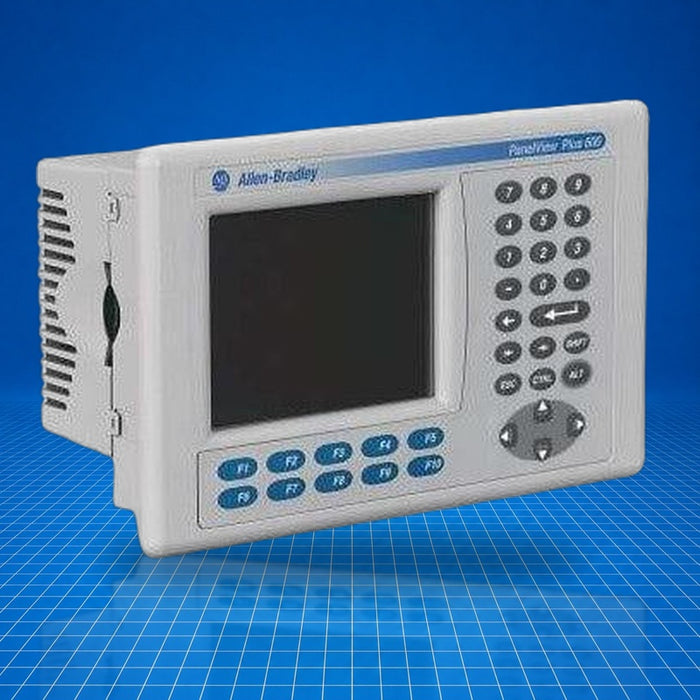

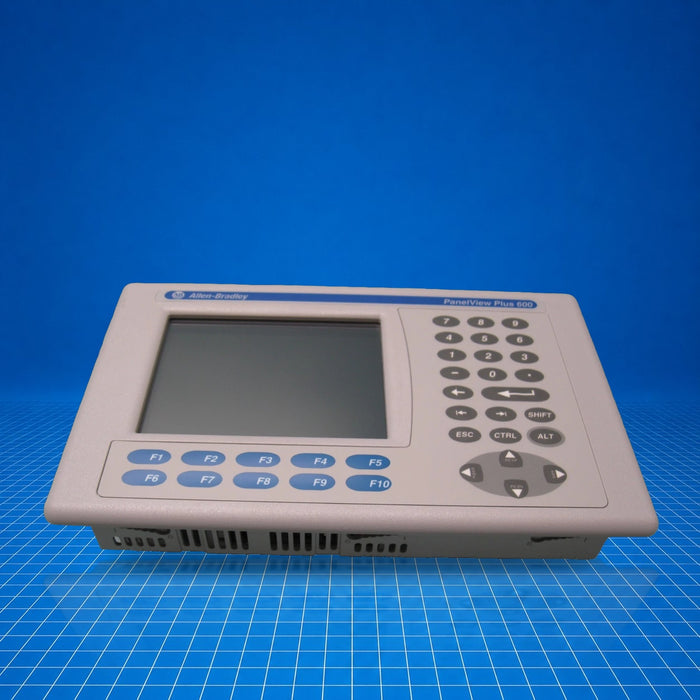

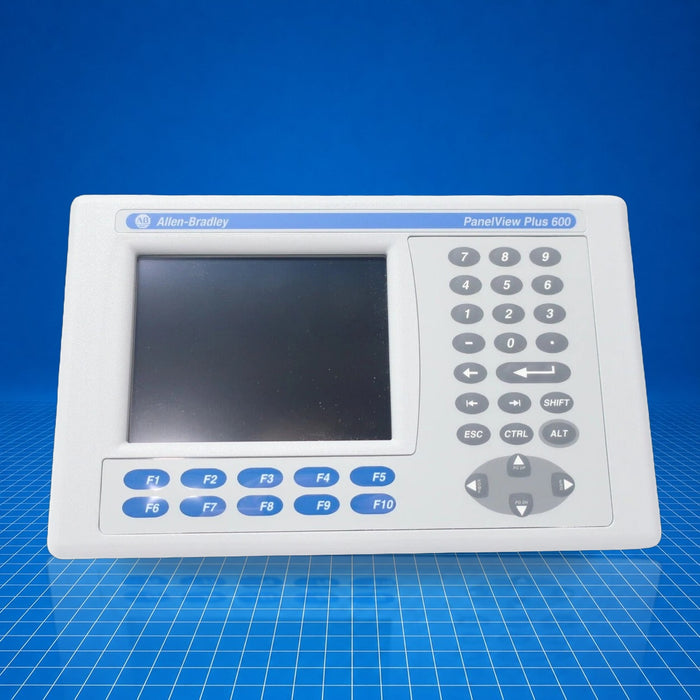

The 2711P-B6M20D is an Allen-Bradley PanelView Plus 600 operator interface terminal in the PanelView Plus 6 family. It provides a monochrome (grayscale) STN display with both keypad and touchscreen inputs for operator interaction. Intended for industrial HMI applications, it typically serves on-machine control, local monitoring, or diagnostic stations in manufacturing and process environments. 2711P-B6M20D interfaces with controllers over EtherNet/IP, RS-232, USB, enabling integration with standard industrial networks.
Best Suited For
- Local machine operator panel in discrete or process automation
- Grayscale interface applications requiring both keypad and touch
- Replacement of discontinued PanelView Plus 600 grayscale models
- Use in environments requiring NEMA 4X/IP65 front-side protection
Display size
5.5 in.
Resolution
320 × 240 pixels
Display type
32-level grayscale STN
Input method
Keypad and touchscreen

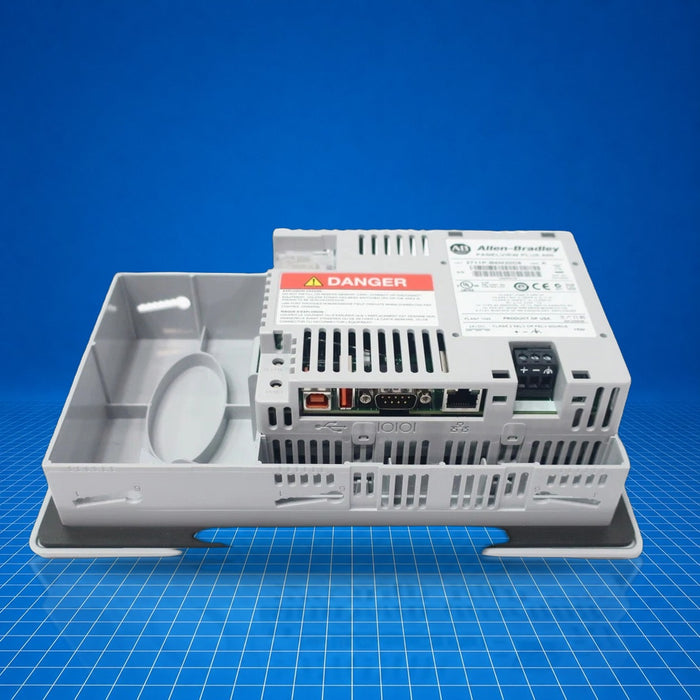

Comm ports
Ethernet (10/100), RS-232, 1 USB host, 1 USB device
Technical Specifications
I/O & Electrical
Input power
24 V DC (non-isolated)
Power consumption
typical 9 W (0.375 A @ 24 V DC), max 15 W (0.6 A @ 24 V DC)
Communication & Power
Communication ports
Ethernet 10/100 Mbps (Auto-MDI/MDI-X), RS-232, USB host, USB device
Physical & Environmental
Operating temperature
0 °C to ? °C
Non-operating temperature
? to ? °C
Front-side protection
NEMA 4X, 12, 13; IP 54, IP 65
Front-panel shock
Operating 15 G @ 11 ms; Non-operating 30 G @ 11 ms
Vibration
10-57 Hz, 0.012 in p-p; 57-500 Hz, 2 G
Relative humidity
5-95 % non-condensing
Altitude (operating)
up to 2000 m
Dimensions (touch version front)
152 × 185 mm; depth built-in 60 mm
Cut-out (touch)
123 × 156 mm (4.86 × 6.15 in)
Weight (touch)
594 g (1.31 lb)
Certifications
Discontinued
