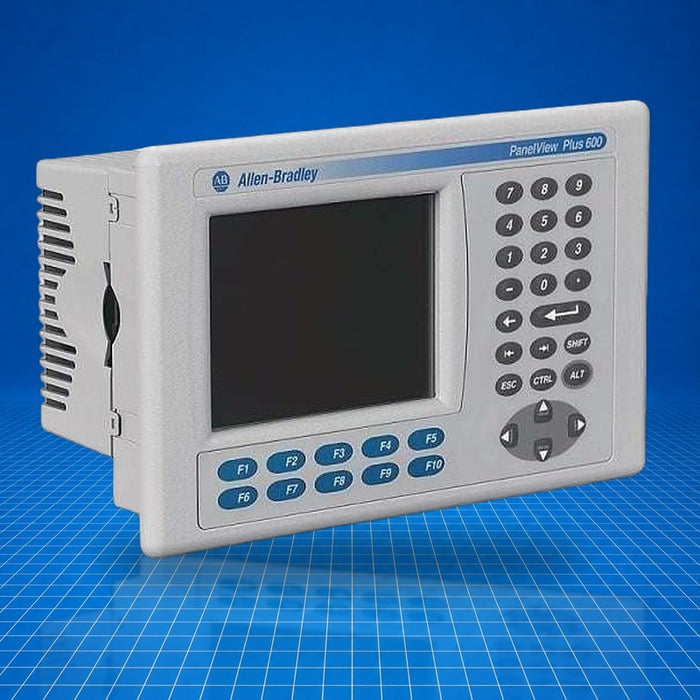

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2711P-B6M5A8 Allen-Bradley
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2711P-B6M5A8 is an Allen-Bradley PanelView Plus 6 operator interface terminal in the 600 series. It combines a 5.7-inch grayscale TFT display with both keypad and resistive touchscreen input, running Windows CE 6.0. It accepts AC power and communicates via RS-232. The device serves as a human-machine interface in industrial control systems for monitoring and controlling processes, programming recipes, logging data, transferring applications, and interfacing with controllers and peripherals. Typical uses include machine-level operator panels in manufacturing, process control, packaging, or material handling.
Best Suited For
- Machine-level operator interface in industrial control panels
- Grayscale display applications where color is not required
- AC-powered installations using RS-232 communication
- Replacement of discontinued PanelView Plus 6 terminals
Display
5.7 in. monochrome TFT, 320 × 240, 16-level gray
Operator input
Keypad and resistive touchscreen
Power
100-240 VAC
Comm port
RS-232 only; no Ethernet
Memory
256 MB RAM
Technical Specifications
I/O & Electrical
Input power
100-240 VAC
Communication port
RS-232 only
Communication & Power
Operator input methods
Keypad and resistive touchscreen
Touch technology
Analog resistive, 4-wire
Physical & Environmental
Display size and resolution
5.7 in.; 320 × 240, 16-level gray
Mounting dimensions (cutout)
142 × 241 mm (5.61 × 9.50 in)
Terminal dimensions (H × W × D)
167 × 266 × 68 mm
Panel depth
98 mm
Display area
115 × 86 mm
Weight
594 g (touch); 728 g (keypad)
Operating temperature
0…55 °C
Non-operating temperature
-25…+70 °C
Relative humidity
5…95 % noncondensing
Vibration
10-57 Hz, 0.012 mm p-p; 57-500 Hz, 2 g
Shock
Operating: 15 g @ 11 ms; Non-operating: 30 g @ 11 ms
Enclosure ratings
NEMA 12, 13, 4X (front); IEC IP66
Heat dissipation
84 BTU/hr
