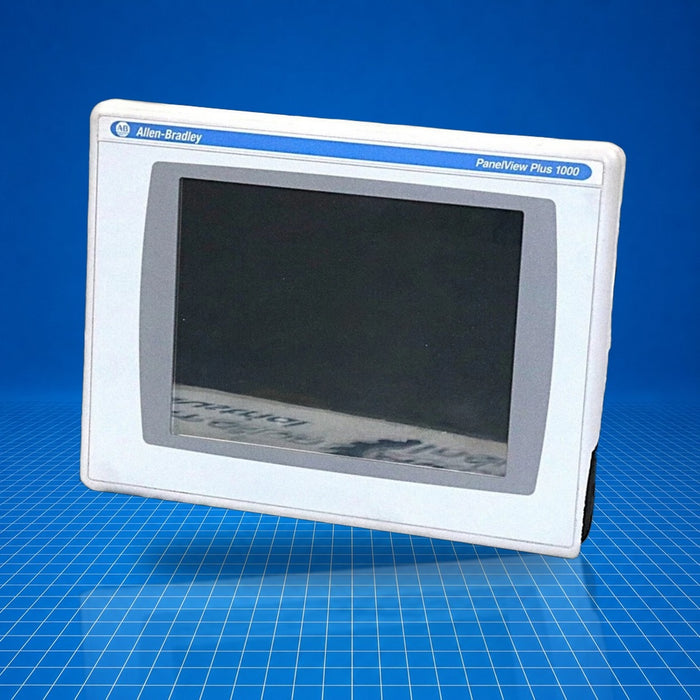

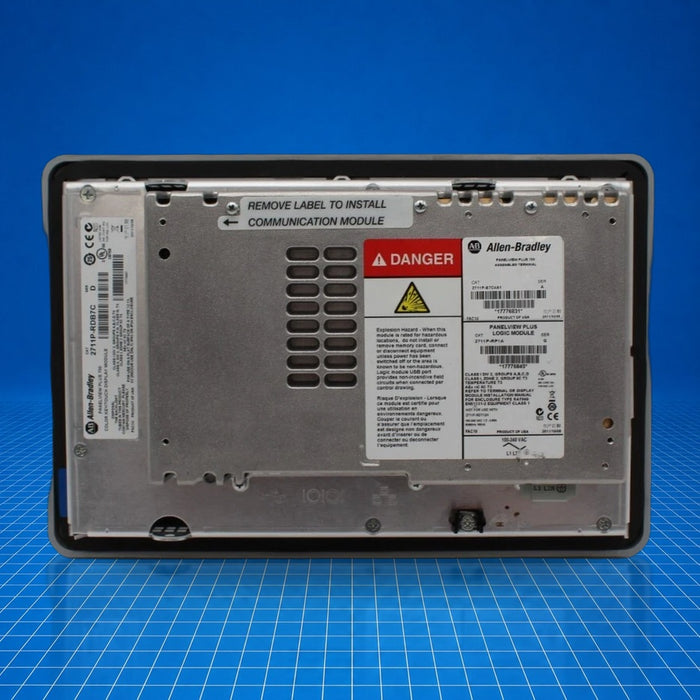

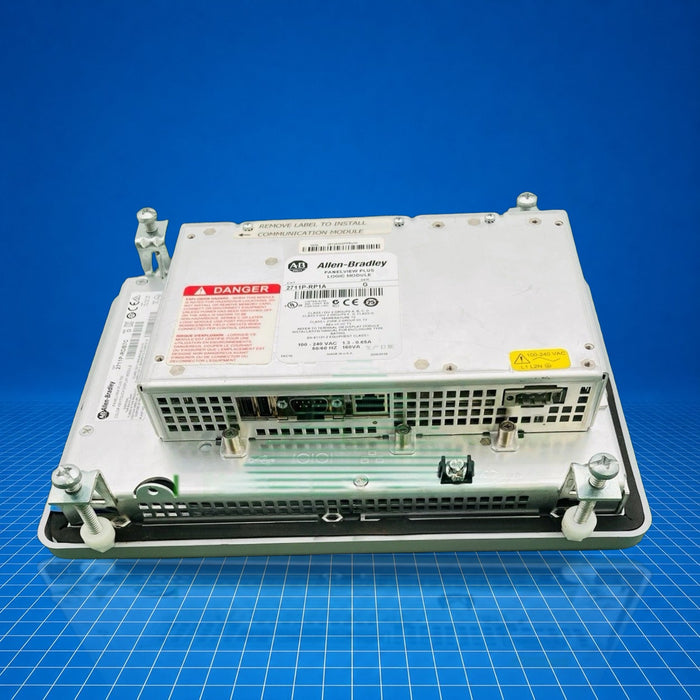

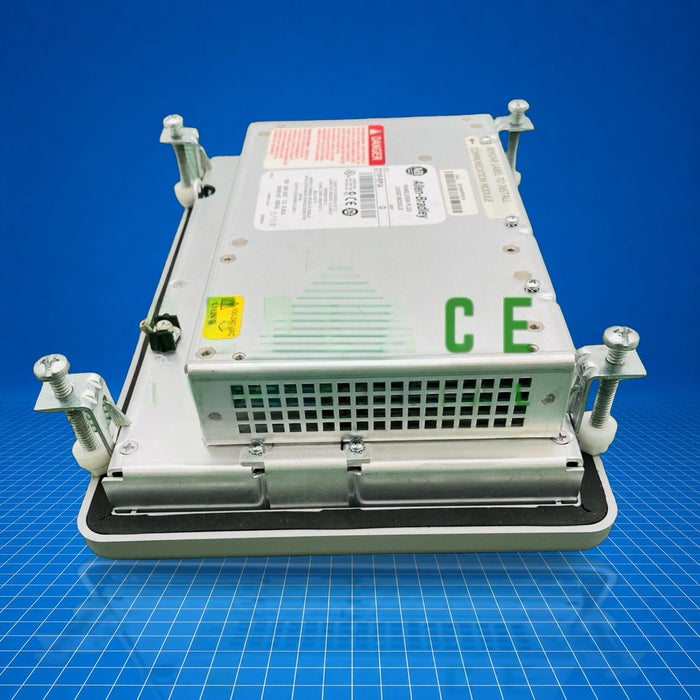

2711P-B7C4A1 Allen-Bradley
Original price
$0.00
-
Original price
$1,375.00
Original price
$1,375.00
$0.00
-
$1,375.00
Current price
$1,375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

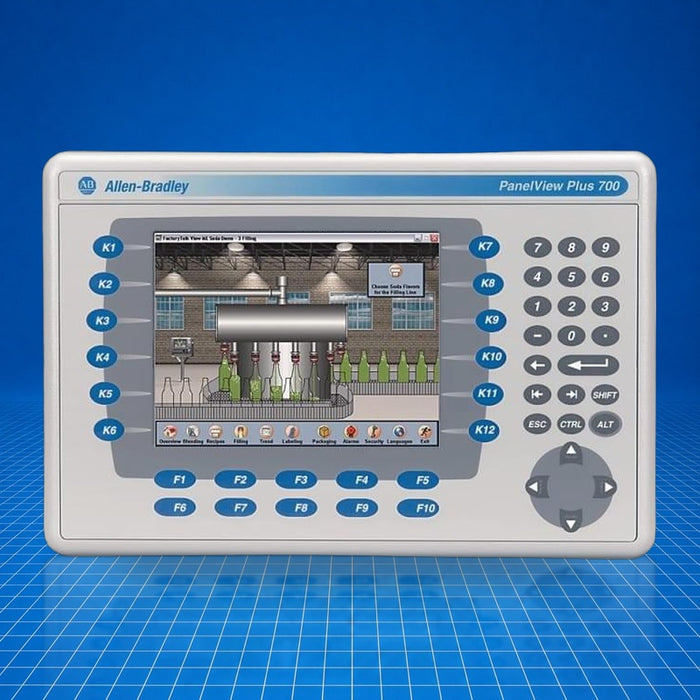

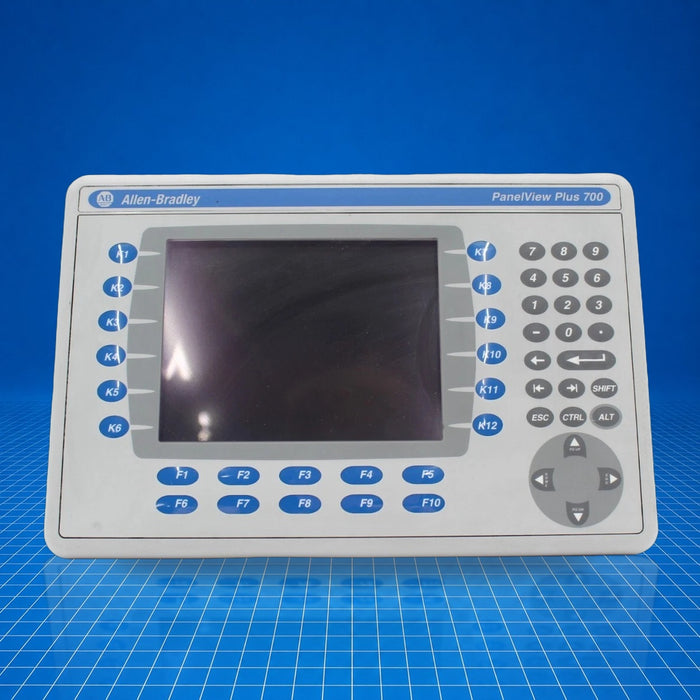

The 2711P-B7C4A1 is an Allen-Bradley PanelView Plus 700 series operator interface terminal. It provides both keypad and touchscreen operator input, enabling interaction with industrial control systems via Ethernet and RS-232 communications. The module features a 6.5-inch color active-matrix TFT display and supports Windows CE 6.0 with FactoryTalk View Machine Edition. Built for machine-level HMIs, it suits industrial packaging, process monitoring, and equipment control applications. This 2711P-B7C4A1 unit is part of a discontinued series but remains available as surplus.
Best Suited For
- Machine-level HMI in discrete manufacturing
- Operator input/output on packaging or material handling equipment
- Retrofit or replacement in existing PanelView Plus 700 installations
- Use in 24 V DC or 100-240 V AC control environments
Display size
6.5 in.
Display resolution
640 × 480, 18-bit color
Memory
64 MB†
Input power
85-264 VAC†
Technical Specifications
I/O & Electrical
Input type
Keypad/Touchscreen (keypad + resistive touch)
Communication ports
Ethernet (10/100 Mbps), RS-232
Communication & Power
Operating voltage, DC
18…32 V DC (nominal 24 V DC)
Power consumption, DC
70 W max (2.9 A at 24 V DC), 39 W typical (1.6 A at 24 V DC)
Input voltage, AC
100…240 V AC, 50-60 Hz
Power consumption, AC
160 VA max, 65 VA typical
Physical & Environmental
Display type
Color active-matrix TFT
Viewing area
132 × 99 mm (5.2 × 3.9 in.)
Operating temperature
0…55 °C
Non-operating temperature
-25…70 °C
Relative humidity
5…95 % non-condensing
Enclosure rating
NEMA 12/13/4X, IP54/IP66 (front)
