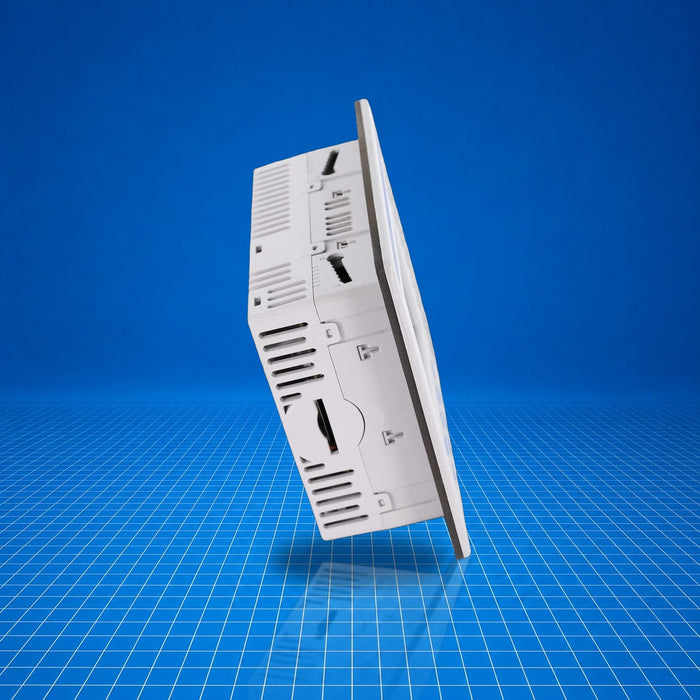

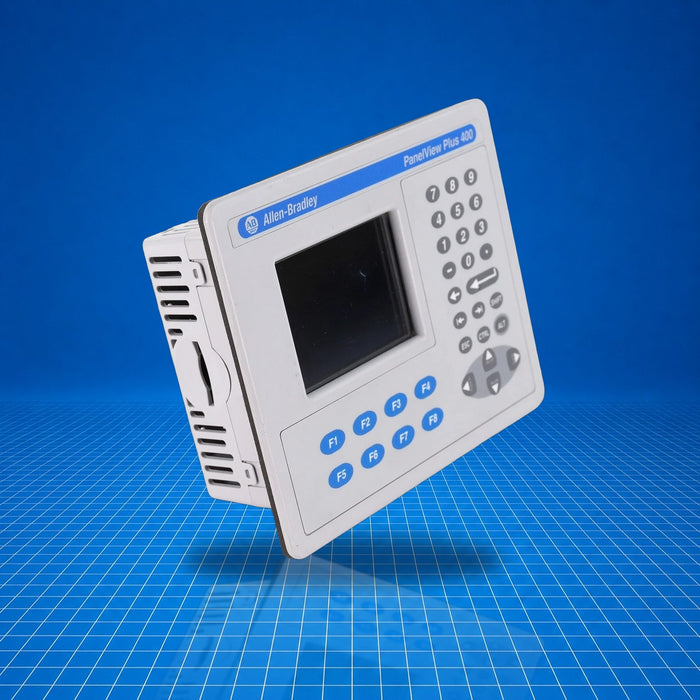

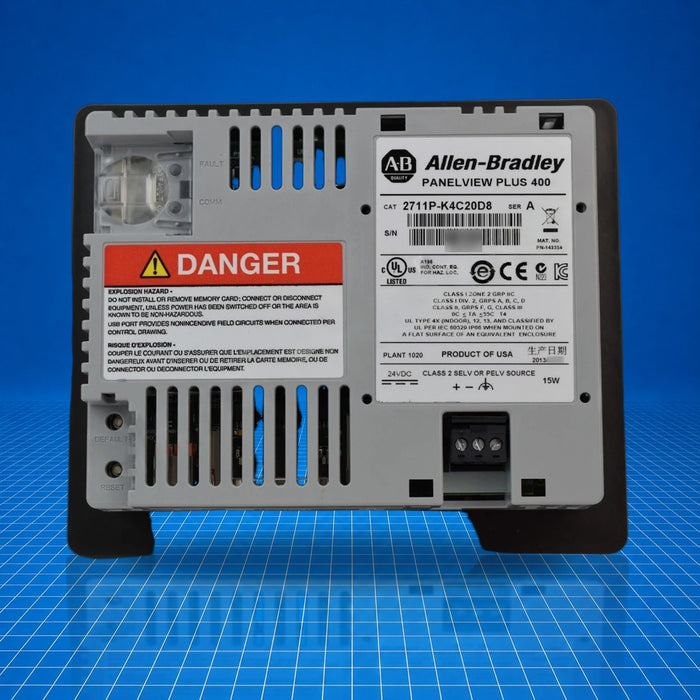

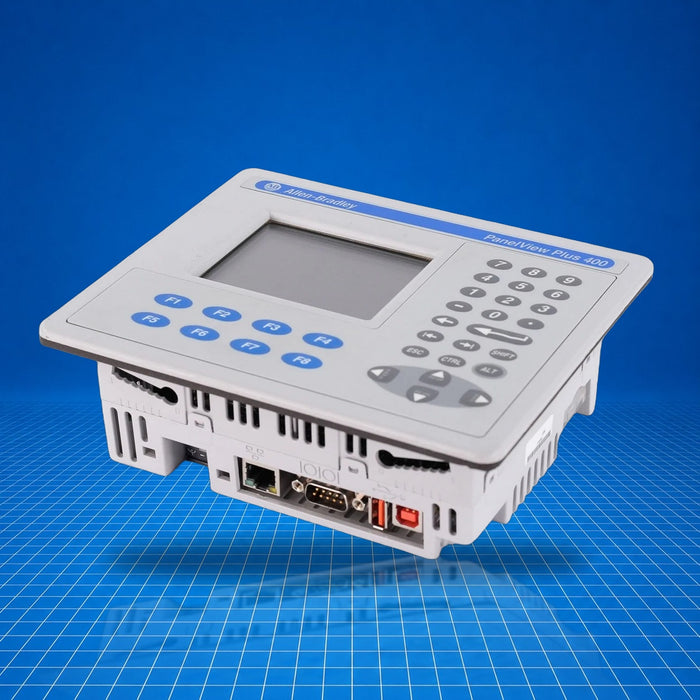

2711P-K4C20D8 Allen-Bradley
Original price
$2,878.20
-
Original price
$4,759.98
Original price
$4,759.98
$2,878.20
-
$4,759.98
Current price
$4,759.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

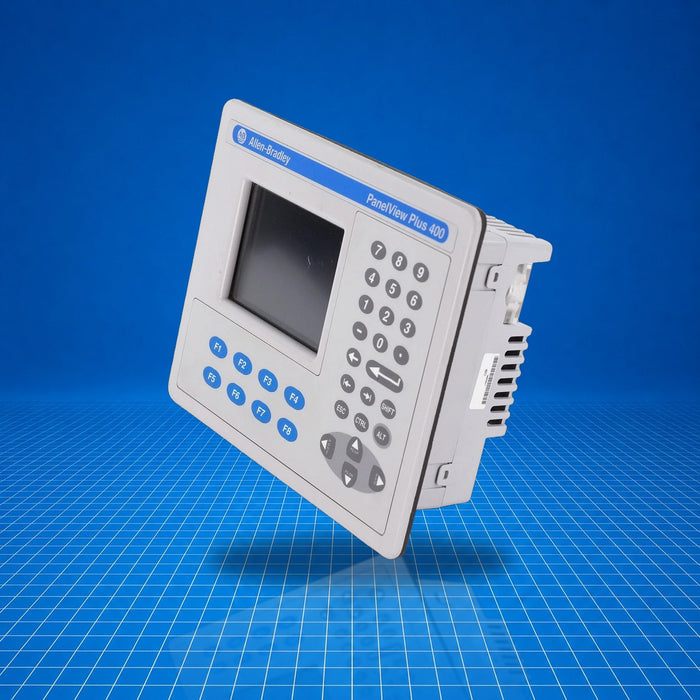

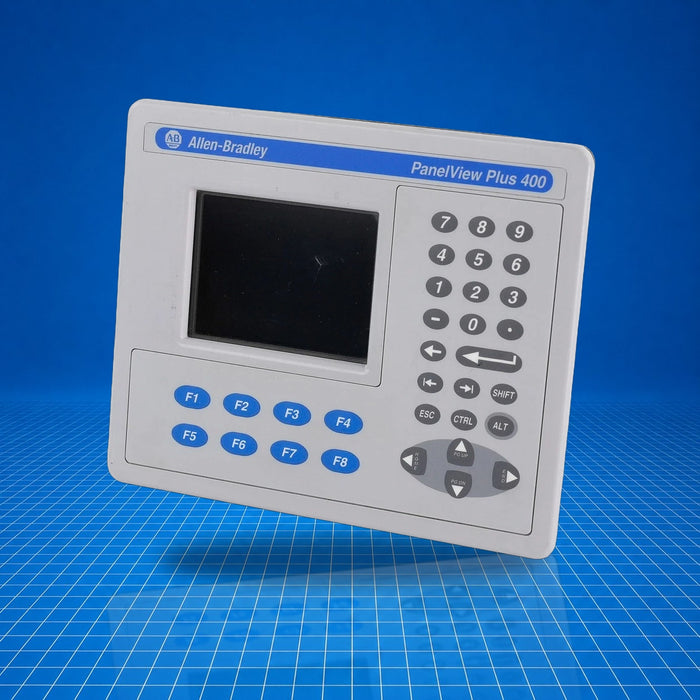

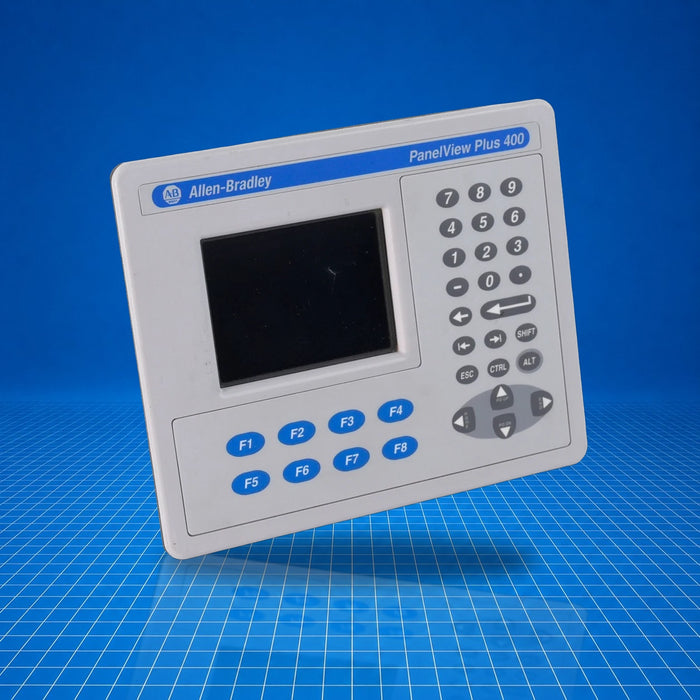

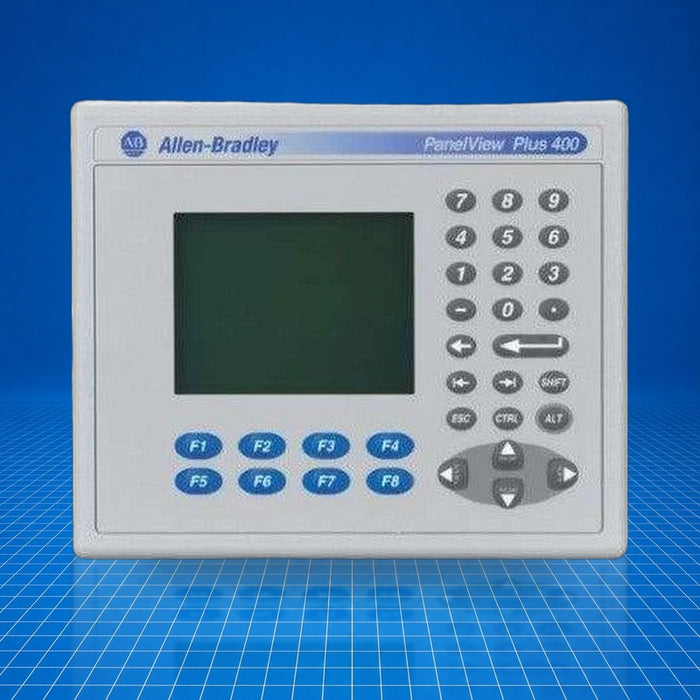

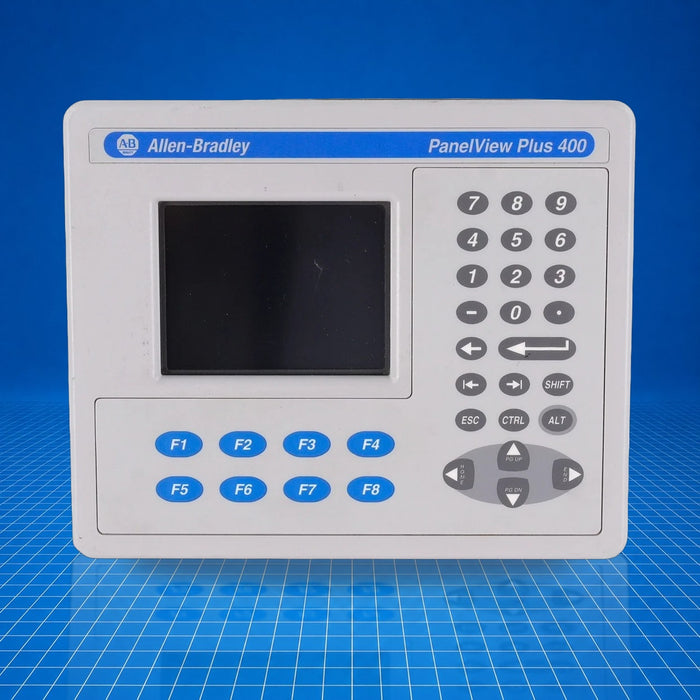

The 2711P-K4C20D8 is an Allen-Bradley PanelView Plus 6 400-series operator interface terminal. It provides a 3.5-inch color TFT display with a numeric keypad input (F1-F8) and integrates Ethernet plus RS-232 communications. Using DC power (18-30 V DC, nominal 24 V), it runs Windows CE 6.0 and is suitable for compact machine-level control or processing equipment monitoring, particularly in panels where keypad-based HMI with moderate memory and environmental protection is required.
Best Suited For
- Machine-level operator control interface
- Panel-mounted industrial environments requiring keypad input
- Integration via Ethernet or RS-232 networks
- Compact applications with DC power supply constraints
- Replacement in existing PanelView Plus 6 systems
Display (diagonal)
3.5 in
Resolution
320 × 240, 18-bit color
Input voltage
18…30 V DC (24 V DC nominal)
Power consumption
15 W max, 9 W typical
Protection rating (front)
NEMA 12, 13, 4X; IP66
Technical Specifications
I/O & Electrical
Input voltage
18…30 V DC (24 V DC nominal)
Power consumption
15 W max (0.6 A @ 24 V DC), 9 W typical (0.375 A @ 24 V DC)
Recommended external power supply
Cat. no. 1606-XLE120E, SELV or PELV isolated (100…240 V AC, 250 VA max)
Communication & Power
Communication ports

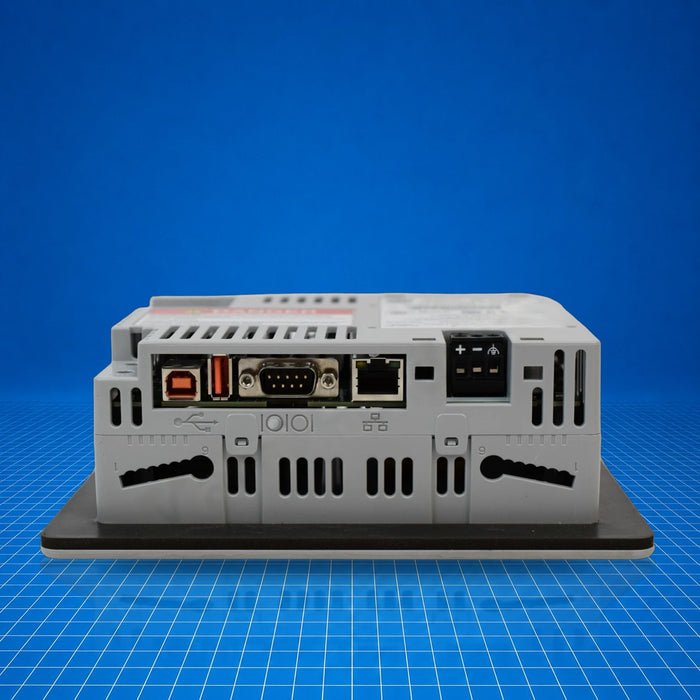

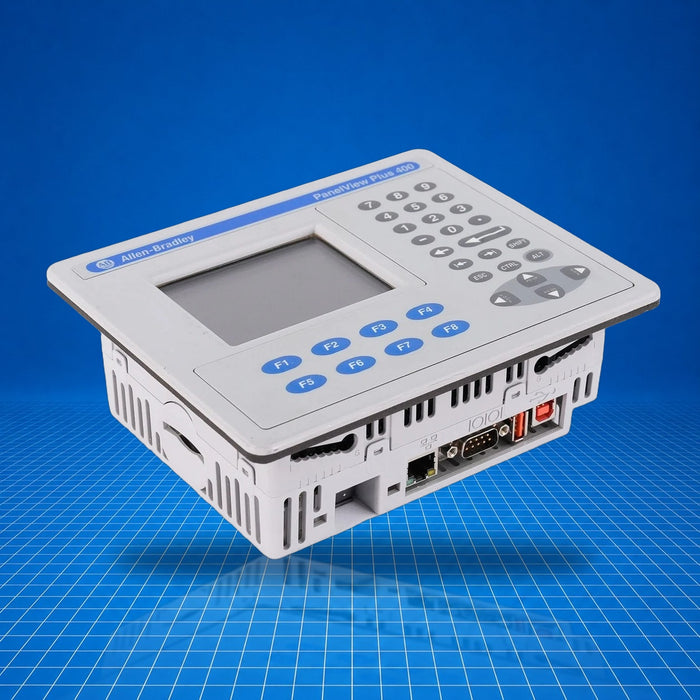

Ethernet (10/100 Mbps, Auto-MDI/MDI-X), RS-232, USB host, USB device
Operator input
Keypad (numeric, F1-F8), optional analog resistive touch
Physical & Environmental
Display type
Color active-matrix TFT
Dimensions (H × W × D)
152 × 185 × 60 mm (mounted depth 90 mm)
Weight
473 g (1.04 lb)
Operating temperature
0…55 °C
Non-operating temperature
-25 … +70 °C
Relative humidity
5…95 % non-condensing
Shock (operating / non-operating)
15 g @ 11 ms / 30 g @ 11 ms
Vibration
10…57 Hz, 0.012 mm p-p; 57…500 Hz, 2 g
Altitude, operating
2000 m
Enclosure rating
NEMA 12, 13, 4X (indoor); IP66 (front)
