Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

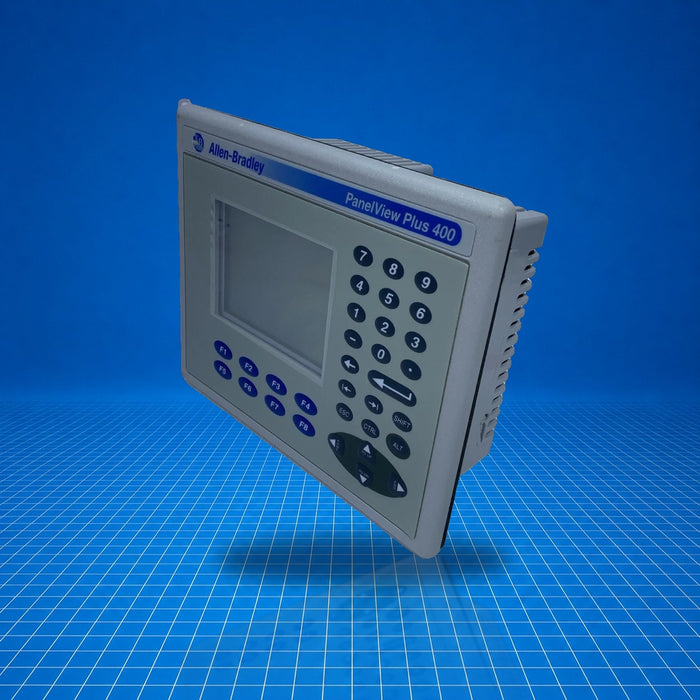

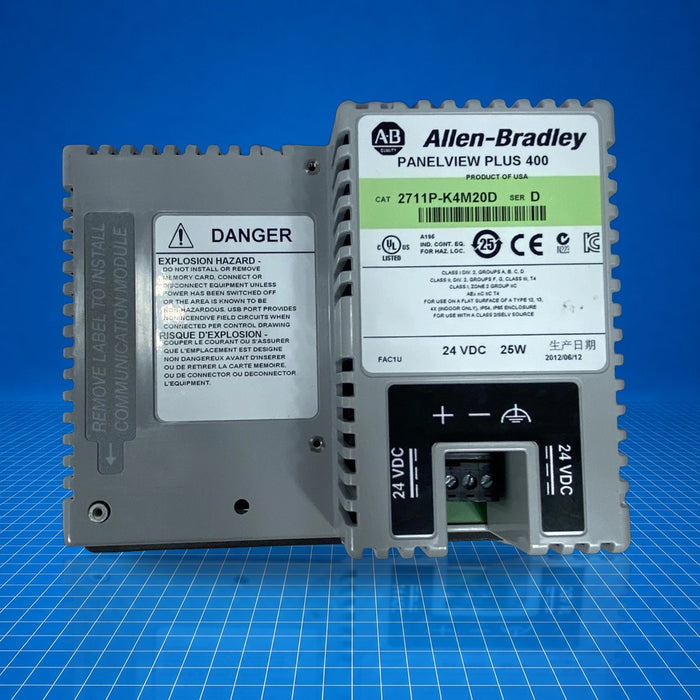

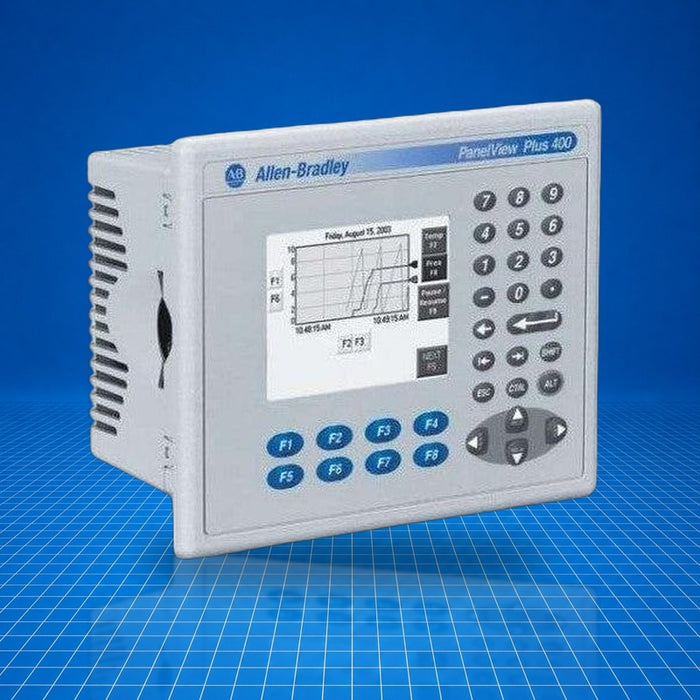

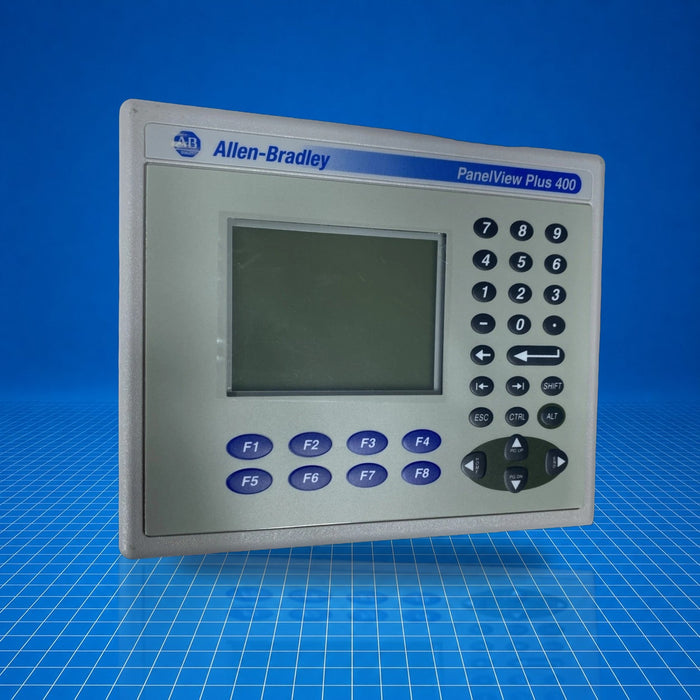

The 2711P-K4M20D is an Allen-Bradley PanelView Plus 400 family operator interface terminal that provides a 3.5-inch grayscale TFT display with keypad input. It operates under Windows CE 6.0 or compatible Machine Edition runtime and communicates via Ethernet and RS-232. Typically deployed in industrial control systems for machine-level monitoring and control, it suits applications such as mid-tier HMI panels, batch processing stations, or retrofit projects requiring a compact grayscale operator terminal. Part number 2711P-K4M20D is fully integrated in PanelView installations.
Best Suited For
- Operator control on legacy PanelView Plus 400 systems
- Environments needing keypad-only grayscale interface
- Applications using Ethernet or RS-232 for HMI communication
- Retrofit or refurbishment of discontinued HMI units
Display size
3.5 in
Resolution
320 × 240, 16-levels gray
Keypad keys
8 function keys (F1…F8)
Power consumption (max/typical)
15 W max (0.6 A @ 24 V DC) / 9 W typical (0.375 A @ 24 V DC)
Memory
512 MB RAM, 512 MB nonvolatile (≈ 73 MB free user)
Technical Specifications
I/O & Electrical
Input voltage
18…30 V DC (24 V DC nominal)
Power consumption
15 W max / 9 W typical
Communication & Power
Ethernet port
10/100 Mbps, Auto-MDI/MDI-X
RS-232 port
1
USB ports
1 host + 1 device
SD card slot
Hot-swappable (supports 1784-SDx/SDHCx)
Battery (RTC)
CR2032, field-replaceable, ~4 yr at 25 °C, ±2 min/month
Physical & Environmental
Display type
Grayscale TFT LCD, white LED backlight (25,000 hr min)
Enclosure rating
NEMA 12, 13, 4X (IP54, IP65 front)
Operating temp
0 °C to ? °C (non-operating -25 °C)
Shock
Operating 15 G @ 11 ms; non-operating 30 G @ 11 ms
Vibration
10-57 Hz 0.012 mm p-p; 57-500 Hz 2 G
Weight
≈ 473 g
Dimensions (HxWxD)
152 × 185 × 60 mm; cut-out 123×156 mm
Certifications
NEMA Type 12NEMA Type 13NEMA Type 4XIP54IP65
