2711P-K6C8A Allen-Bradley
Original price
$0.00
-
Original price
$3,599.91
Original price
$3,599.91
$0.00
-
$3,599.91
Current price
$3,599.91
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

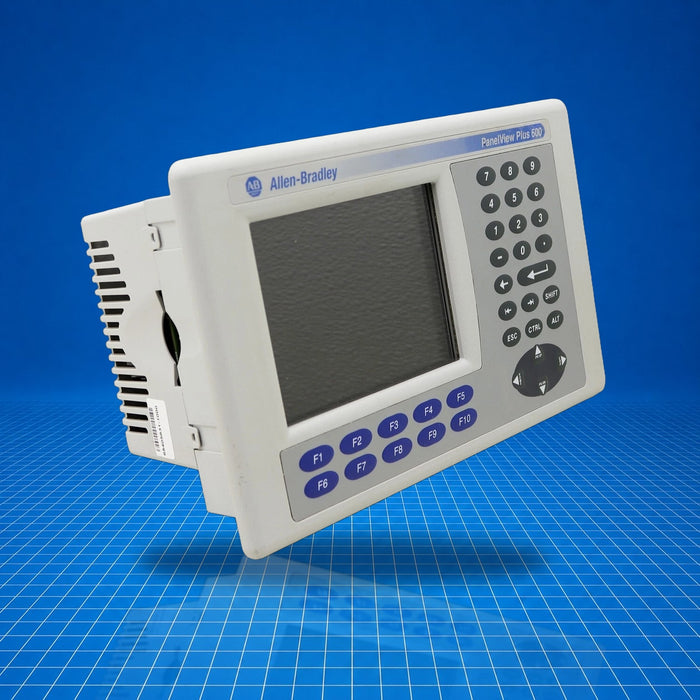

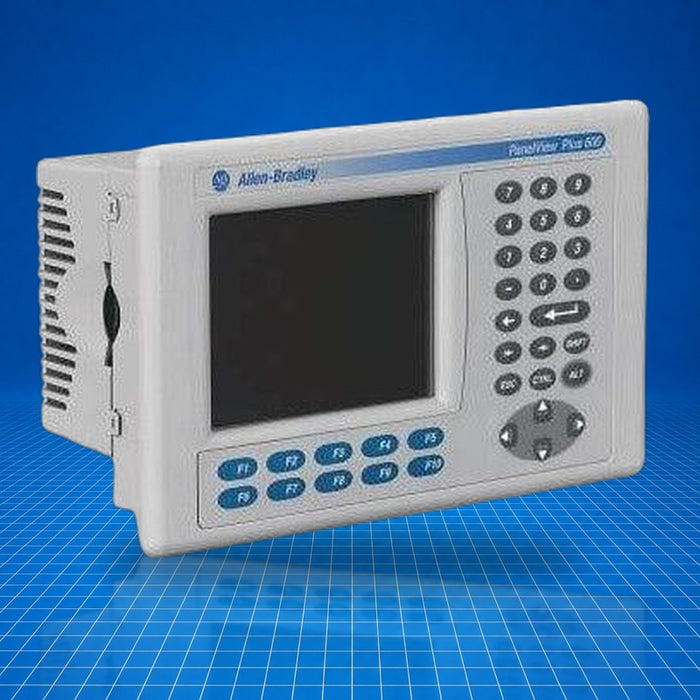

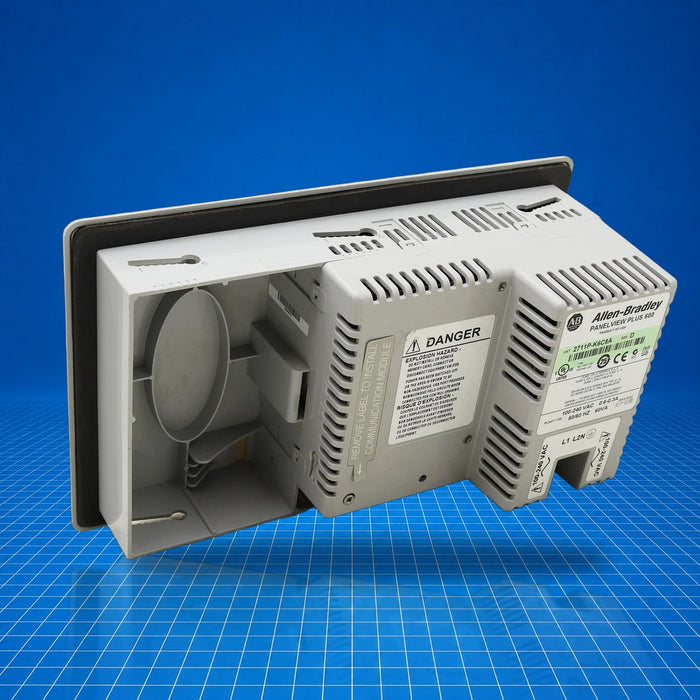

The 2711P-K6C8A is a PanelView Plus 6 standard operator terminal with a keypad interface and color TFT display. It operates as an HMI in a control system, providing operator interaction via text/graphics, status monitoring, and recipe handling. It supports typical industrial environments including manufacturing lines, packaging machines, and process control stations. 2711P-K6C8A mounts in standard panel cutouts and communicates over Ethernet and RS-232.
Best Suited For
- Machine-level operator interface in mid-tier control systems
- Discrete manufacturing or packaging equipment panels
- Applications requiring keypad-only input (no touch)
- EtherNet/IP or RS-232 networked HMI systems
Display size
5.7 in.
Display resolution
320 × 240 pixels
RAM / non-volatile memory
256 MB RAM / 512 MB non-volatile (≈ 73 MB user)
Input voltage
18…30 V DC (24 V DC nominal)
Power consumption
15 W max / 9 W typical
Technical Specifications
I/O & Electrical
Input voltage
18…30 V DC (24 V DC nominal)
Power consumption
15 W max (0.6 A @ 24 V DC), 9 W typical (0.375 A @ 24 V DC)
Communication & Power
Communication ports
1 Ethernet, RS-232, 1 USB host, 1 USB device
Operator input
Keypad (10 function keys)
Physical & Environmental
Display type
Color active-matrix TFT, 5.7 in., 320 × 240 pixels
Memory
256 MB RAM; 512 MB non-volatile (approx. 73 MB user)
Backlight
White LED, not replaceable, min 25 000 h @ 25 °C
Enclosure rating
NEMA Type 12, 13, 4X (front); IEC IP66 (front)
Operating temperature
0 °C…? (only lower bound listed as 0 °C)
Dimensions (cutout)
142 × 241 mm; front width 266 mm × height 167 mm; depth 68 mm
Weight, approx.
728 g
Certifications
Discontinued status applies; certifications may vary-consult product label. (Rockwell does not list UL/CE here for this model.)
