Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

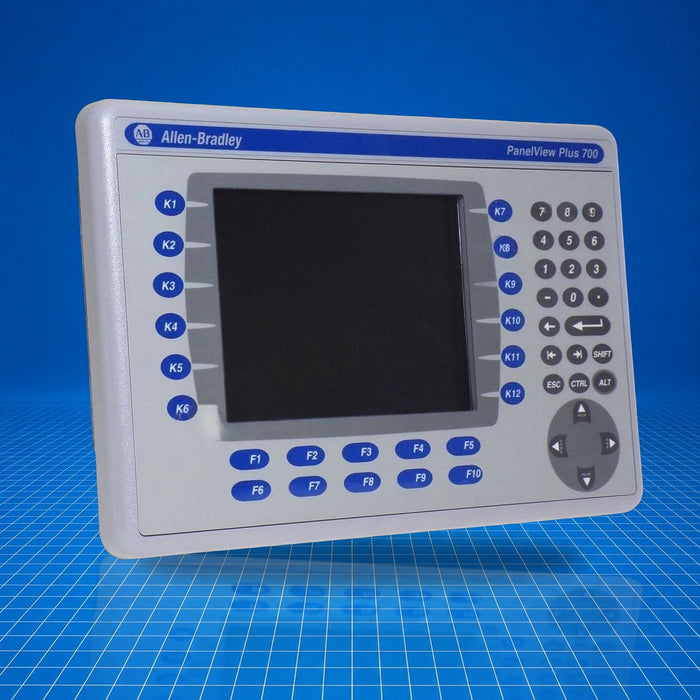

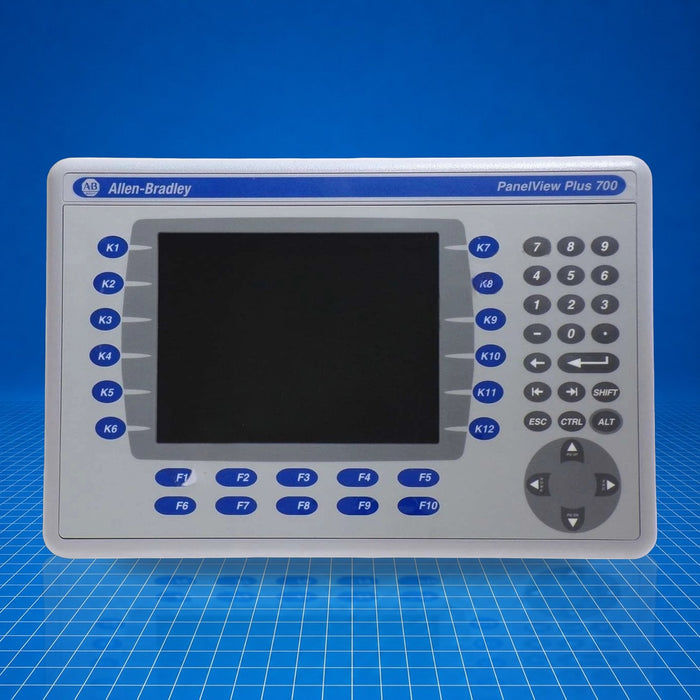

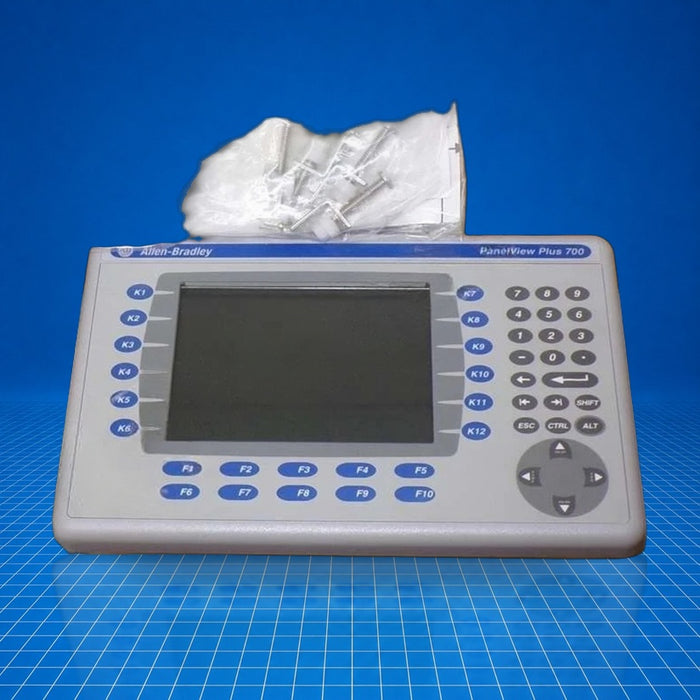

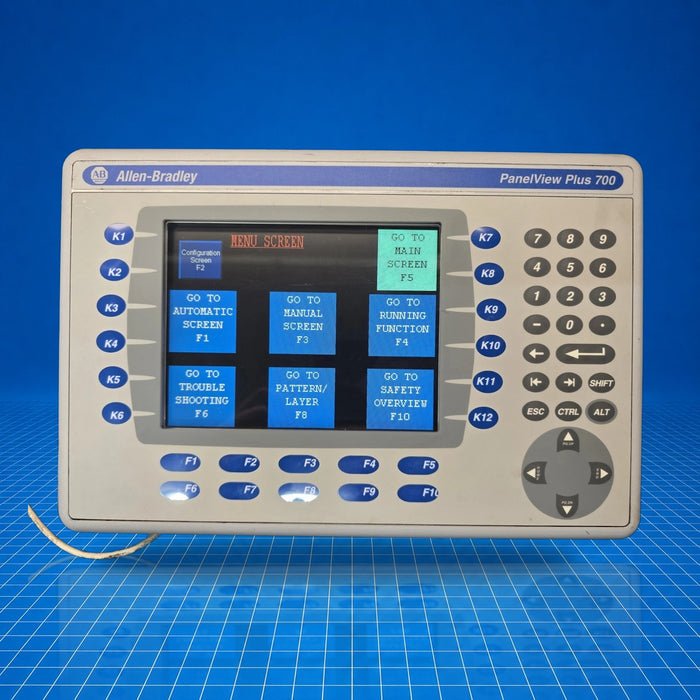

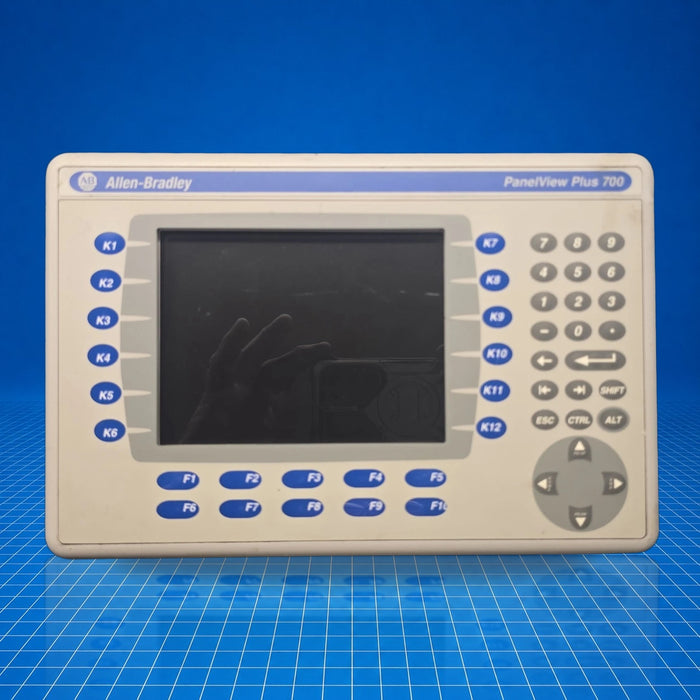

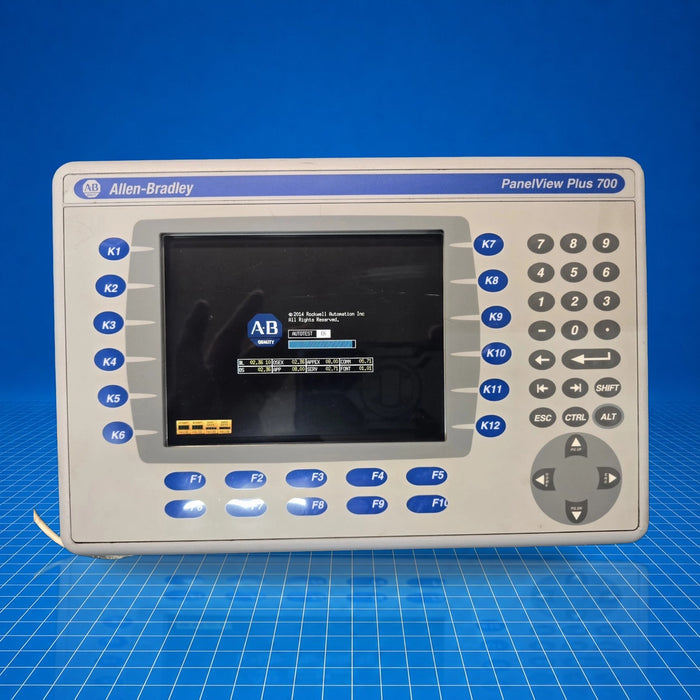

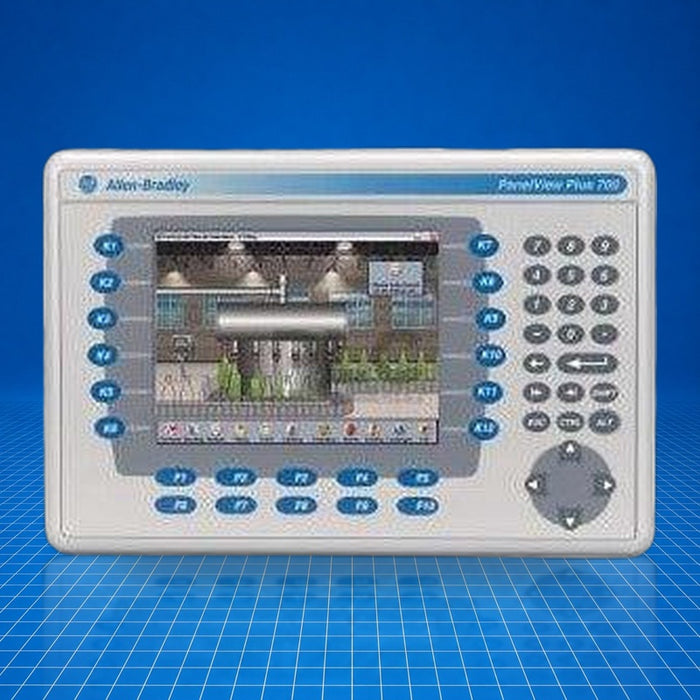

The 2711P-K7C4D8 is an Allen-Bradley PanelView Plus 6 human-machine interface (HMI) terminal with keypad input, featuring a 6.5-inch color display and integrated Ethernet, RS-232 and USB connectivity. It runs Windows CE 6.0 and serves as a local operator interface for machine control and monitoring. As part of the PanelView Plus 6 700-series, the 2711P-K7C4D8 is commonly used in industrial panels for process visualization, recipe management, status displays, and local control in manufacturing, packaging, or batch systems.
Best Suited For
- Operator interface on machine control panels
- Recipe creation and batch control stations
- EtherNet/IP-connected control systems
- Areas with keypad-only input requirements
- Retrofitting older PanelView Plus systems
Display
6.5 in, 640 × 480, color TFT
Memory
512 MB RAM, 512 MB non-volatile (≈ 79 MB user)
Power
18-32 V DC; typ 39 W, max 70 W
Keys
22 programmable function keys
Connectivity
Ethernet, RS-232, 2 × USB host
Technical Specifications
I/O & Electrical
Input voltage
18…32 V DC
Power consumption
Typical 39 W (1.6 A @ 24 V DC), Max 70 W (2.9 A @ 24 V DC)
Communication & Power
Communication ports
Ethernet (10/100 Mbps Auto-MDI/MDI-X), RS-232, 2 × USB host
Protocols supported
EtherNet/IP, TCP/IP; also supports printer output, messages, recipes
Physical & Environmental
Display type
Color active-matrix TFT; luminance 300 cd/m²; CCFL backlight, 50 000 h
Memory
512 MB RAM; 512 MB non-volatile (≈ 79 MB free user)
Keys
Stainless-steel membrane keypad; 22 function keys
Dimensions (cut-out)
Approx 264 × 167 mm
Weight
1.79 kg (≈ 3.94 lb)
