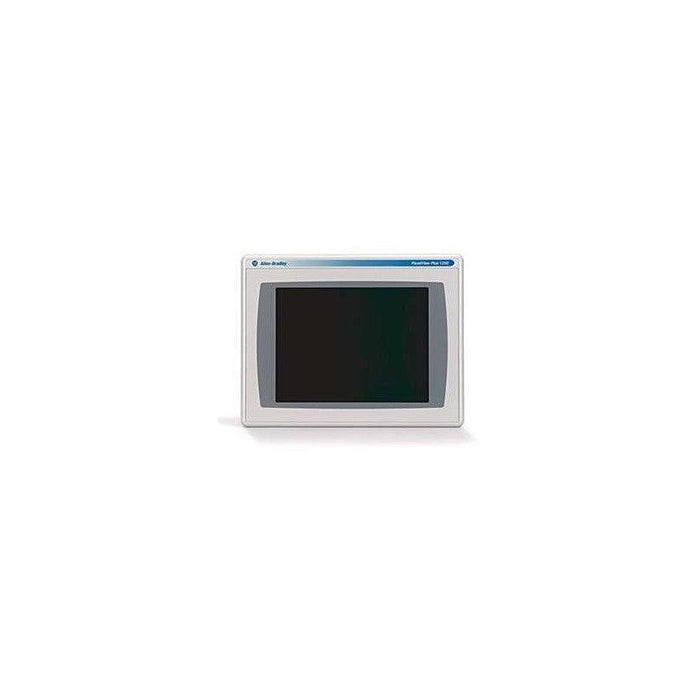

2711P-RDT12C Allen-Bradley
Original price
$1,097.25
-
Original price
$2,801.25
Original price
$1,097.25
$1,097.25
-
$2,801.25
Current price
$1,097.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

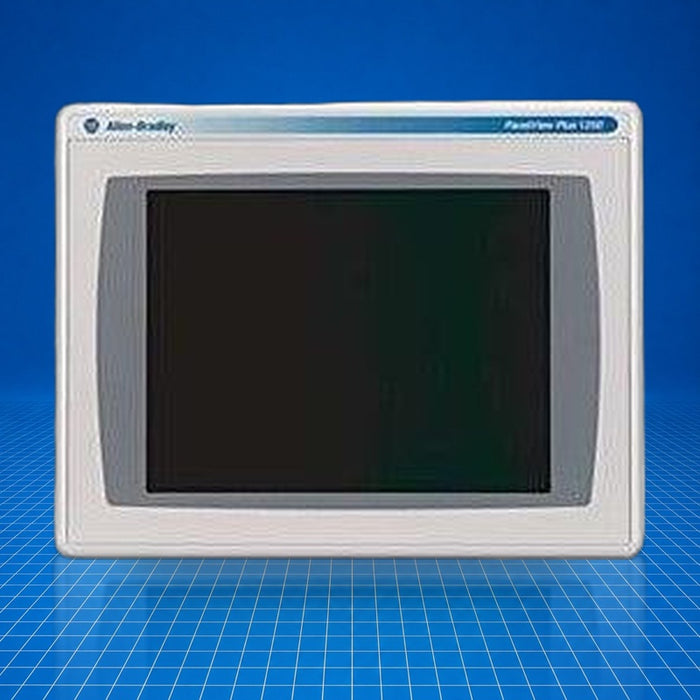

The 2711P-RDT12C is an Allen-Bradley PanelView Plus 1250 display module that provides a 12.1-inch color TFT touchscreen interface for operator interaction in PanelView Plus and PanelView Plus 6 systems. It functions as the human-machine interface component in control systems, enabling visualization of process data and user input via resistive touch. This display module is typically used in medium-sized control applications, machinery panels, and production line operator stations where clear feedback and touch input are required. Part number 2711P-RDT12C.
Best Suited For
- PanelView Plus 1250 and PanelView Plus 6 systems requiring display upgrade
- Machine operator panels in manufacturing environments
- Control system applications needing 12.1-inch color touchscreen input
- Applications where replacement of a display module is required
Display size
12.1 in
Resolution
800 × 600
Input interface
8-wire analog resistive
Power consumption (max / typical)
70 W max (2.9 A @ 24 V DC), 39 W typical (1.6 A @ 24 V DC)
Degree of protection
IP65 (front), NEMA 12, 13, 4X
Technical Specifications
I/O & Electrical
Display type
Color active-matrix TFT LCD
Display resolution
800 × 600
Luminance
300 cd/m²
Backlight
CCFL, 50000 hr life, min
External storage
CompactFlash, 512 MB max
Keypad function
Function, numeric and navigation (module supports)
Communication & Power
Input voltage
85…264 V AC
Power consumption
70 W max (2.9 A @ 24 V DC), 39 W typical (1.6 A @ 24 V DC)
Line frequency
47 Hz
LED indicators
COMM (Green), fault (Red)
Battery life (RTC)
4 yr min @ 25 °C
Clock accuracy
±2 min per month
Physical & Environmental
Dimensions (W × H × D)
363 × 282 × 55 mm
Cutout dimensions
257 × 338 mm
Weight
3.2 kg
Operating temperature
0 °C
Non-operating temperature
-25 °C
Relative humidity
5…95% noncondensing
Shock (operating)
15 g @ 11 ms
Vibration
10…57 Hz, 0.012 mm pk-pk; 57…500 Hz, 2 g
Altitude (operating)
2000 m
Heat dissipation
240 BTU/hr
