2711P-RDT12H Allen-Bradley

Name: 2711P-RDT12H Allen-Bradley
Brand: Allen Bradley
SKU: 2711P-RDT12H
Price: 3850.0 USD
Availability: InStock

$3,850.00 - $7,349.93

$3,850.00

$3,850.00 - $7,349.93

$3,850.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

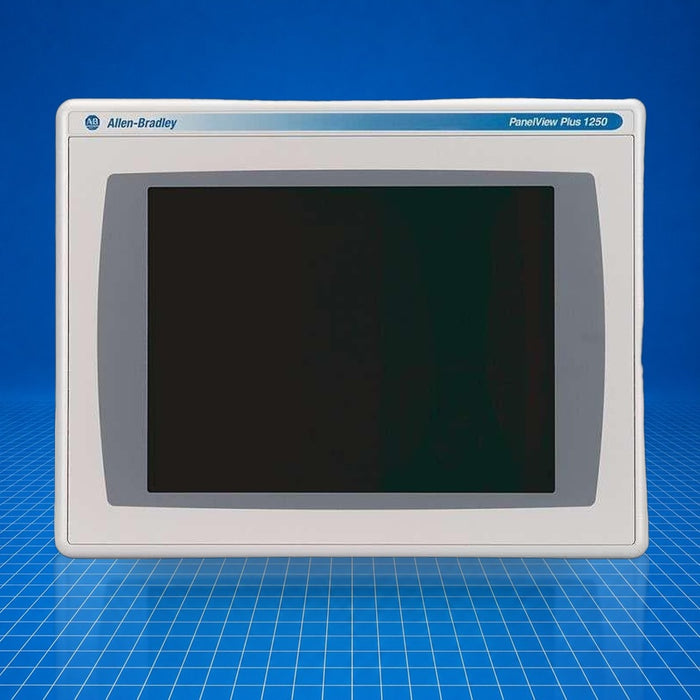

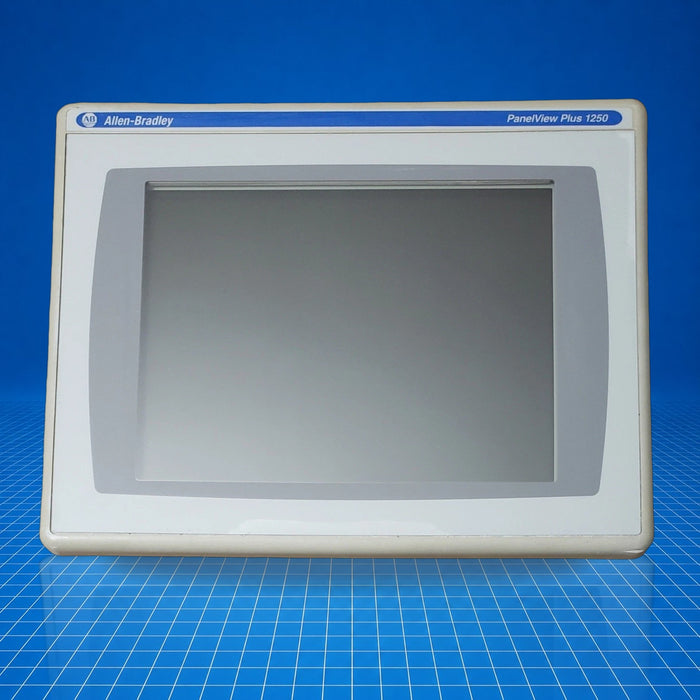

The 2711P-RDT12H is a PanelView Plus 1250 series high-brightness display module by Allen-Bradley, serving as the operator interface in industrial control systems. It provides a 12.1-inch TFT color touch display, ideal for environments requiring enhanced screen visibility. Installed in control panels, it allows operators to monitor and interact with process visualization and alarms in manufacturing, utilities, and machine control applications. Part number 2711P-RDT12H.

Best Suited For

Outdoor or high-ambient light operator stations
PanelView Plus 1250 series integration
Human-machine interface in machine control systems
Visualization in utility or process environments

Display size

12.1 in

Resolution

800 × 600 pixels

Luminance

1000 cd/m²

Input voltage

85…264 V AC

Power consumption (max)

70 W

Technical Specifications

I/O & Electrical

Input voltage

85…264 V AC

Power consumption (typical)

39 W (1.6 A @ 24 V DC)

Power consumption (maximum)

70 W (2.9 A @ 24 V DC)

PCI slot available power

11 W DC, 5 W AC

Physical & Environmental

Operating temperature

0…55 °C

Non-operating temperature

-25…70 °C

Relative humidity

5…95 % non-condensing

Shock (operating)

15 g @ 11 ms

Vibration

10…57 Hz, 0.012 mm pk-pk; 57…500 Hz, 2 g pk

Enclosure rating

NEMA 12, 13, 4X (indoor), IP54, IP65

Heat dissipation

240 BTU/hr

Weight

3.2 kg

Dimensions (W×H×D)

363 × 282 × 74 mm

Cutout dimensions

257 × 338 mm

Display area

246 × 184 mm

Certifications

c-UL-usCEC-Tick

c-UL-us: UL Listed Industrial Control Equipment for Class I Div 2 A/B/C/D, Class II Div 2 F/G, Class III; CE (EMC, LVD); C-Tick (Australian compliance).
