2711P-T12C4D1 Allen-Bradley

Name: 2711P-T12C4D1 Allen-Bradley
Brand: Allen Bradley
SKU: 2711P-T12C4D1
Price: 1625.0 USD
Availability: InStock

$1,625.00 - $4,588.30

$1,625.00

$1,625.00 - $4,588.30

$1,625.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

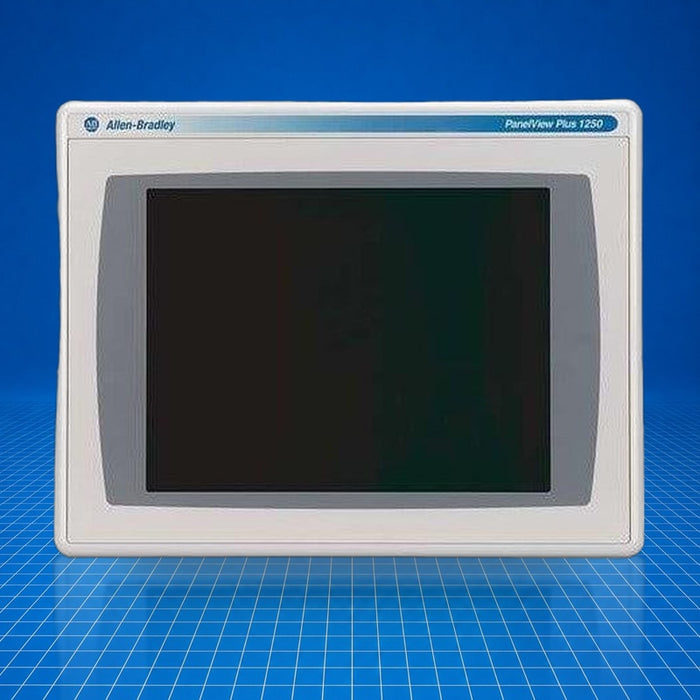

The 2711P-T12C4D1 is an Allen-Bradley PanelView Plus 1250 human-machine interface terminal. It belongs to the PanelView Plus 6 series and provides a 12.1-inch color active-matrix TFT touch display, integrated for operator control and monitoring of automation systems. It supports Ethernet, RS-232 and USB host ports, and includes internal memory for project storage and execution. This device is typically applied in machine-level operator control, line-side monitoring, and integration with Rockwell Automation control architectures. Part number 2711P-T12C4D1 supports standard industrial use with 24 V DC supply obligation.

Best Suited For

Machine-level operator interface
PanelView Plus 6 retrofits and replacements
Local Ethernet / RS-232 monitoring
Systems using USB peripherals (e.g. printers, memory)

Display size

12.1 in.

Display resolution

800 × 600, 18-bit color graphics

Memory (RAM/NV)

512 MB RAM, 512 MB nonvolatile (~79 MB free)

Power consumption (max/typical)

70 W max (2.9 A @ 24 V DC), 39 W typical (1.6 A @ 24 V DC)

Communication ports

Ethernet, RS-232, 2 × USB host

Technical Specifications

I/O & Electrical

Input voltage

18…32 V DC (24 V DC nominal)

Power consumption, DC

70 W max (2.9 A @ 24 V DC), 39 W typical (1.6 A @ 24 V DC)

Communication & Power

Communication ports

Ethernet (10/100 Mbps, Auto-MDI/MDI-X), RS-232, 2 × USB host

Physical & Environmental

Display size

12.1 in.

Resolution

800 × 600, 18-bit color

Display area

246 × 184 mm (9.7 × 7.2 in.)

Backlight

CCFL, 50 000 hr min @ 25 °C, field replaceable

Operating temperature

0 °C

Non-operating temperature

-25 °C

Weight, approx

1.7 kg (touch version)

Mounting cut-out

257 × 338 mm (10.11 × 13.29 in.)

Ingress protection (front)

NEMA 12, 13, 4X; IP54, IP65

Certifications

UKCA
