2711P-T12C4D6 Allen-Bradley
Original price
$0.00
-
Original price
$1,237.47
Original price
$1,237.47
$0.00
-
$1,237.47
Current price
$1,237.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

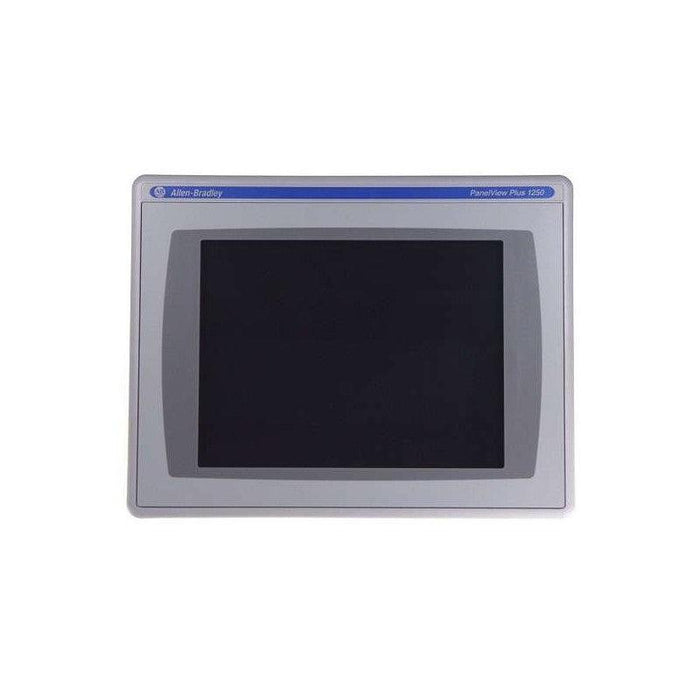

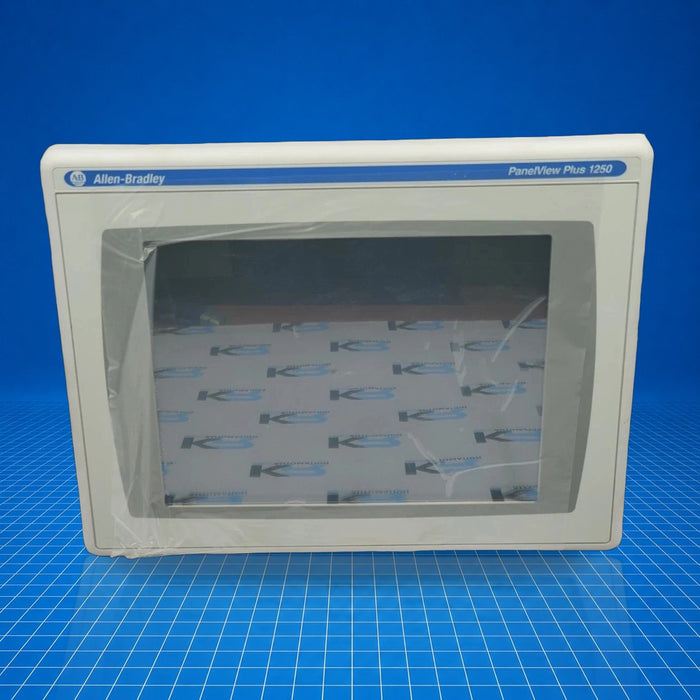

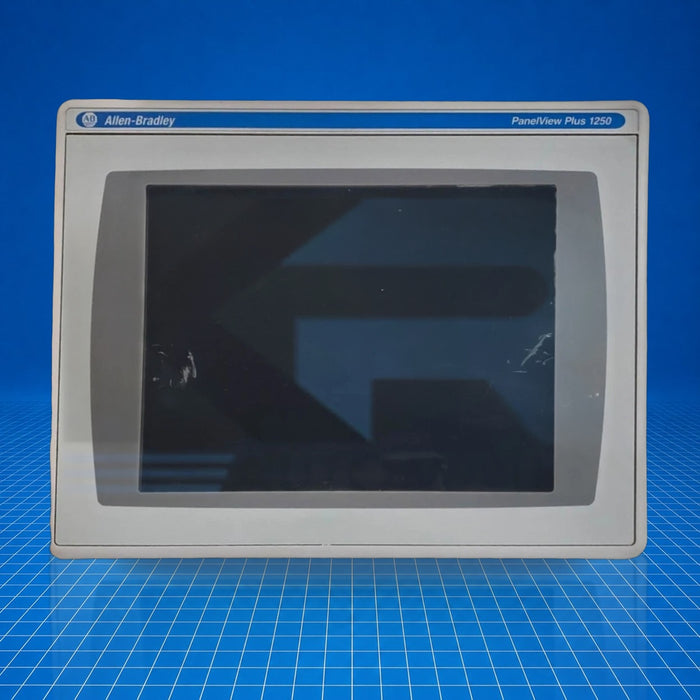

The 2711P-T12C4D6 is an Allen-Bradley PanelView Plus 6 operator interface terminal from the 1250-size family. As a 12.1-inch color touchscreen HMI running Windows CE 6.0, it provides graphical operator control and real-time monitoring on the plant floor. It serves as the human-machine interface between operators and industrial automation systems, commonly deployed on machine control panels, packaging lines, and mid-range process control systems.
Best Suited For
- Machine-mounted operator interface
- Applications requiring Ethernet or RS-232 connectivity
- Retrofit PanelView Plus 6 applications
- On-panel control in packaging or discrete manufacturing
Display size
12.1 in
Resolution
800 × 600, 18-bit color
Memory
512 MB RAM; 512 MB nonvolatile (≈ 79 MB user)
Input power
18…32 V DC
Communication
Ethernet and RS-232
Technical Specifications
I/O & Electrical
Input voltage (DC)
18…32 V DC
Power consumption, DC
15 W max (0.6 A @ 24 V DC); 9 W typical (0.375 A @ 24 V DC)
Communication & Power
Communication ports

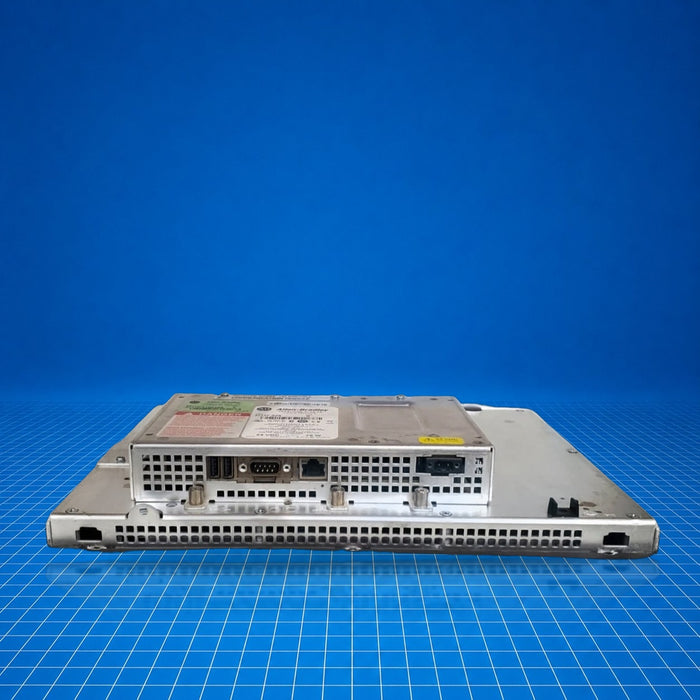

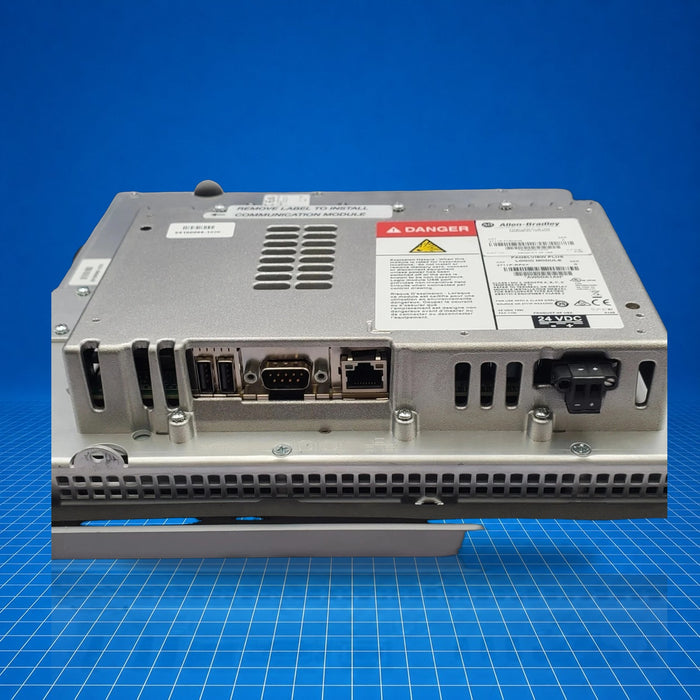

Ethernet (10/100 Mbps, Auto-MDI/MDI-X); RS-232; (2) USB host; optional modules
Operator input
8-wire analog resistive touchscreen; actuation: 1 million presses; operating force: 10…110 g
Physical & Environmental
Display area
246 × 184 mm (9.7 × 7.2 in)
Dimensions (built-in depth)
55 mm depth; front: 363 × 282 mm
Weight, approx
3.03 kg (6.69 lb)
Operating temperature
0 °C to ? (only lower bound available)
Enclosure rating
NEMA Type 12, 13, 4X (indoor); IP54, IP65 front
Heat dissipation
240 BTU/hr
Certifications
cULusCE
cULus Listed for Class I, Division 2, Groups A, B, C, D; Class II, Division 2, Groups F, G; Class III; CE (EMC) compliant to EN 61000-6-2
