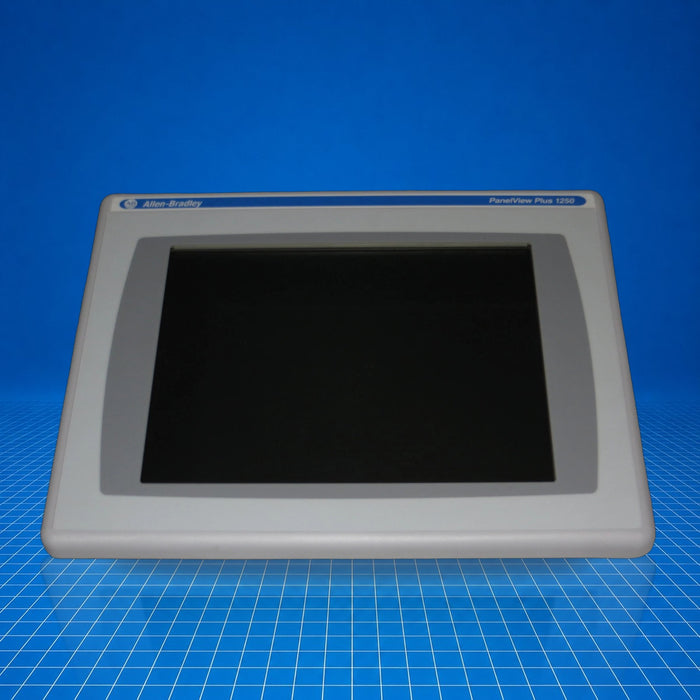

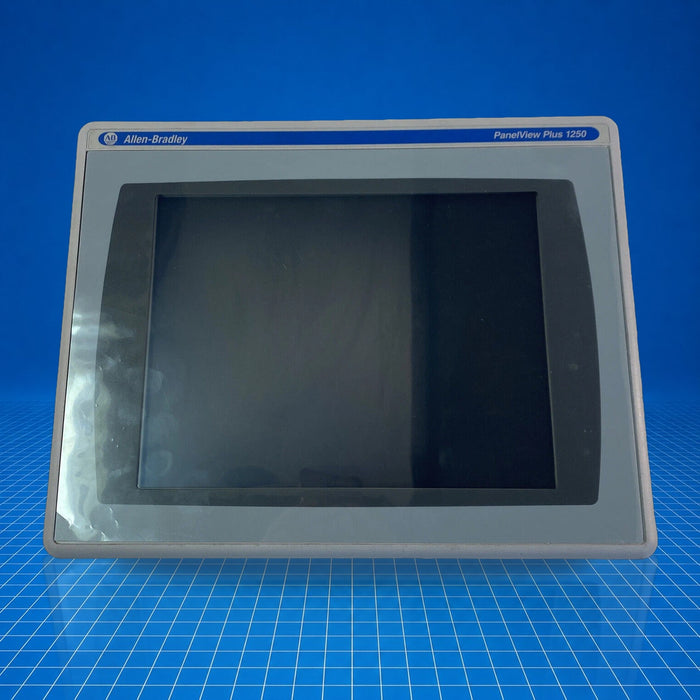

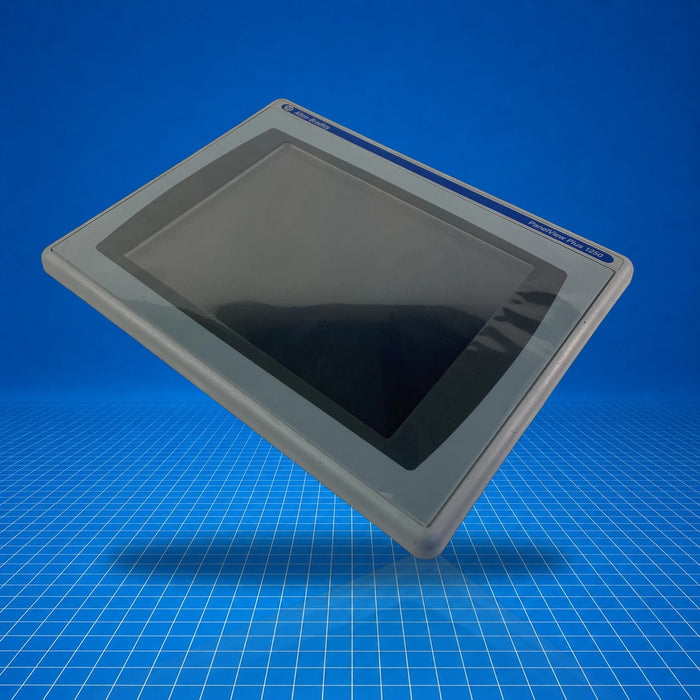

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2711P-T12C4D7 Allen-Bradley
Original price
$0.00
-
Original price
$3,058.20
Original price
$3,058.20
$0.00
-
$3,058.20
Current price
$3,058.20
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

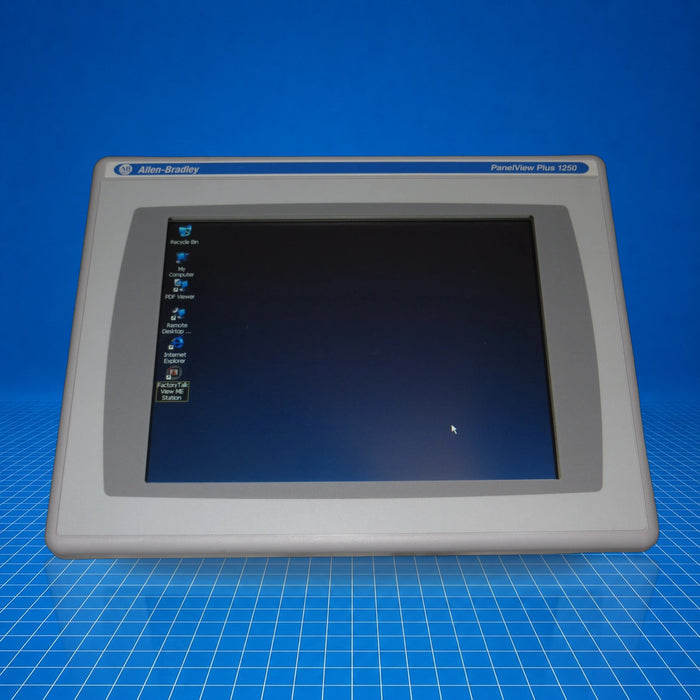

The 2711P-T12C4D7 is a PanelView Plus 6 operator interface terminal from Allen-Bradley. Designed for HMI applications, it provides a 12.1-inch color TFT display with resistive touch and supports Windows CE 6.0. Acting as the human-machine interface in control systems, it facilitates operator monitoring and control in machine-level applications such as packaging, material handling, and process monitoring. It integrates display, memory, power and communication interfaces in a touch panel form factor.
Best Suited For
- Machine-level operator monitoring and control
- Applications requiring 800 × 600 color graphics display
- Environments requiring NEMA 4X/IP65 front protection
- Retrofitting PanelView Plus systems
Display size × resolution
12.1 in, 800 × 600
Memory
512 MB RAM, 512 MB non-volatile (≈79 MB user)
Front protection
NEMA 4X, IP65
Power consumption (max)
70 W
Technical Specifications
I/O & Electrical
Input voltage
24 V DC nominal
Communication & Power
Power consumption
70 W max (2.9 A @ 24 V DC), 39 W typical (1.6 A @ 24 V DC)
Communication ports
Ethernet (10/100 Mbps Auto-MDI/X), RS-232, 2×USB host, optional modules (EtherNet/IP, DH+/DH-485, ControlNet)
Physical & Environmental
Operating temperature
0 °C
Non-operating temperature
-25 °C
Relative humidity
5…95% non-condensing
Shock
Operating 15 G @ 11 ms
Vibration
10-57 Hz 0.012 ppd; 57-500 Hz 2 G
Altitude (operating)
2000 m
Dimensions (H × W × D)
282 × 363 × 55 mm
Cutout dimensions
257 × 338 mm (10.11 × 13.29 in)
Weight
≈ 3.2 kg
Certifications
UKCA
Refer to product label for current certifications; as of 2025-09-10, UKCA DOC mentioned.
