Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

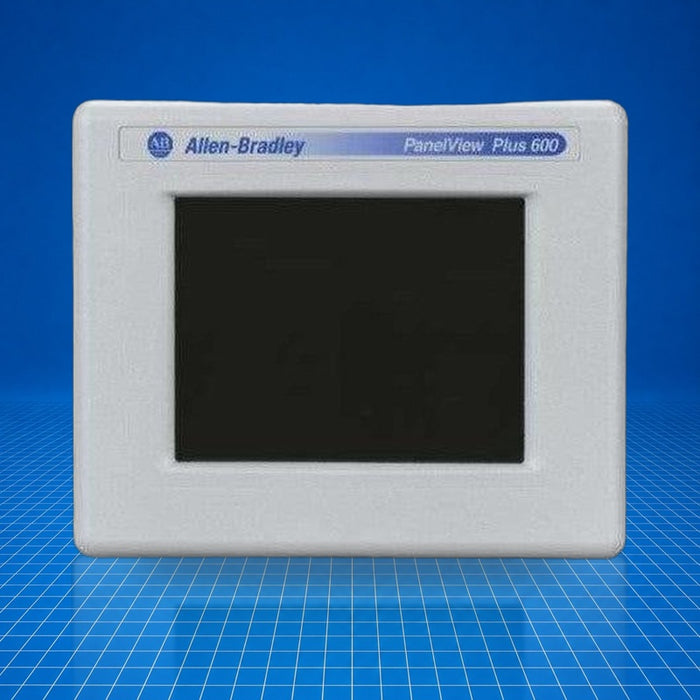

The Allen-Bradley 2711P-T6C5D is a PanelView Plus 600 series graphic operator terminal that serves as a human-machine interface (HMI) in control systems. It provides color touch input via a resistive touchscreen and runs Windows CE 6.0 with extended features, enabling operator interaction, recipe entry, message display, and file viewing. The terminal connects to host systems via RS-232 and USB ports and accepts a DC supply (18-30 V DC). The 2711P-T6C5D is often used in machine-level operator panels, legacy migration applications, and environments requiring compact HMI access. Part number repeated: 2711P-T6C5D.
Best Suited For
- Machine-level HMI applications
- Facilities using legacy RS-232 connectivity
- File viewing and recipe entry on PanelView Plus 600
- Installation with 24 V DC power systems
Display size
5.7 in.
Resolution
320 × 240 (18-bit color)
Power input
18-30 V DC
Comm ports
RS-232, 1 USB host, 1 USB device
Technical Specifications
I/O & Electrical
Input voltage
18…30 V DC
Power consumption (max)
15 W (0.6 A @ 24 V DC); typical 9 W (0.375 A @ 24 V DC)
Memory (Series A/B)
Series A: 5 MB; Series B: 10 MB (based on distributor data)
Communication & Power
Communication ports

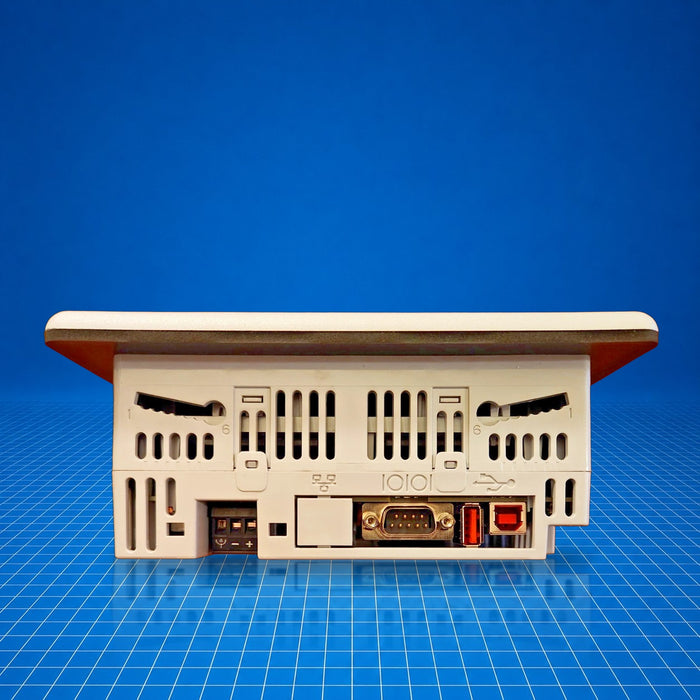

RS-232; 1 USB host; 1 USB device
USB use
Host for peripherals; device for PC connectivity
Protocols supported
TCP/IP (EtherNet optional); no Eth-Net built-in
Physical & Environmental
Display type
Color active matrix TFT, resistive touchscreen
Display resolution
320 × 240, 18-bit color graphics
Display area
115 × 86 mm
Backlight
White LED, non-replaceable, 25 000 h min @ 25 °C
Operating system
Windows CE 6.0 with extended features/file viewers
Battery (RTC)
Field-replaceable CR2032, ≥ 4 yr @ 25 °C
Dimensions (H × W × D)
152 × 185 × 98 mm
Panel-cutout
123 × 156 mm
Weight
≈ 594 g
