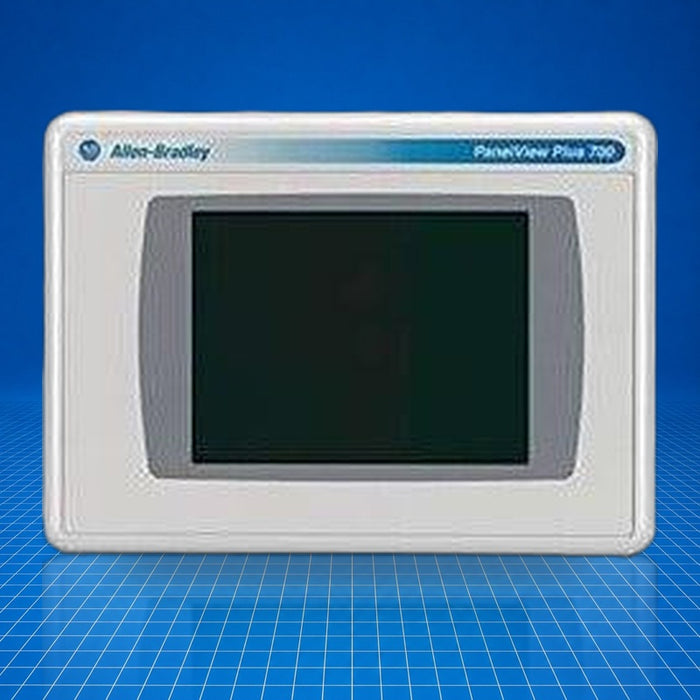

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2711P-T7C4A8 Allen-Bradley
Original price
$1,872.50
-
Original price
$4,412.78
Original price
$1,872.50
$1,872.50
-
$4,412.78
Current price
$1,872.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

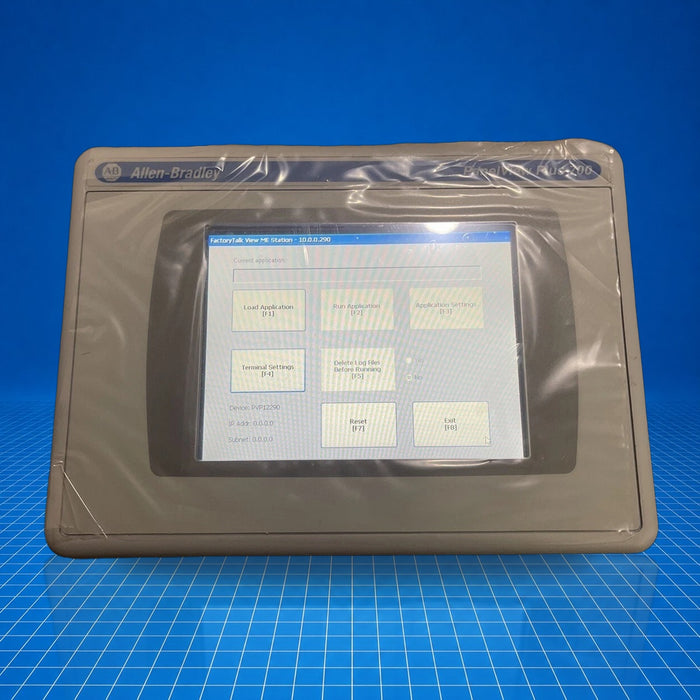

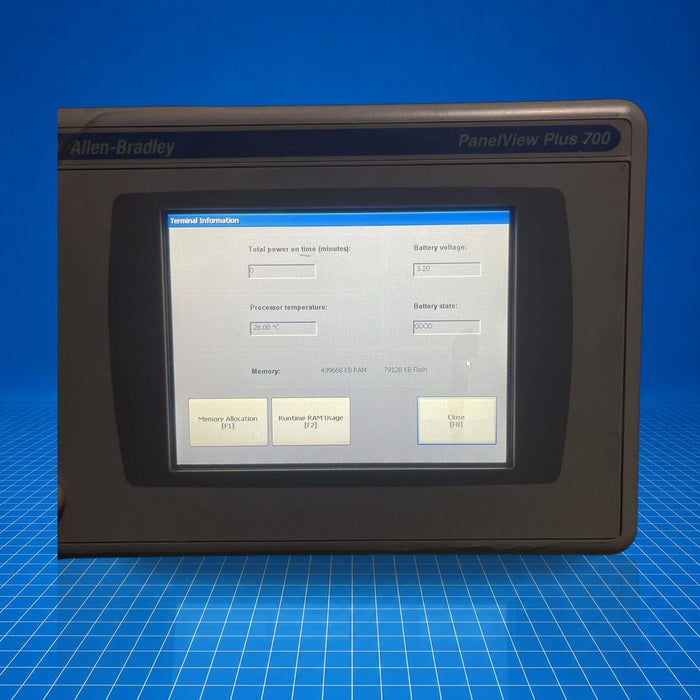

The Allen-Bradley 2711P-T7C4A8 is a PanelView Plus 6 graphic operator terminal featuring a 6.5-inch color resistive-touch display and standard Ethernet and RS-232 communication. It runs Windows CE 6.0 software with FactoryTalk View Machine Edition preloaded and serves as a human-machine interface for operator monitoring and control in industrial environments. The terminal supports AC power input and is used in applications such as machine operator panels, process control monitoring, and recipe-based systems. Part number 2711P-T7C4A8, once current in the PanelView Plus 6 family, is now discontinued.
Best Suited For
- Operator interface in machine control panels
- Process monitoring with Ethernet and serial networks
- Recipe or batch selection systems
- Applications requiring hot-swappable SD or USB data transfer
Display size & resolution
6.5 in, 640 × 480, 18-bit color
Memory
512 MB RAM; 512 MB non-volatile (~79 MB user)
Communication ports
1 Ethernet, 1 RS-232, 2 USB host
Power input
100…240 V AC, 50…60 Hz
Touchscreen lifespan
8-wire resistive, 1 million presses
Technical Specifications
I/O & Electrical
Input voltage
100…240 V AC @ 50…60 Hz
Power consumption (AC)
160 VA max; 65 VA typical
Memory (RAM)
512 MB
Memory (non-volatile)
512 MB (~79 MB free user memory)
Communication & Power
Ethernet
10/100 Mbps, Auto-MDI/MDI-X
RS-232
1 port (supports RS-232, DH+/DH-485 via module)
USB
2 host ports, hot-swappable
Physical & Environmental
Display resolution
640 × 480, 18-bit color graphics
Luminance
300 cd/m²
Touch technology
8-wire analog resistive, 1 million presses, 10…110 g
Backlight type & life
CCFL, 50 000 h min at 25 °C, field-replaceable
Real-time clock battery
CR2032, 4 year min at 25 °C, field-replaceable
Enclosure protection
NEMA 4X, 12, 13 (front); IP65 front
Operating temp
0 °C to (not stated)
Non-operating temp
-25 °C
Shock
Operating 15 G @ 11 ms; Non-operating 30 G @ 11 ms
Vibration
10-57 Hz, 0.012 mm pk-pk; 57-500 Hz, 2 G pk
Relative humidity
5…95 % non-condensing
Altitude, operating
≤2000 m
Dimensions (H × W × D)
179 × 246 × 55 mm
Panel cut-out (H × W)
154 × 220 mm
Weight
1.7 kg
Certifications
NEMA 4X frontNEMA 12NEMA 13IP65 front
