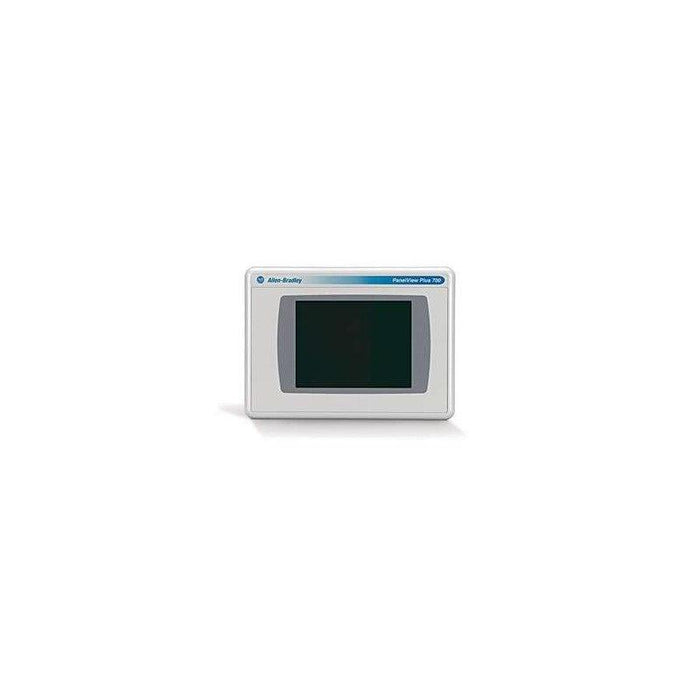

2711P-T7C4D8 Allen-Bradley
Original price
$1,100.00
-
Original price
$3,240.00
Original price
$1,100.00
$1,100.00
-
$3,240.00
Current price
$1,100.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

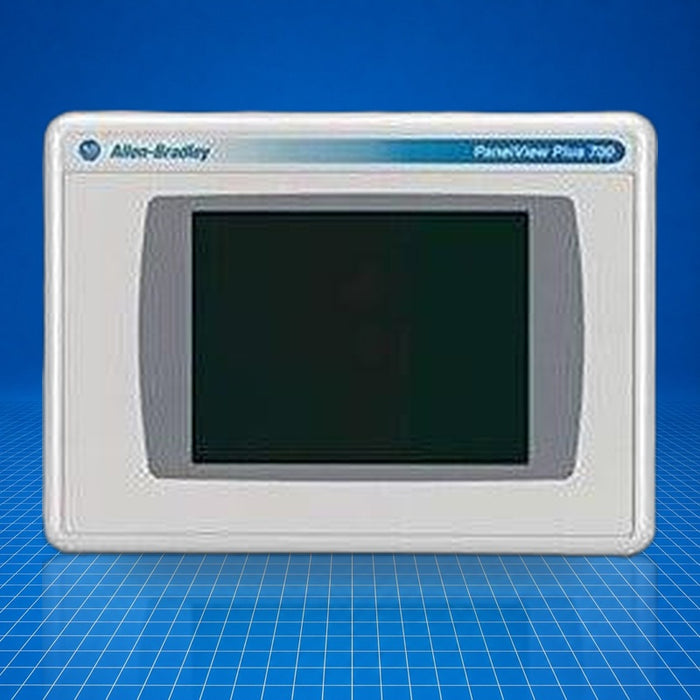

The 2711P-T7C4D8 is an Allen-Bradley PanelView Plus 6, 700-series operator terminal used in industrial control systems to provide graphical human-machine interface (HMI) functionality. It combines a 6.5-inch color TFT touchscreen with integrated logic and communications to enable operator control and process visualization in applications such as machine control panels, process monitoring stations, and OEM equipment interfaces. 2711P-T7C4D8 integrates into control systems via Ethernet and RS-232 links and is powered from a DC bus, facilitating installation alongside other DC devices.
Best Suited For
- Machine control panels using PanelView Plus 6 platform
- Process operator stations requiring small-screen HMI
- OEM machinery HMI integration
- Environments where DC-bus power sources are available
Display Size
6.5 in
Resolution
640 × 480, 18-bit color
Memory (RAM/Flash)
512 MB / 512 MB
Power Consumption (max/typical)
70 W max (2.9 A @ 24 V), 39 W typical (1.6 A @ 24 V)
Protection (front)
NEMA 4X, 12, 13; IP54, IP65
Technical Specifications
I/O & Electrical
Input voltage
18…32 V DC (24 V DC nominal)
Power consumption
70 W max, 39 W typical
Communication ports
1 × Ethernet (10/100 Base-T), 1 × RS-232, 2 × USB host
Function keys
22 programmable (F1…F10, K1…K12)
Communication & Power
Touch technology
8-wire analog resistive; actuation 1 M presses; force 10…110 g
EtherNet/IP support
Yes
Data-Highway protocol
Yes
Physical & Environmental
Operating temperature
0 °C to unspecified upper limit (0 °C min)
Non-operating temperature
-25 °C
Relative humidity
5…95 % non-condensing
Shock (operating/non-operating)
15 G @ 11 ms / 30 G @ 11 ms
Vibration
10…57 Hz, 0.012 in p-p; 57…500 Hz, 2 G peak
Protection (front)
NEMA 4X, 12, 13; IP54, IP65
Dimensions (H×W×D)
179 × 246 × 55 mm (cutout 154 × 220 mm)
Weight
1.7 kg
Certifications
UL ListedcULusCE
