2711P-T7C6D1 Allen-Bradley
Original price
$1,629.10
-
Original price
$4,623.98
Original price
$1,629.10
$1,629.10
-
$4,623.98
Current price
$1,629.10
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

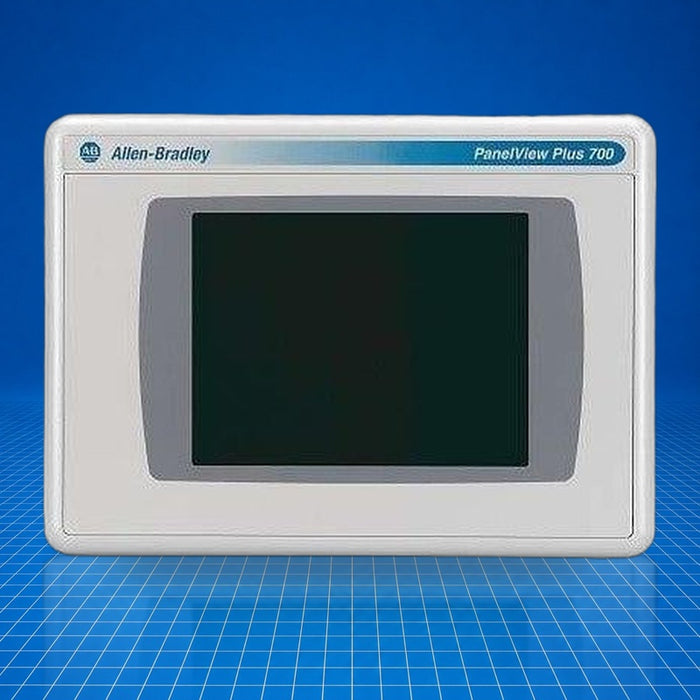

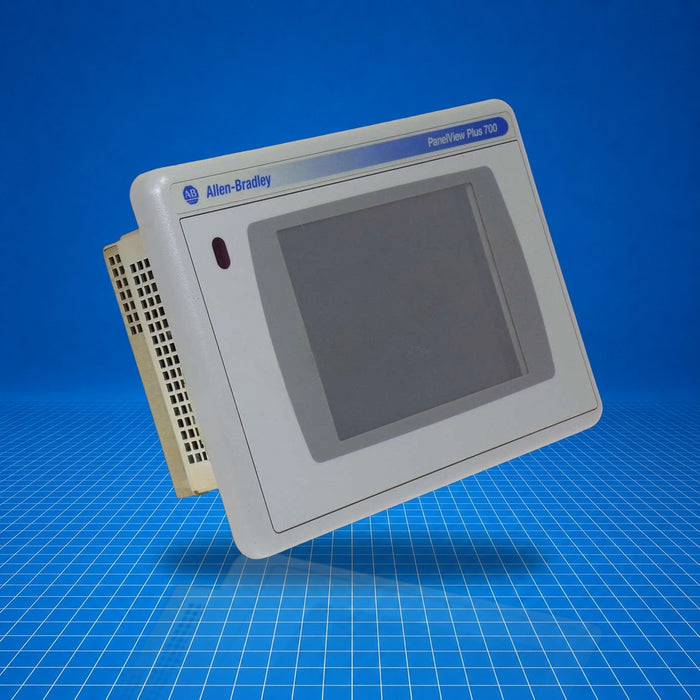

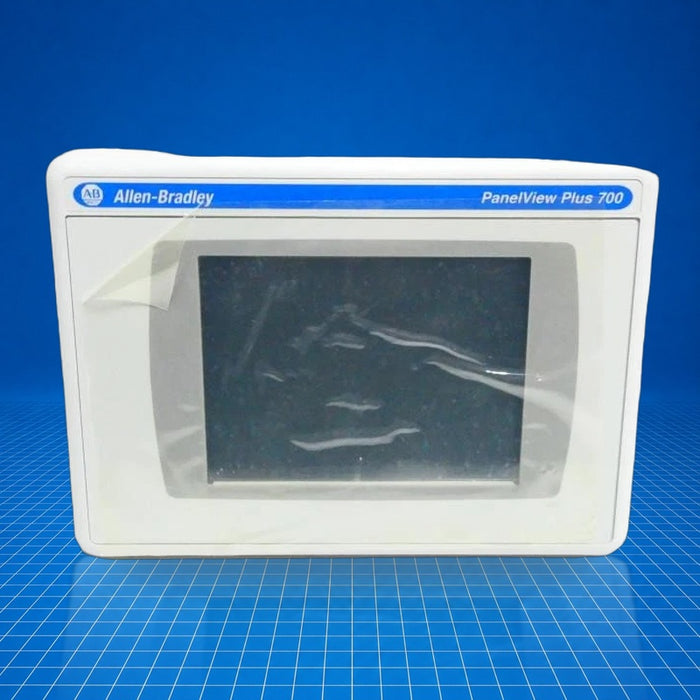

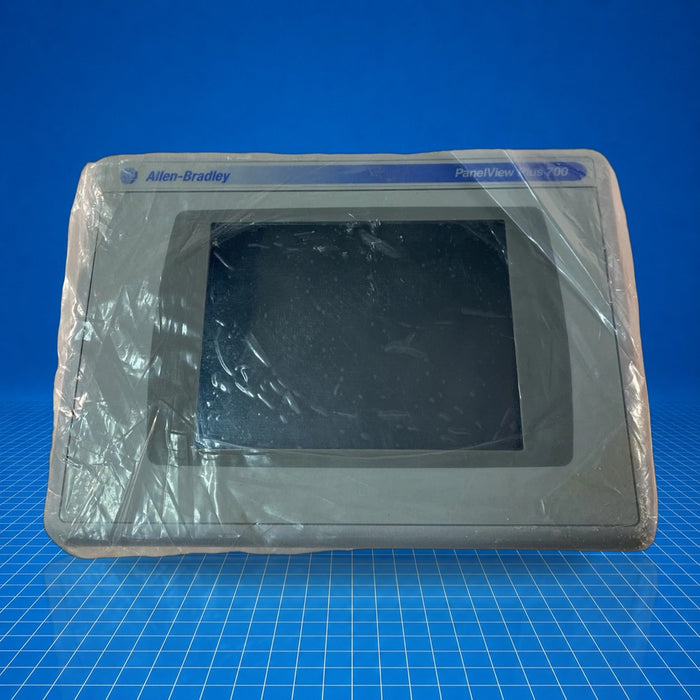

The 2711P-T7C6D1 is an Allen-Bradley PanelView Plus 700 graphic operator terminal. It provides a human-machine interface using a 6.5-inch color active-matrix TFT display with analog resistive touchscreen and integrated logic module. Typical roles include operator interaction, display of process data and alarms, and configuration in legacy control systems using DH+ or DH-485 communication. The part number 2711P-T7C6D1 belongs to the PanelView Plus 700 family, often deployed in mid-level industrial control applications requiring local monitoring and control.
Best Suited For
- Operator interface on legacy PLC5 or SLC 500 systems
- Mid-level process monitoring and alarm display
- Retrofit projects replacing obsolete PanelView models
- Sites requiring resistive touchscreen input
Display size
6.5-in.
Resolution
640 × 480
Memory (RAM / non-volatile)
64 MB / 64 MB
Input voltage range
18-32 V DC
Technical Specifications
I/O & Electrical
Input voltage
18-32 V DC
Power consumption
70 W max (2.9 A @ 24 V DC); 39 W typical (1.6 A @ 24 V DC)
Communication & Power
Communication ports
DH+ / DH-485, RS-232, 2 × USB host
Physical & Environmental
Display type
6.5-in. active-matrix TFT, color, analog resistive touchscreen
Operating temperature
0 - 55 °C (32 - 131 °F)
Weight
5.00 lbs (2.27 kg)
Mounting / enclosure rating
NEMA 12, 13, 4X (indoor), IP54, IP65
Touchscreen lifespan / force
1 million presses; 10 - 110 g
