Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

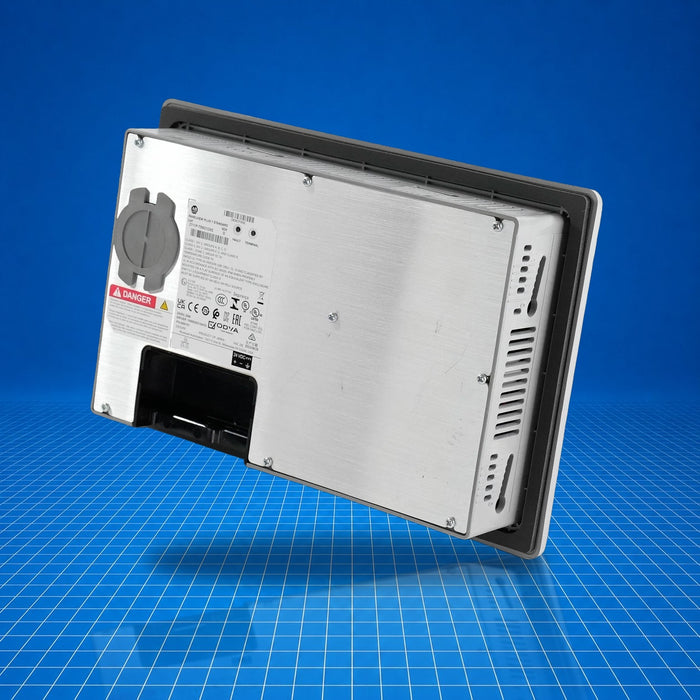

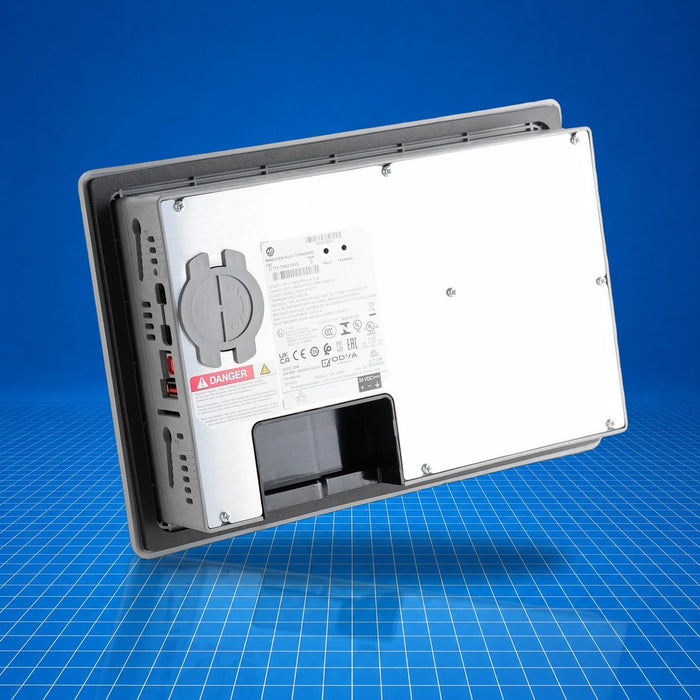

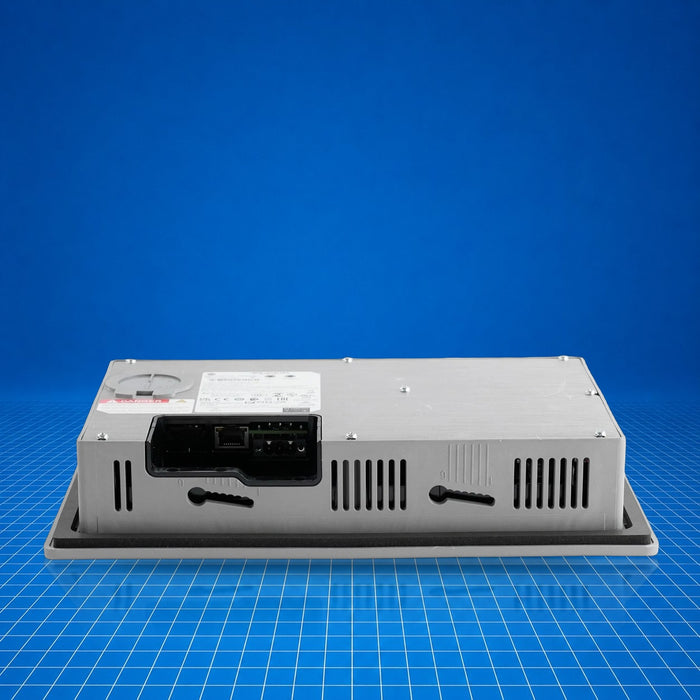

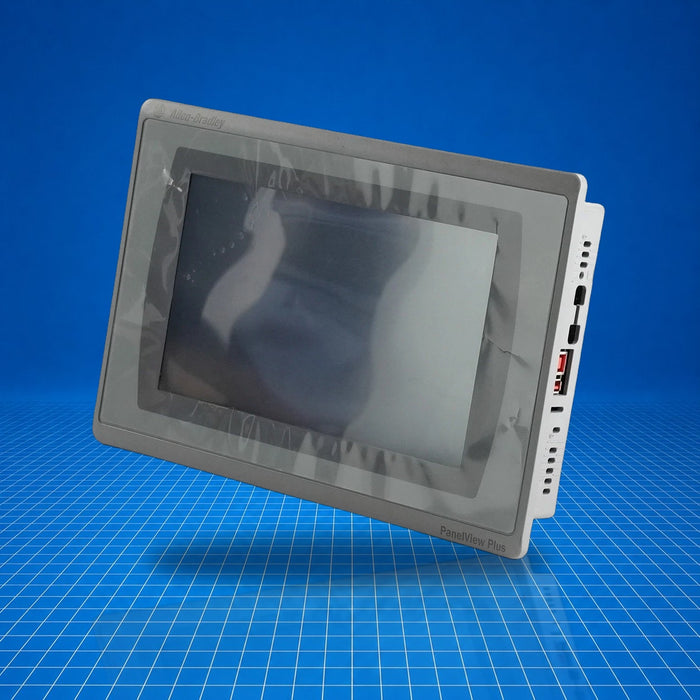

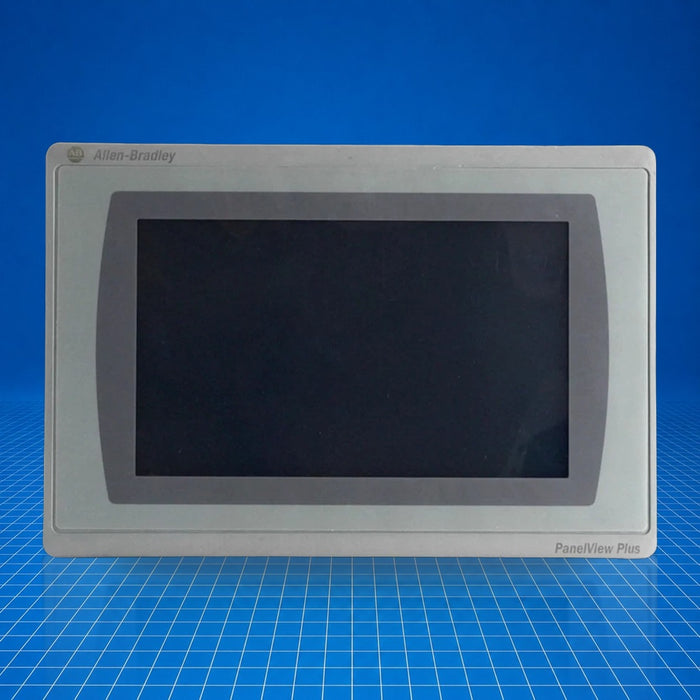

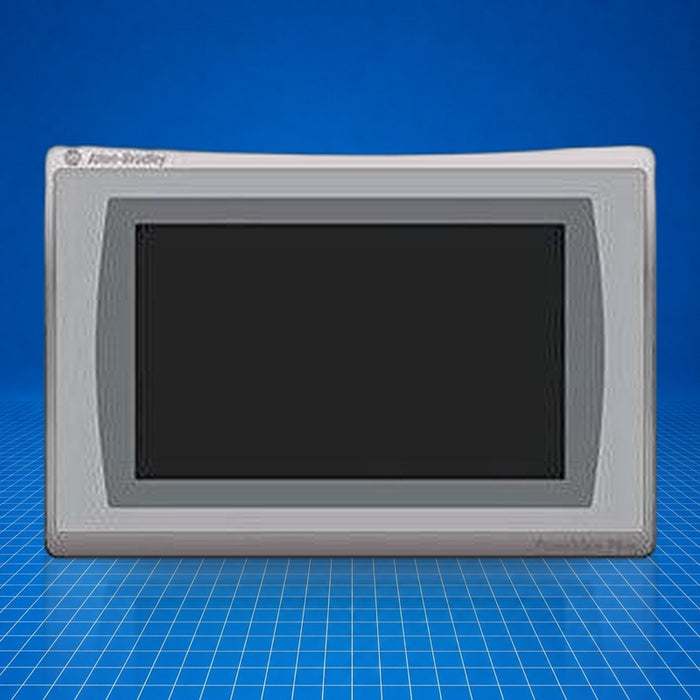

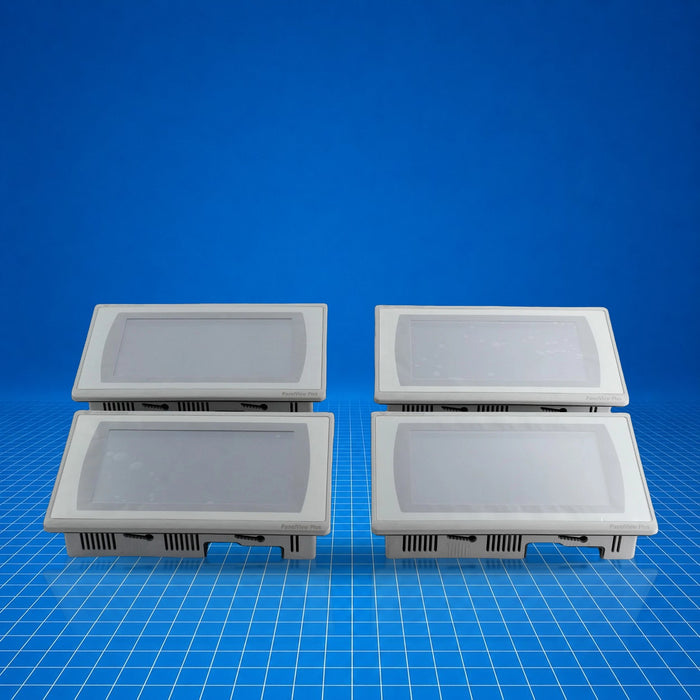

The 2711P-T9W21D8S is an Allen-Bradley PanelView Plus 7 Standard operator interface terminal. It provides a 9-inch widescreen color display with touchscreen input and a single embedded Ethernet port, designed for use in industrial human-machine interface applications. It integrates with Rockwell Automation control systems, typically deployed on machine panels or control enclosures for status display, parameter entry, and alarm monitoring. 2711P-T9W21D8S enables real-time interaction in manufacturing, packaging, material handling, and process environments.
Best Suited For
- Panel-mount HMI for compact machine control
- Wide-aspect operator panels in manufacturing lines
- Single-Ethernet networked control systems
- Integration with Rockwell PLCs via VNC or Ethernet
Display size
9.0 in.
Resolution
800 × 480 pixels
Memory (RAM / storage)
512 MB / 512 MB (≈ 80 MB user)
Power input
18-30 V DC
Communication ports
1 Ethernet, 2 USB
Technical Specifications
I/O & Electrical
Input voltage
18-30 V DC
Power dissipation
20 W
Communication & Power
Ethernet ports
1 embedded Ethernet
USB ports
2 USB
Physical & Environmental
Display type
WVGA TFT color, 18-bit
Backlight
CCFL, 50 000 h life, min
Operating temperature
0…55 °C (32…131 °F)
Non-operating temperature
-25…70 °C (-13…158 °F)
Heat dissipation
20 W
Enclosure rating
Type 12, 13, 4X (indoor only), IP54 or IP66
Dimensions (H × W × Depth)
190 × 280 × 56.5 mm
Panel cutout (H × W)
162 × 252 mm
Weight
3.0 lb (1.36 kg)
Certifications
NEMA 12NEMA 13NEMA 4XIP54IP66
